2~2.2GHz, Peak value 20000W, average 2000WW, 10way, 0°, L29
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 2.2 | GHz |
| IL | 0.45 | dB | ||
| Isolation | 9 | dB | ||
| Common port VSWR | 1.3 | |||
| Branching port VSWR | Not have | |||
| Amplitude balance | 0.3 | dB | ||
| Phase balance | 4 | ° |
| Power Capacity | Peak value 20000W, average 2000W |
| X-Way | 10 Way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | L29-F |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |

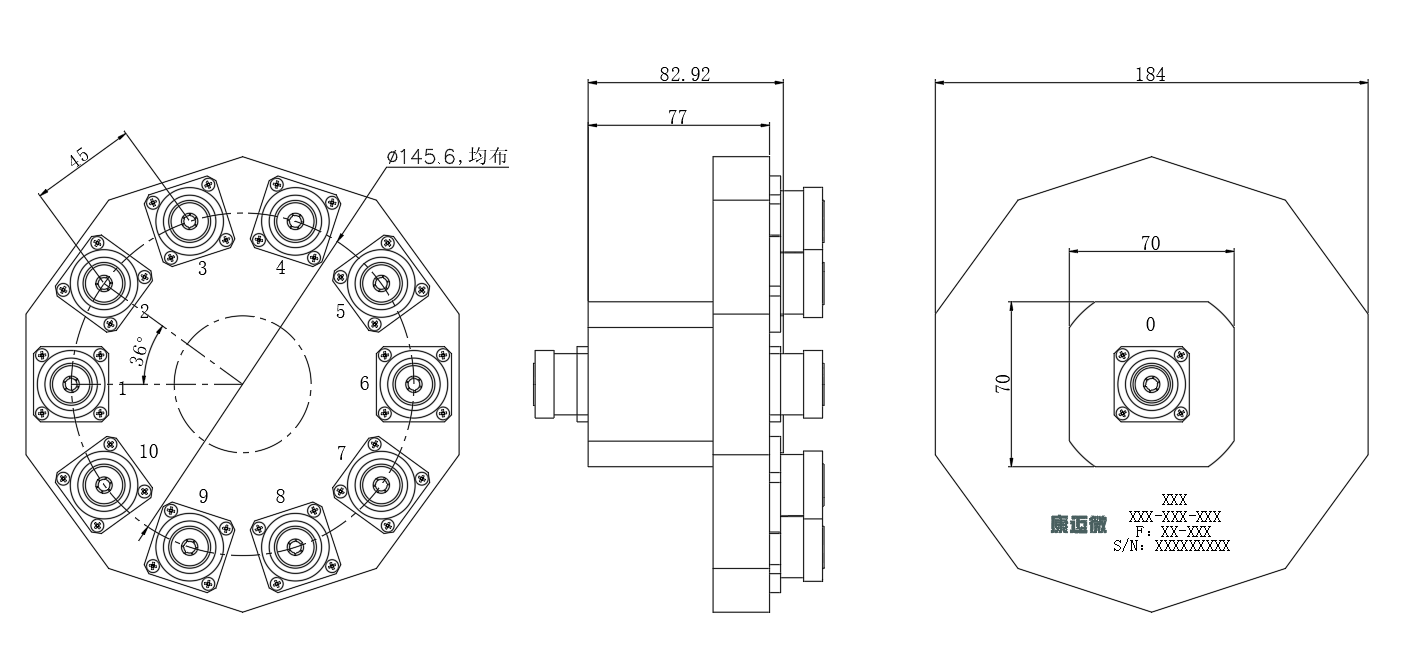

| Other | 外形尺寸为大概尺寸 |
| Common port | 0 |
| Dispatch Port | 1~10 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
