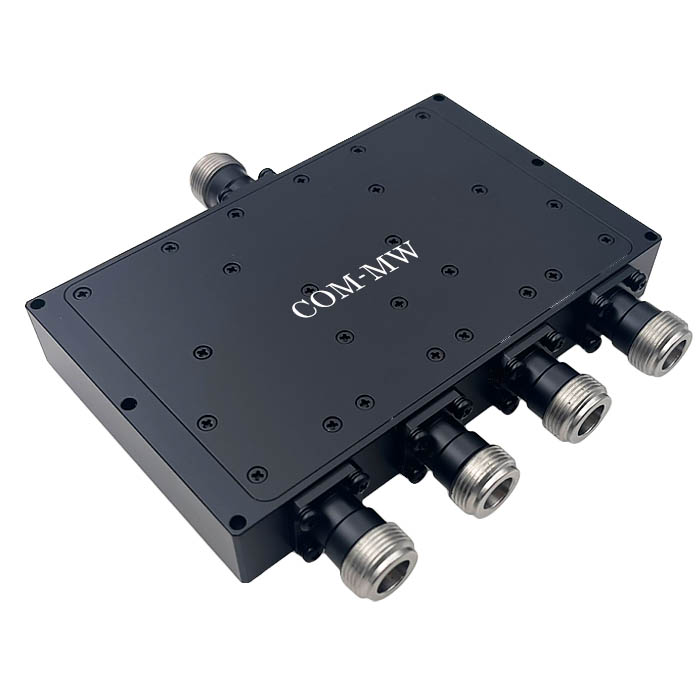

3.5~6.5GHz, 10W, 4way, Phase0°, N,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 3.5 | ~ | 6.5 | GHz |
| IL | 1.5 | dB | ||
| Isolation | 15 | dB | ||
| VSWR | 1.5 | |||
| Amplitude balance | ±0.4 | dB | ||
| Phase balance | ±5 | ° |
| Power | 10W Design assurance |
| way | 4-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | N-K |
| Surface | Black baking paint |
| Product shell material | Aluminium |
| Work Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | Excluding allocation loss 6dB |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
