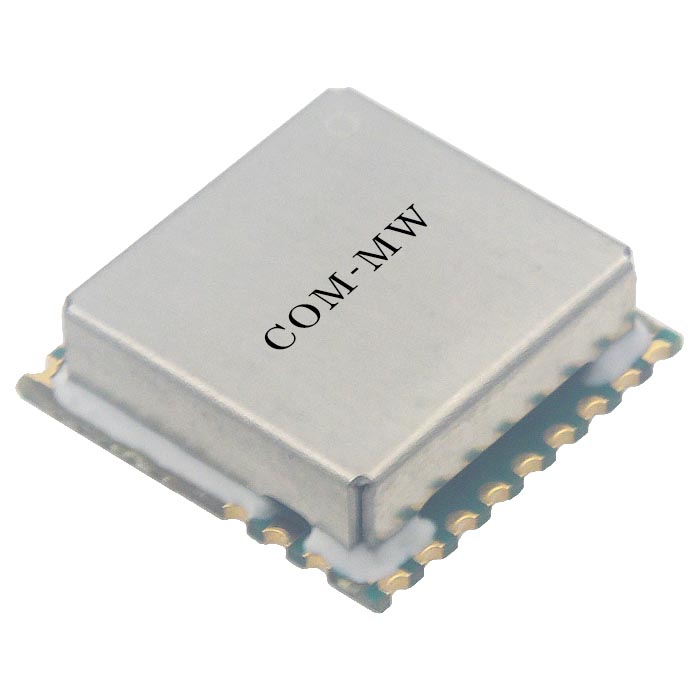

108~512MHz, 10W, fiveway, Phase0°, SMD,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 108 | ~ | 512 | MHz |
| IL | 0.8 | 1.0 | dB | |
| 隔离度1@108-256MHz | 25 | 30 | dB | |
| 隔离度2@256-512MHz | 20 | 25 | dB | |
| Input VSWR | 1.25 | 1.30 | ||
| Output VSWR | 1.25 | 1.30 | ||
| Amplitude balance | ±0.3 | ±0.5 | dB | |
| Phase balance | ±3 | ±6 | ° |
| Power Capacity | 10W Design assurance |
| X-Way | 五路 |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMD |
| Operation Temp. | -55~+85℃ |
| Storage Temp. | -55~+125℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 260 ℃ reflow soldering. |
