DC~1000MHz, Divider ratio1:8, 1W, 2way, BNC-F, Industrial grade
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 1000 | MHz |
| IL | 21 | dB | ||
| Divider ratio | 1:8 | |||
| Input VSWR | 2 |
| Power | 1W Design assurance |
| way | 2-way |
| Impedance | 50Ω |
| Connector | BNC-F |
| Product shell material | Aluminium |
| Work Temp. | -10~+50℃ Design assurance |
| Storage Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |

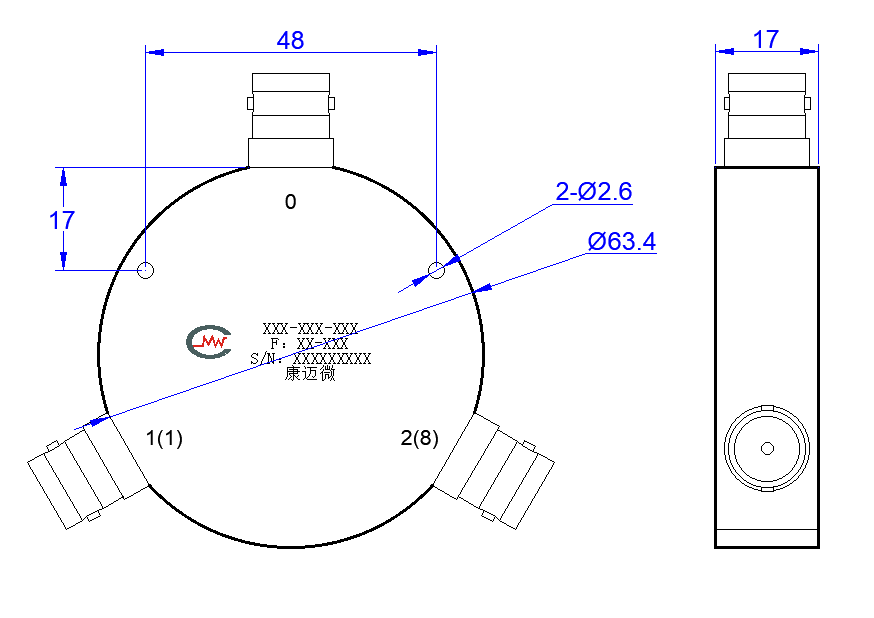

| Common port | 0 |
| Divider ratio 1 | 1 |
| Divider ratio 8 | 2 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
