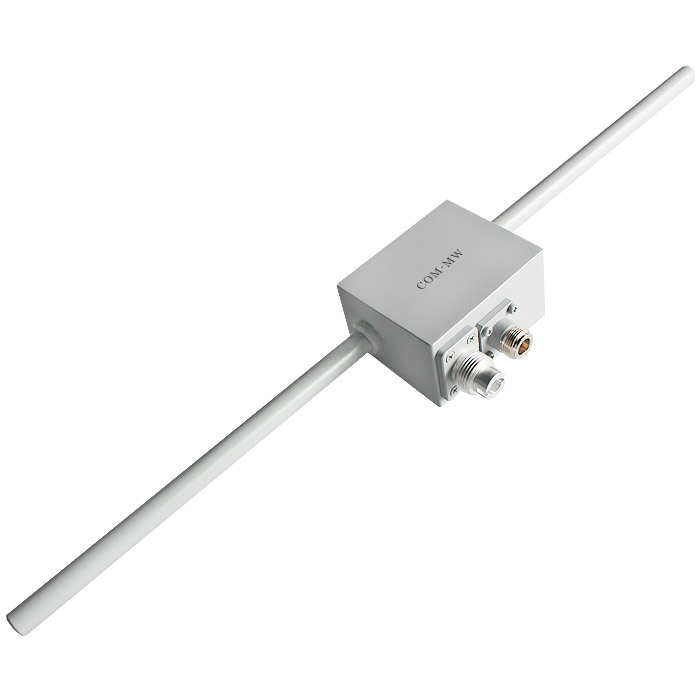

Frequency30~600MHz, Gain-10dBi, Vertical polarization, N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Omnidirectional antennas, which exhibit horizontal omnidirectional uniform radiation in the horizontal pattern and a beam with a certain width in the vertical pattern. Generally, the smaller the lobe width, the greater the gain. This type of antenna has a simple structure and a wide coverage range.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|

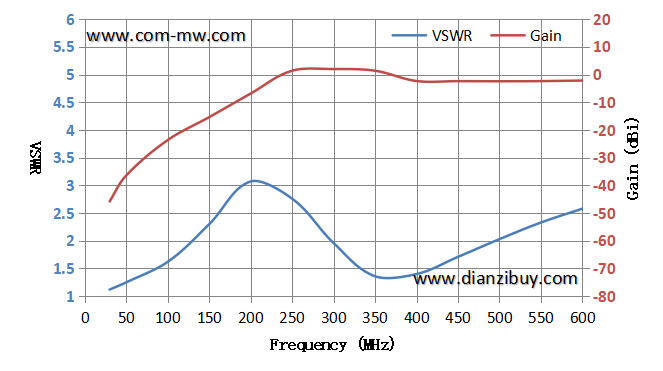

| Frequency | 30 | ~ | 600 | MHz |
| Gain | -10 | dBi | ||
| VSWR | 3.5 |
| Polarization | Vertical polarization |
| Connector | N-K |

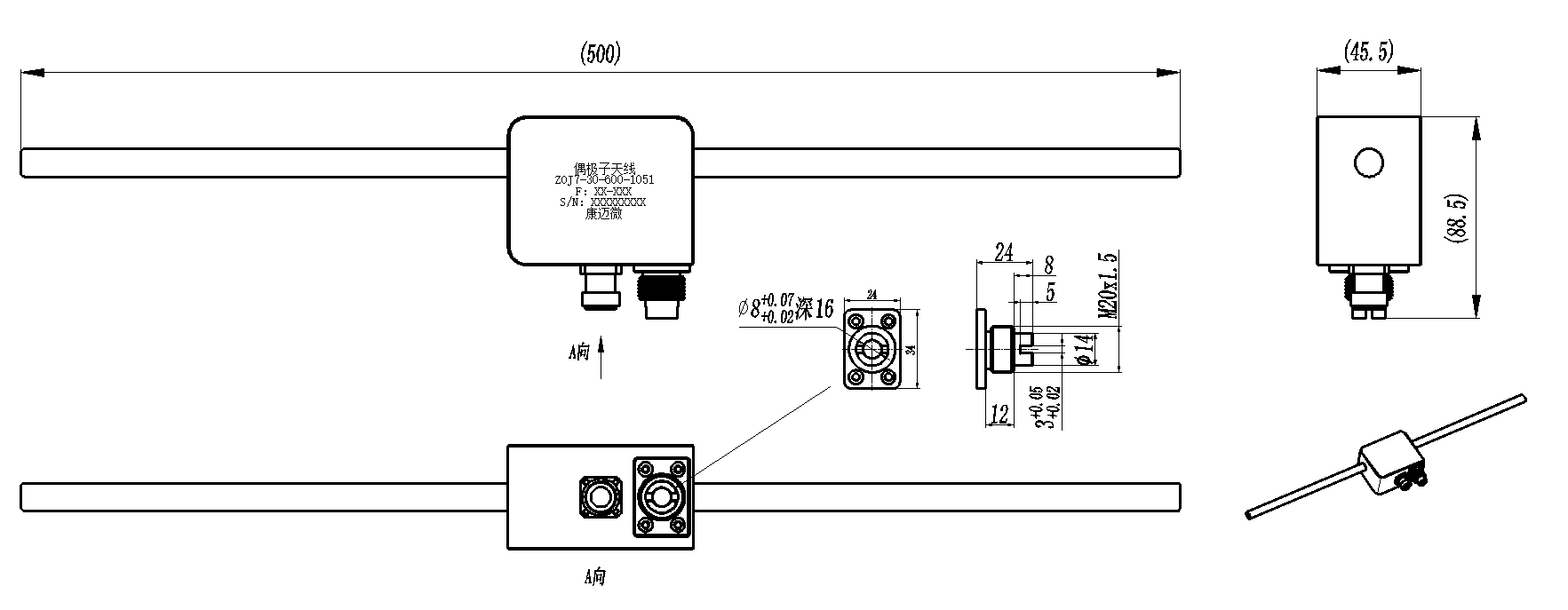

| Outline size | 500*88.5*45.5mm |
| Estimated weight | 400g |
| Surface | Grey |
| Operation Temp. | -25~+45℃ Design assurance |
| Storage Temp. | -25~+55℃ Design assurance |
