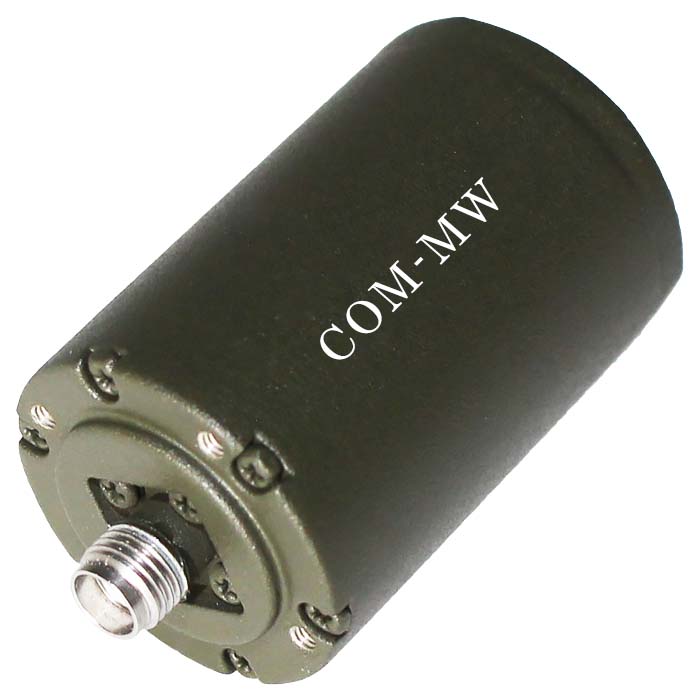

Frequency6~18GHz, Gain1dBi@6-12GHz, Gain2dBi@12-18GHz, Right-handed circular polarization, SMA-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
The planar spiral antenna has the characteristics of ultra bandwidth, low voltage standing wave ratio, stable performance, compact structure, and light weight. Customized right or left circularly polarized planar spiral antennas according to customer requirements.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 6 | ~ | 18 | GHz |
| Gain | 1 | dBi@6-12GHz | ||
| Gain | 2 | dBi@12-18GHz | ||
| VSWR | 2 | |||
| 3dB Beamwidth | 60 | ° | ||
| 6dB Beamwidth | 90 | ° | ||
| Phase | ±15 | ° | ||
| Amplitude Balance | 2 | dB | ||
| AR | 3 | dB |
| Polarization | Right-handed circular polarization |
| Power Capacity | 0.5W Design assurance |
| Connector | SMA-K |

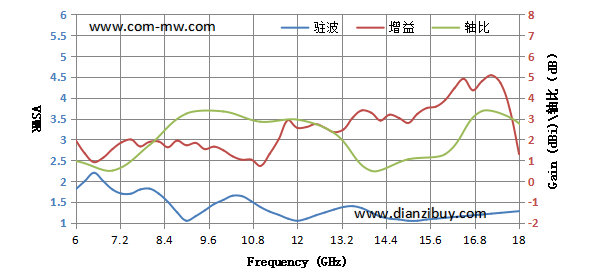

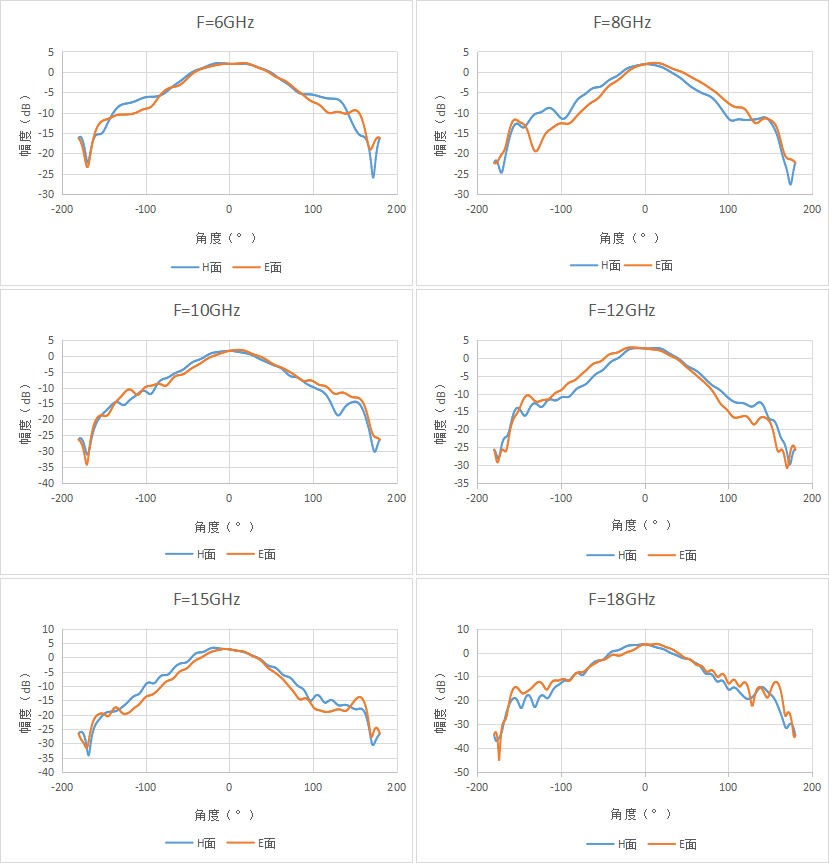

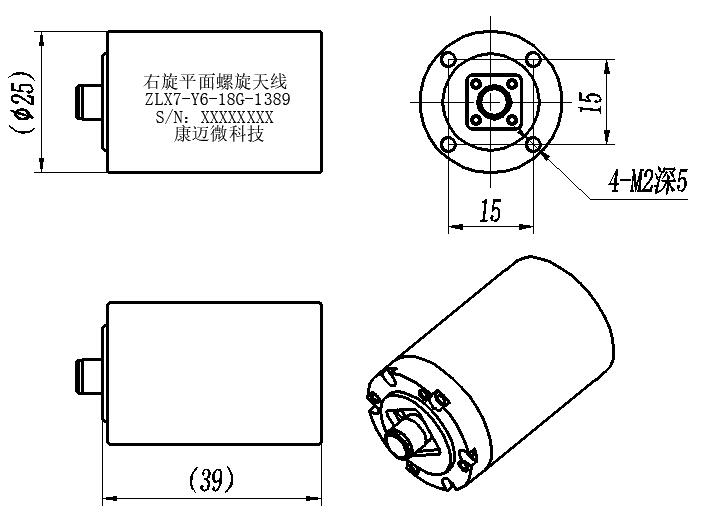

| Outline size | φ25*40mm |
| Estimated weight | 50g |
| Surface | Brown green |
| Operation Temp. | -25~+45℃ Design assurance |
| Storage Temp. | -40~+60℃ Design assurance |
