Frequency2.4~4GHz, Gain12dBi, Right-handed circular polarization, N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

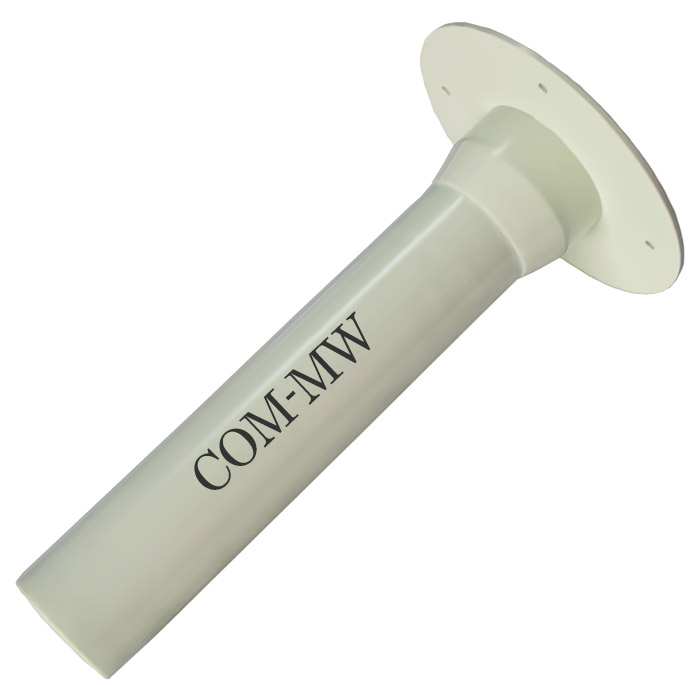

Spiral antennas are mainly used in fields such as communication and interference. The entire working bandwidth has superior impedance matching and radiation direction control performance, with characteristics such as high gain, compact structure, and light weight.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2.4 | ~ | 4 | GHz |
| Gain | 12 | dBi | ||
| VSWR | 1.8 | |||
| 3dB Beamwidth | 25~50 | ° | ||
| F/B ratio | 20 | dB |
| Polarization | Right-handed circular polarization |
| Power Capacity | 200W Design assurance |
| Connector | N -K |

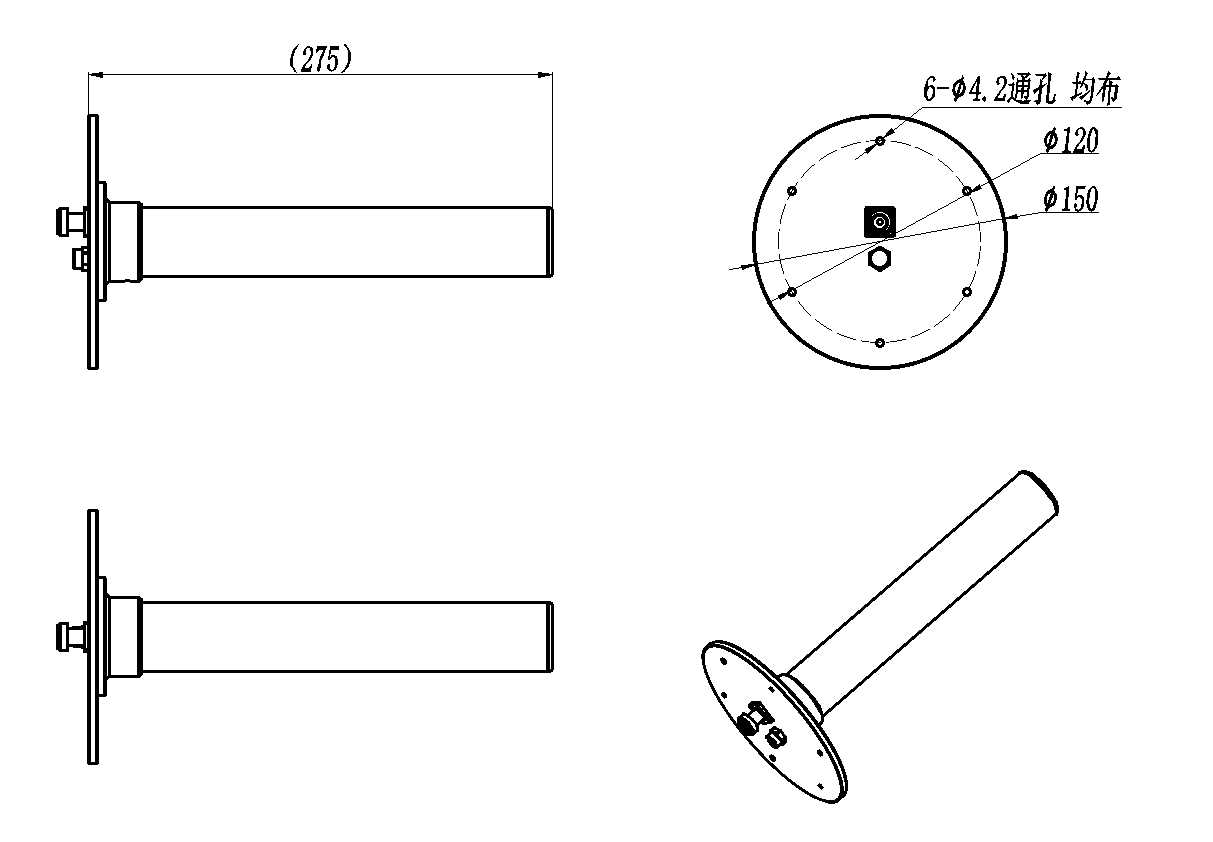

| Outline size | 275*150*150mm |
| Estimated weight | 1Kg |
| Surface | RAL 7035 (light gray) |
| Operation Temp. | -30~+60℃ Design assurance |
| Storage Temp. | -30~+60℃ Design assurance |
| Waterproof grade | IP66 |
1. Non professionals are not allowed to disassemble.
/
