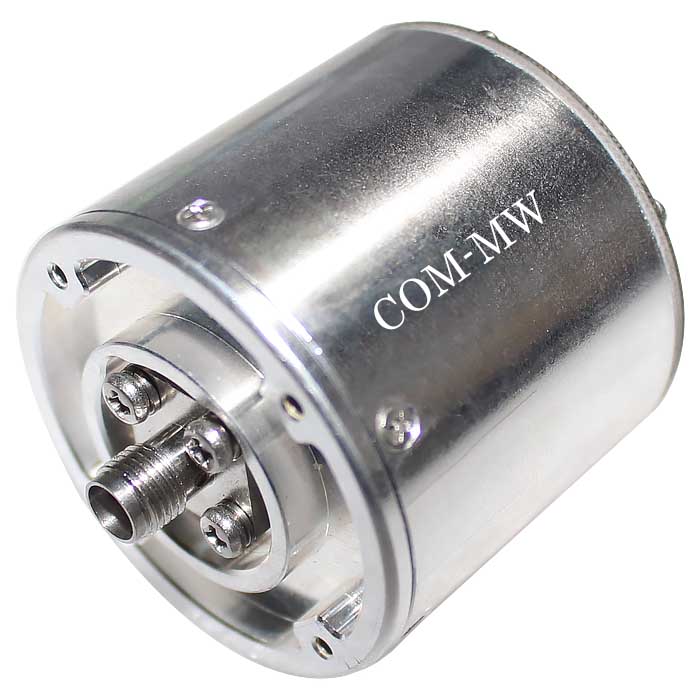

Frequency2~18GHz, Gain0dBi, Right-handed circular polarization, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
The planar spiral antenna has the characteristics of ultra bandwidth, low voltage standing wave ratio, stable performance, compact structure, and light weight. Customized right or left circularly polarized planar spiral antennas according to customer requirements.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 18 | GHz |

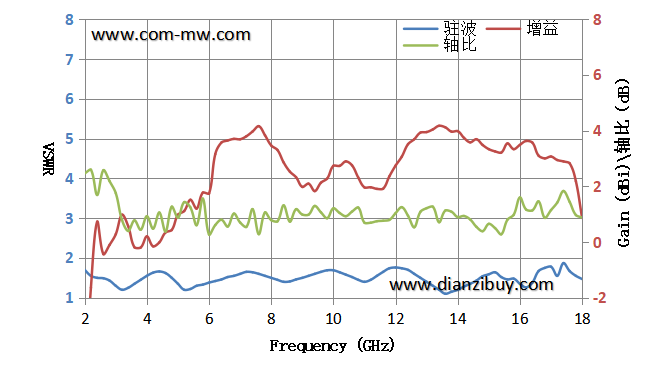

| Gain | 0 | dBi | ||
| VSWR | 2 | |||

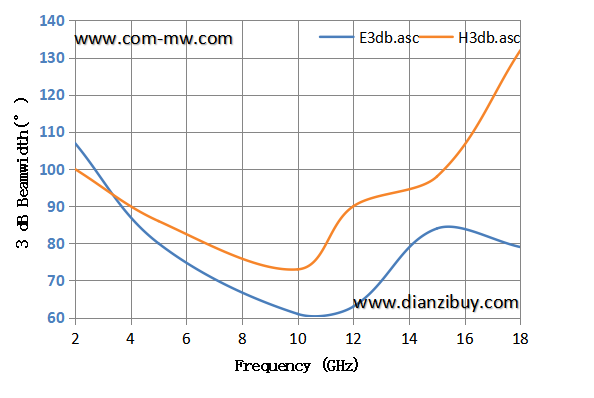

| 3dB Beamwidth | 60 | ° | ||
| AR | 2.5 | dB |
| Polarization | Right-handed circular polarization |
| Connector | SMA-K |

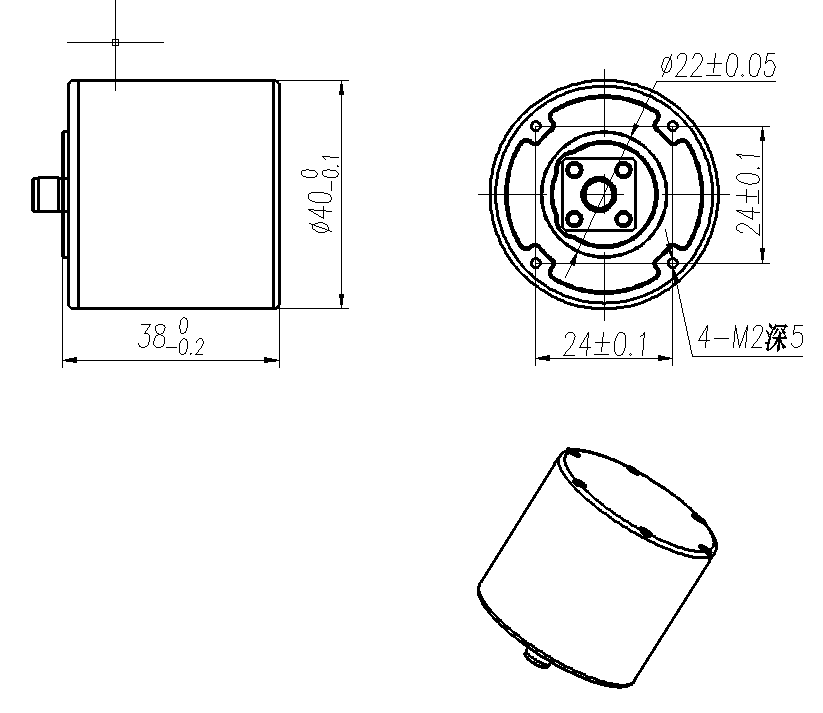

| Outline size | 40 * 38mm without connector |
| Estimated weight | 55g |
| Surface | Grey |
| Operation Temp. | -25~+55℃ Design assurance |
1. Non professionals are not allowed to disassemble.
/
