Frequency1190~1255GHz, Beam gaindBi, Right-handed circular polarization, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1190 | ~ | 1255 | GHz |
| Beam gain | -3 | dBi | ||
| VSWR | 1.8 | |||
| 俯仰波束覆盖 | -85 | ~ | 85 | ° |
| 水平波束覆盖 | 0 | ~ | 360 | ° |
| AR | 3 | dB |
| Polarization | Right-handed circular polarization |
| Power Capacity | 200W Design assurance |
| Connector | N-F or K |

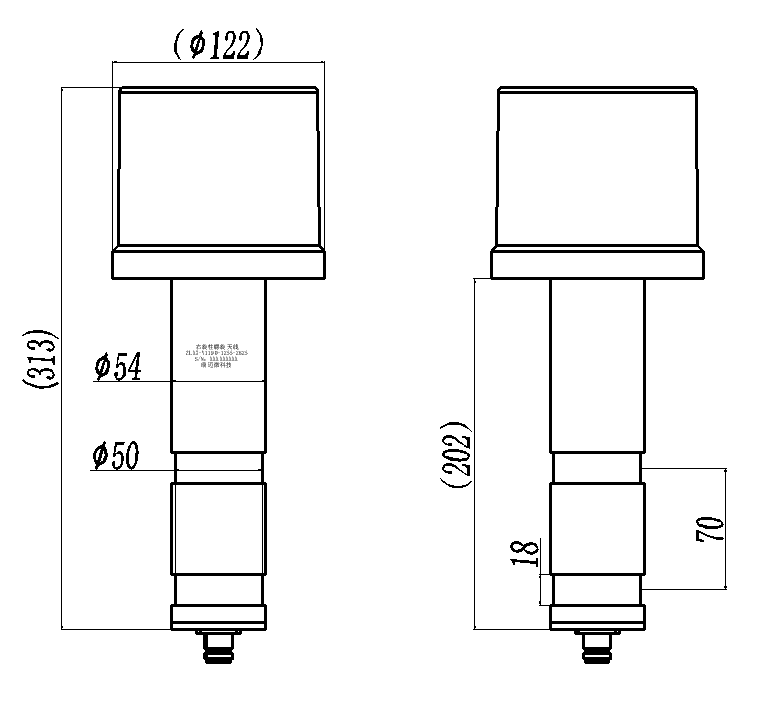

| Outline size | 122*122*313mm |
| Estimated weight | 700g |
| Surface | RAL7035 light gray |
| Operation Temp. | -30~+60℃ Design assurance |
| 安装要求 | 匹配定制三脚架 |
1. Non professionals are not allowed to disassemble.
2. The antenna installation location is unobstructed. And avoid getting close to other strong electromagnetic radiators;
/
/
