Frequency1.1~1.7GHz, Gain10dBi, 1.6, Right-handed circular polarization, N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

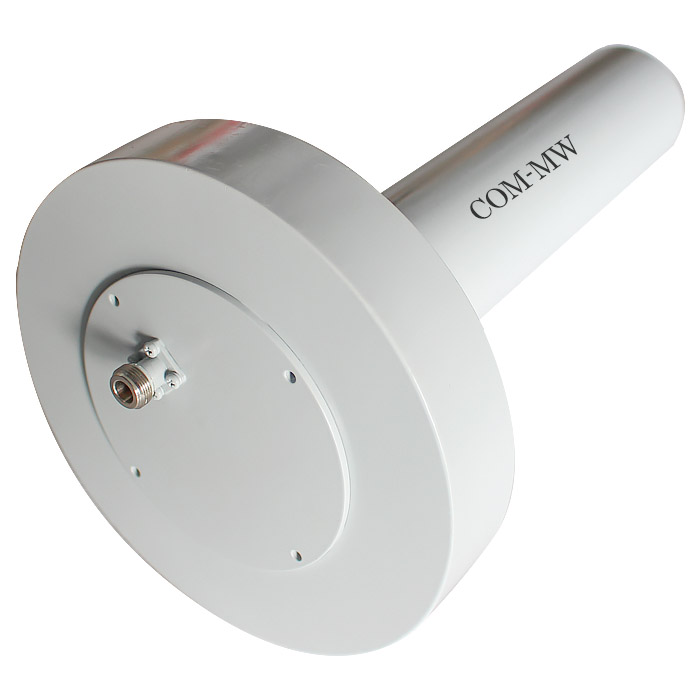

The axial helical antenna is composed of a metal helix with good conductivity, and is usually fed by a coaxial cable. Applied in VHF and UHF frequency bands, the antenna gain is high, the size is relatively small, and the structure is simple. The left-hand or right-hand circular polarization can be obtained by changing the spiral direction.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1.1 | ~ | 1.7 | GHz |

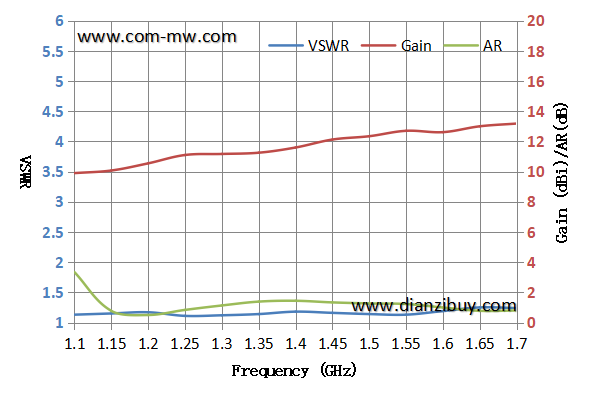

| Gain | 10 | dBi | ||
| VSWR | 1.6 | |||

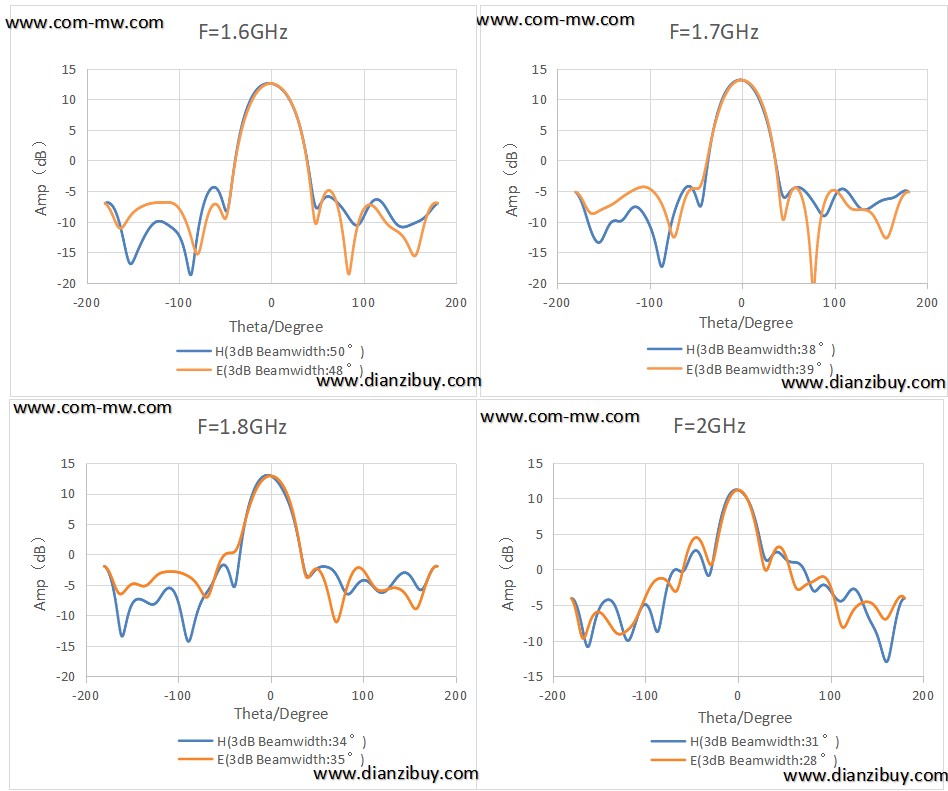

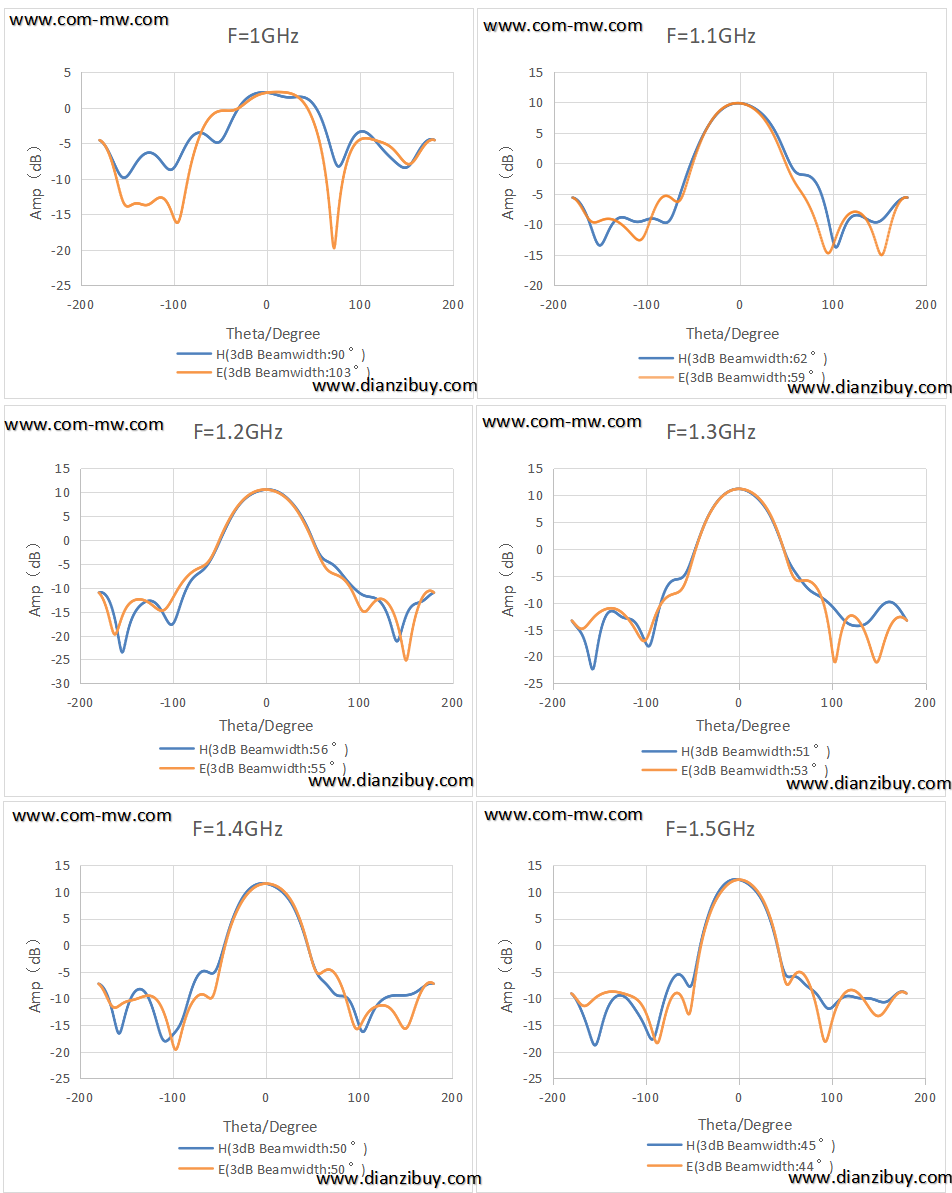

| 3dB Beamwidth | 38 | 62 | ° | |
| AR | 2.5 | dB |
| Polarization | Right-handed circular polarization |
| Power Capacity | 200W Design assurance |
| Connector | N-K |

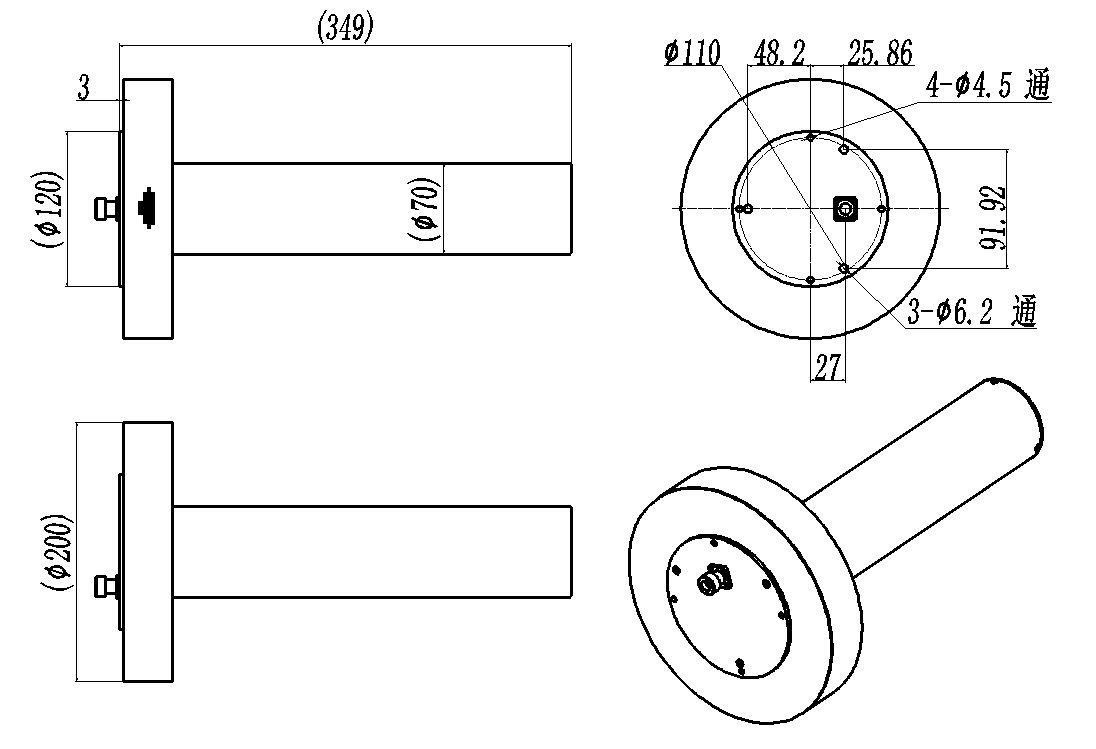

| Outline size | φ200*349mm |
| Estimated weight | 1.1Kg |
| Surface | Grey |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+60℃ Design assurance |
1. Non professionals are not allowed to disassemble.
/
