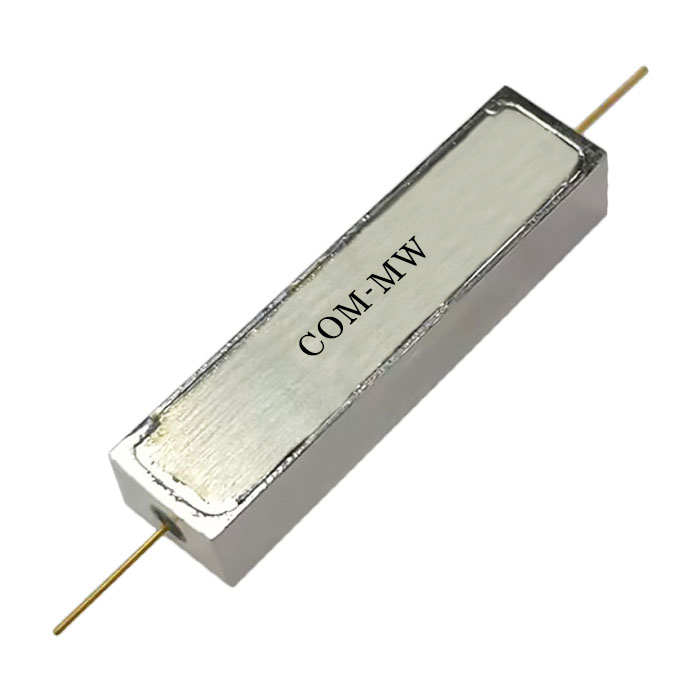

PassbandDC~475MHz, 550-950MHz≥25dB, 620-1000MHz≥40dB, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

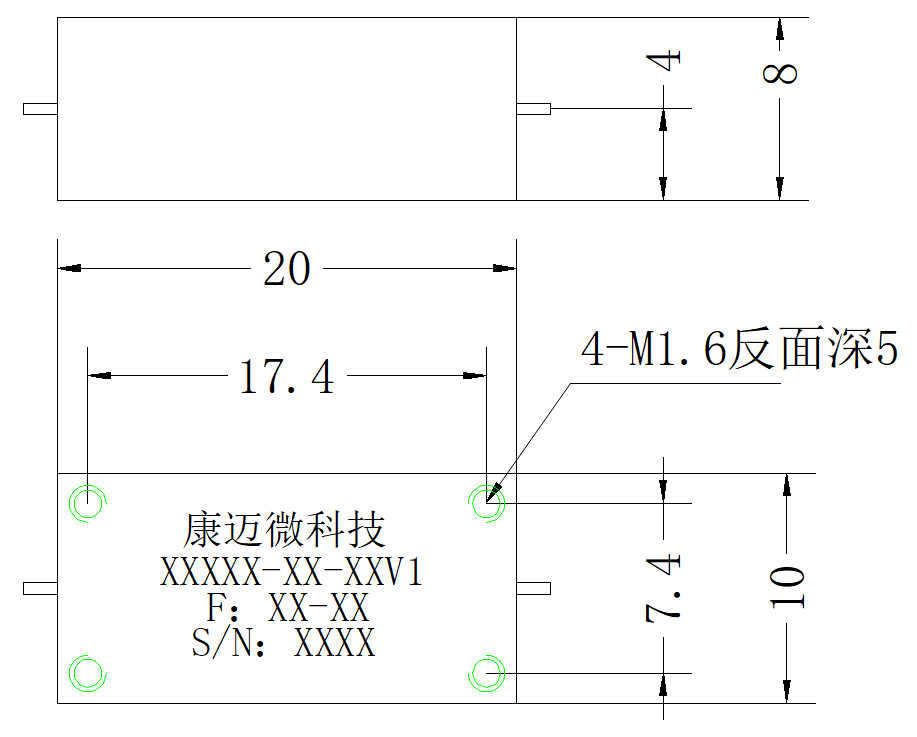

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | DC | ~ | 475 | MHz |
| Passband IL | / | / | 1.5 | dB | ||
| Ripple | 275-475 | MHz | 0.8 | dB | ||
| Rejection | 550-950 | MHz≥ | 25 | dB | ||
| Rejection | 620-1000 | MHz≥ | 40 | dB | ||
| Passband VSWR | / | / | 1.5 | |||
| Return loss | / | / | dB |
| Connector | Pin 0.5mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 1W Design assurance |
| Product shell material | Copper |
| Phase balance | ±3° |
| Operation Temp. | -40~+70℃ |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | 相位一致性: ≤±0.5°（任意10MHz带宽内相位差变化）；（5只一组以一只做参考归一相位曲线其他与之相比较相位曲线光滑缓慢变化）幅度一致性:≤±0.2dB（全频段）； ≤±0.1dB（任意10MHz带宽内相位差变化）；（5只一组以一只做参考归一幅度曲线其他与之相比较幅度曲线光滑缓慢变化） |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
