PassbandDC~25MHz, 36-47MHz≥20dB, 47-1000MHz≥40dB, SMD, Industrial grade, /
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Small size, high cost-effectiveness.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | DC | ~ | 25 | MHz | ||
| Passband IL | 1.0 | dB | ||||
| Rejection | 36-47 | MHz≥ | 20 | dB | ||
| Rejection | 47-1000 | MHz≥ | 40 | dB | ||
| Passband VSWR | 1.7 |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 0.5W Design assurance |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | -3dB cutoff frequency 28MHz |

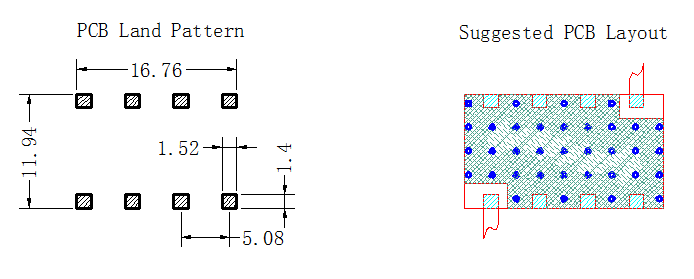

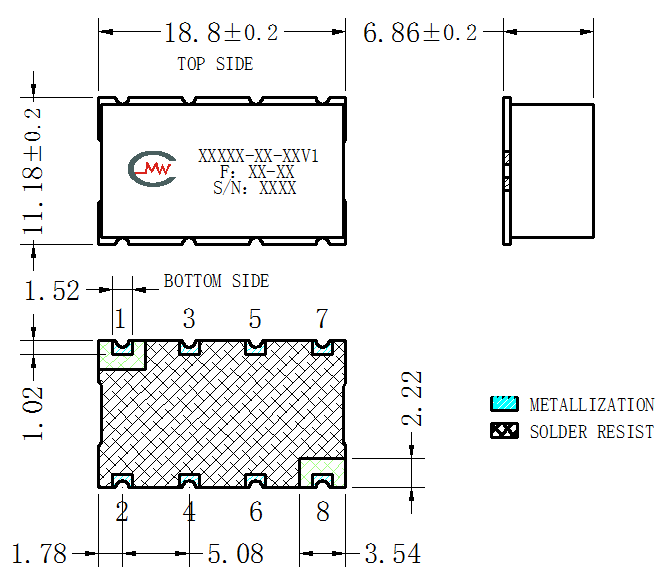

| I/O Port | 1 , 8 |
| GND | 2 ，3 ，4 ， 5 , 6 , 7 |

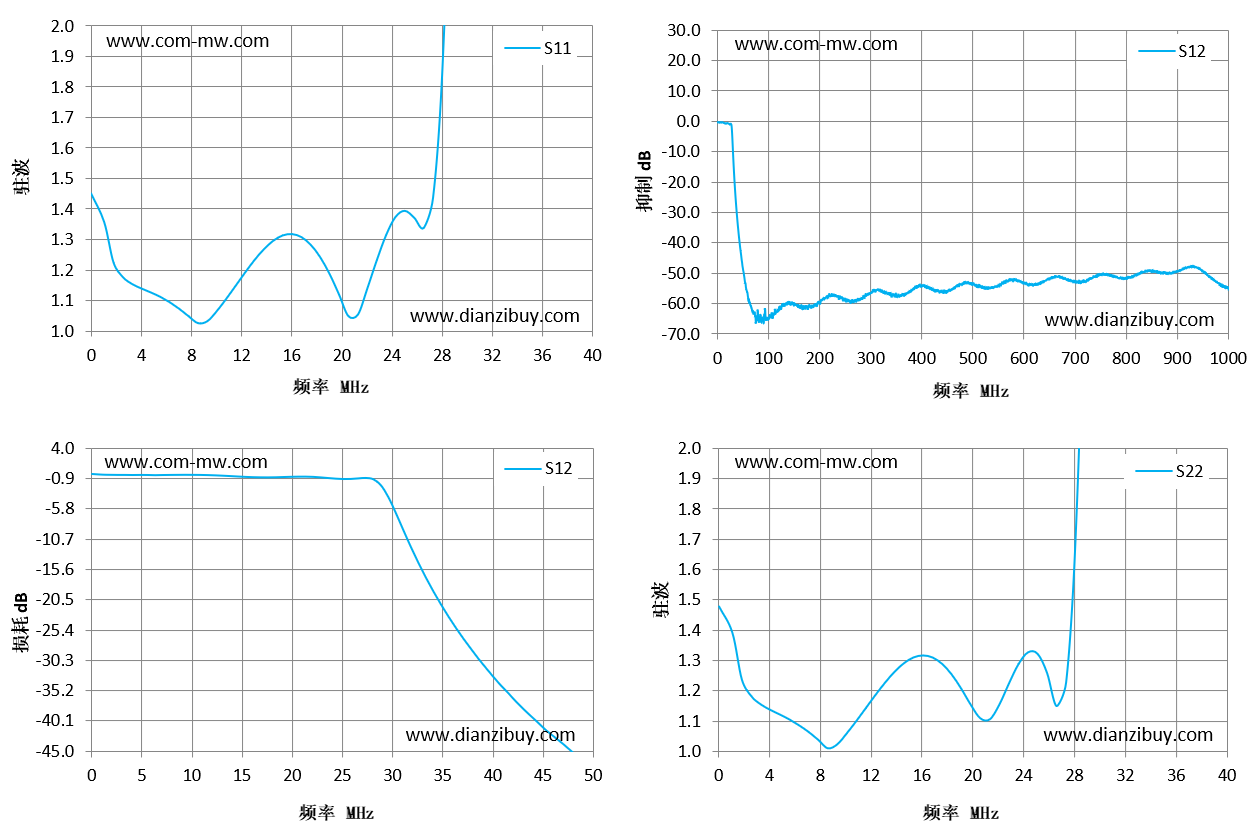

| Frequency(MHz) | S11 VSWR | S12 IL dB | S22 VSWR |
|---|---|---|---|
| 0.01 | 1.45 | -0.08 | 1.48 |
| 3 | 1.18 | -0.23 | 1.18 |
| 6 | 1.11 | -0.24 | 1.11 |
| 9 | 1.02 | -0.22 | 1.01 |
| 11 | 1.1 | -0.23 | 1.1 |
| 14 | 1.27 | -0.42 | 1.26 |
| 17 | 1.31 | -0.62 | 1.31 |
| 20 | 1.12 | -0.54 | 1.16 |
| 23 | 1.23 | -0.63 | 1.23 |
| 26 | 1.37 | -0.88 | 1.26 |
| 29 | 2.75 | -1.9 | 2.7 |
| 31 | 5.55 | -6.42 | 5.94 |
| 34 | 8.69 | -16.88 | 8.82 |
| 37 | 11.04 | -25.03 | 10.79 |
| 40 | 16.07 | -31.51 | 15.17 |
| 1 | 产品支持水洗。 |
| 2 | The product supports 260 ℃ reflow soldering. |
