Frequency4~40GHz, Gain12dBi, Dual Circular Polarization, 2.92-F or K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
The dual polarized horn antenna is a type of dual port antenna, with two ports polarized orthogonally. Our company can provide products with various specifications such as ultra wideband, broadband, narrowband, dual polarization, dual circular polarization, etc. It has the characteristics of high gain, good directionality, high isolation, good axial ratio, and high efficiency. Widely used in EMC, EMI, antenna measurement, radar and other related fields.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 4 | ~ | 40 | GHz |
| Gain | 12 | dBi | ||
| VSWR | 1.7 | |||
| 3dB Beamwidth | 20 | 85 | ° | |
| Port isolation | 12 | dB | ||
| AR | 3.0 | dB |
| Polarization | Dual Circular Polarization |
| Connector | 2.92-F or K |
| Power Capacity | 10W Design assurance |

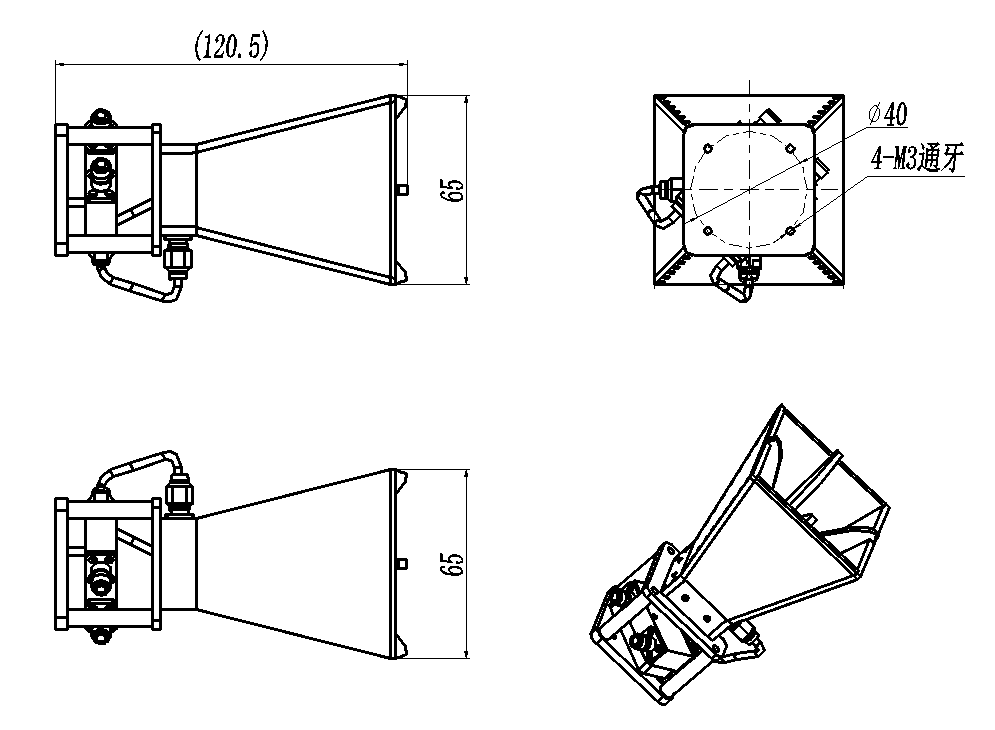

| Outline size | 120.5 * 65 * 65mm excluding cables |
| Estimated weight | 280g |
| Surface | Grey |
| Operation Temp. | -30~+60℃ Design assurance |
| Storage Temp. | -45~+70℃ Design assurance |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
