It has the characteristics of wide bandwidth, low sidelobes, and high efficiency.
| Parameters | Min | Typical | Max | Units |

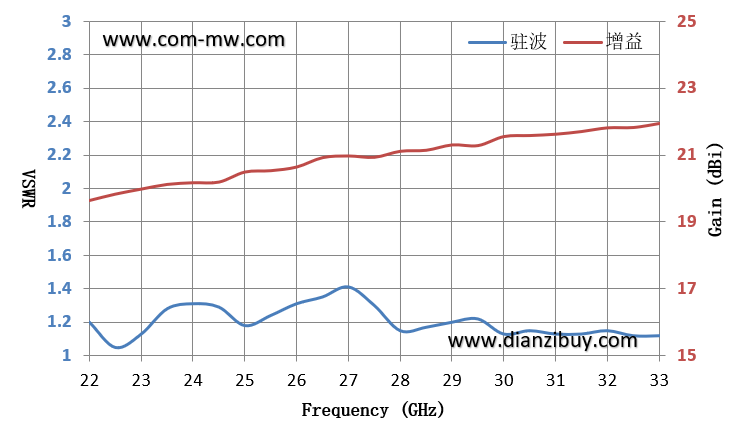

| Frequency | 22 | 33 | GHz | |
| Gain | 20 | dBi | ||
| VSWR | 1.5 | |||
| power | 20 | W |
| Polarization | Linear polarization |
| Connector | 2.92-K设计保证 |

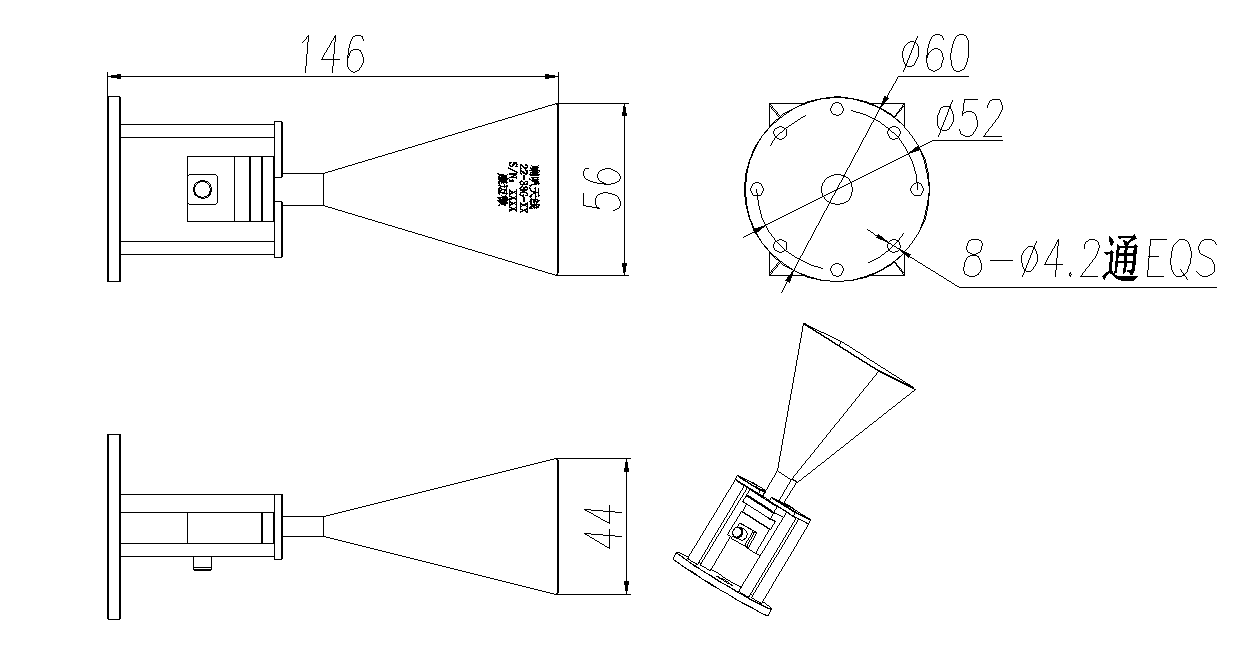

| Outline size | 60*60*146mm设计保证 |
| Estimated weight | 0.2Kg设计保证 |
| surface treatment | Gray |
| Operation Temp. | -45~+75℃ Design assurance |
Avoid collisions during installation.
The installation position of the antenna should be free of any obstacles.
