Frequency1.13~1.73GHz, Gain18dBi, Linear Pol., N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

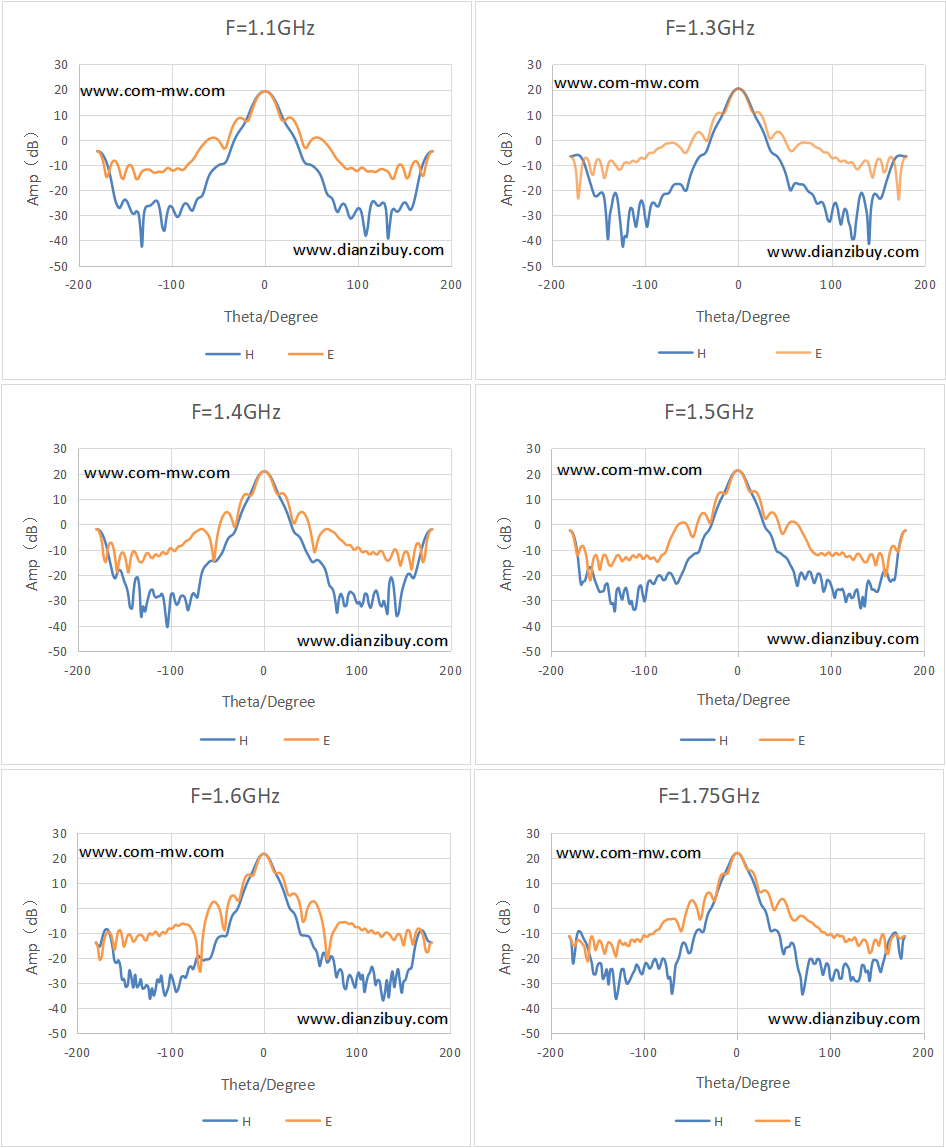

It has the characteristics of wide bandwidth, low sidelobes, and high efficiency.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1.13 | ~ | 1.73 | GHz |

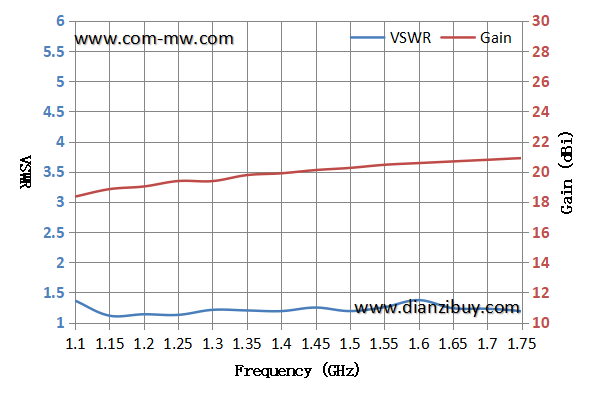

| Gain | 18 | dBi | ||
| VSWR | 1.5 | |||
| power | 800 | W (Design assurance) |
| Polarization | Linear Pol. |
| Connector | N -K |

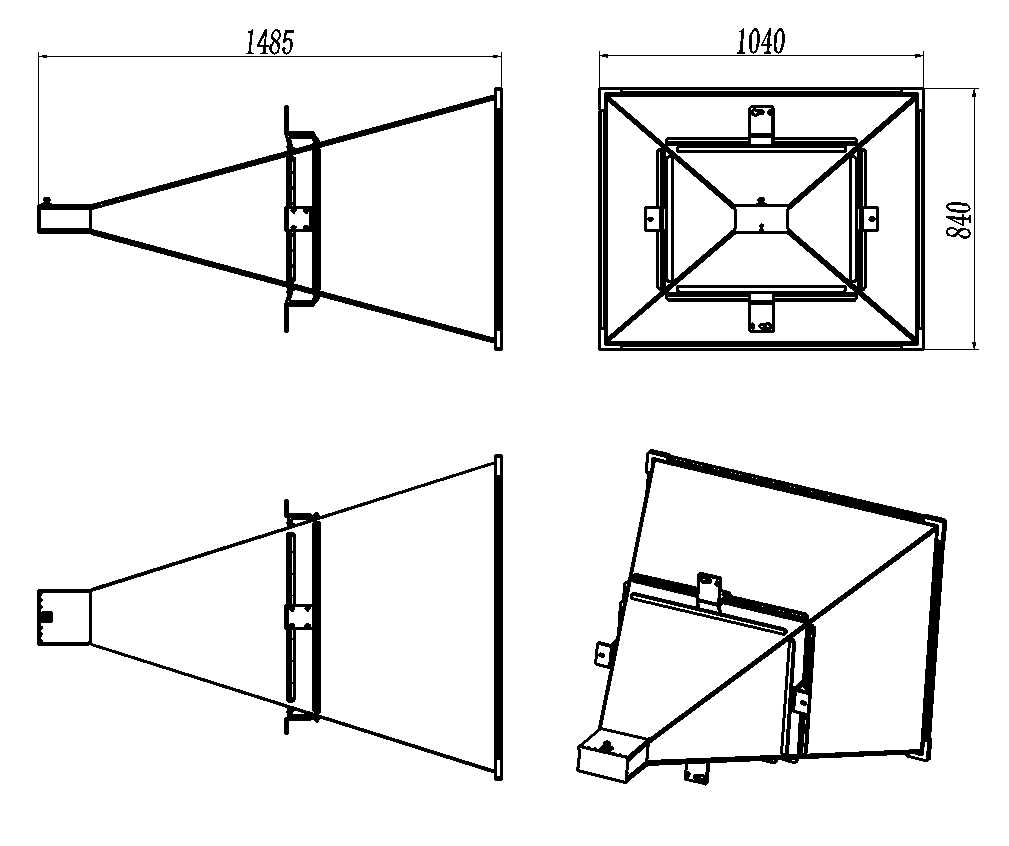

| Outline size | 1485*1040*840mm |
| Estimated weight | 23Kg |
| Material | Aluminium |
| Surface | Sandblasting Nature Color Conductive Oxidation |
| Operation Temp. | -40~+75℃ Design assurance |
| Storage Temp. | -45~+85℃ Design assurance |

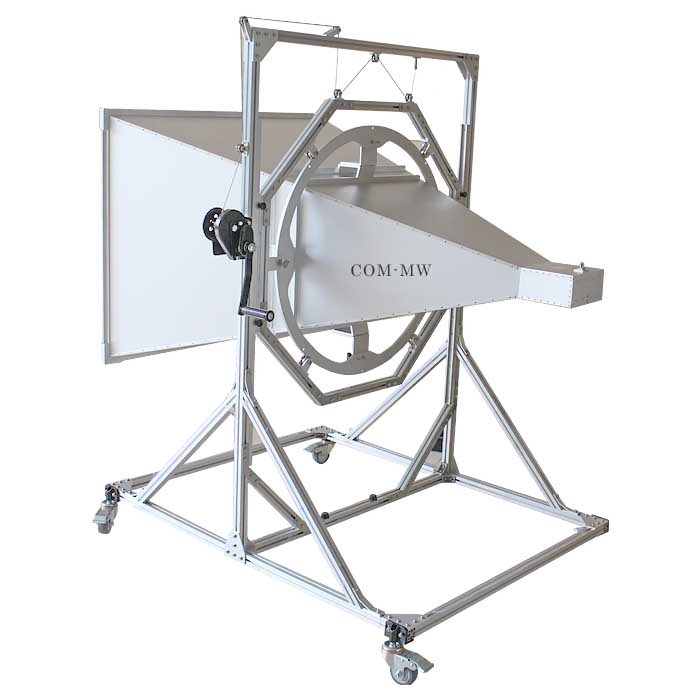

| Other | Optional antenna rack model TXJ7-1000-2076 |
1. Non professionals are not allowed to disassemble.
/
