The Microstrip antenna has the characteristics of light weight, small size, etc. It can achieve a higher gain microstrip array antenna through multi element array.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency 1 | 2 | ~ | 18 | GHz |
| Frequency 2 | 26.5 | ~ | 40 | GHz |
| Gain 1 | 0 | dBi | ||
| Gain 2 | 10 | dBi | ||
| VSWR 1 | 2 | |||
| VSWR 2 | 1.5 | |||
| 3dB beamwidth 1 | 60 | ° | ||
| 3dB beam width 2 | 60 | ° |
| Polarization mode 1 | Right-handed circular polarization |
| Polarization mode 2 | Linear polarization |
| Power Capacity | 0.5W Design assurance |
| Port 1 | SMA-K |
| Port 2 | 2.92-K |

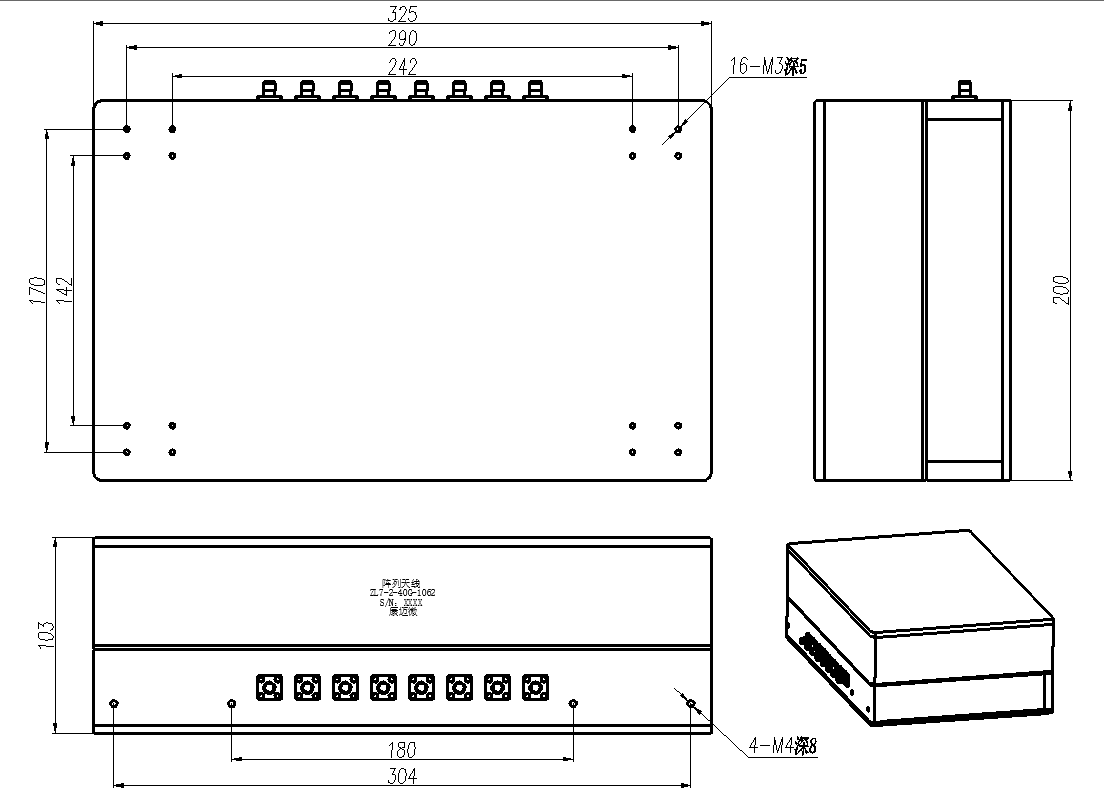

| Outline size | 325*200*103mm |
| Estimated weight | 2.8Kg |
| Surface | Green |
| Operation Temp. | -25~+45℃ Design assurance |
| Storage Temp. | -40~+75℃ Design assurance |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
