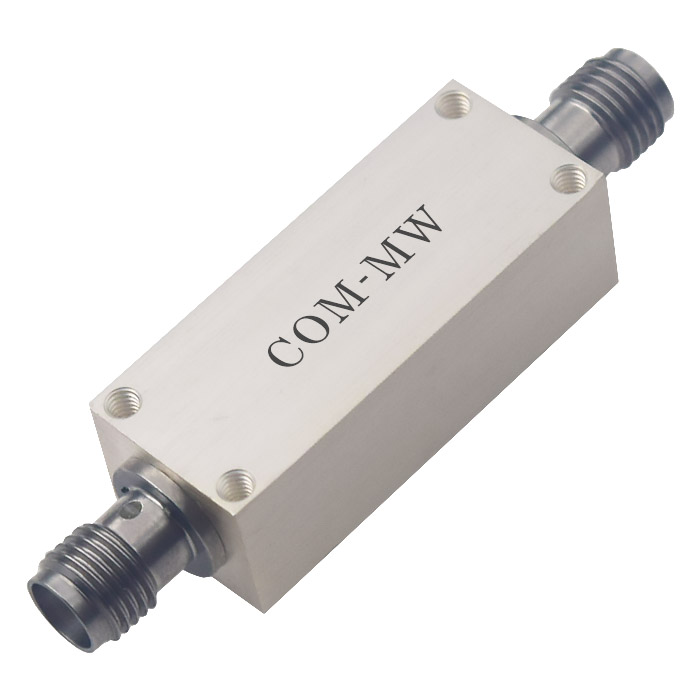

Passband2000~6000MHz, DC-1650MHz≥30dBc, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 2000 | ~ | 6000 | MHz |
| Passband IL | / | / | 1 | dB | ||
| Rejection | DC-1650 | MHz≥ | 30 | dBc | ||
| Passband VSWR | / | / | 1.5 |
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 30W Design assurance |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |

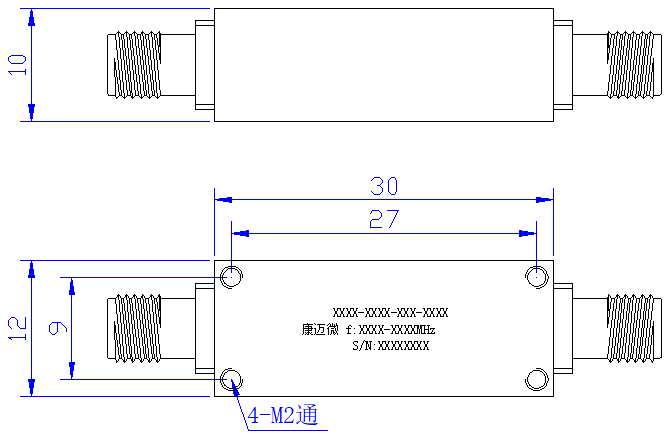

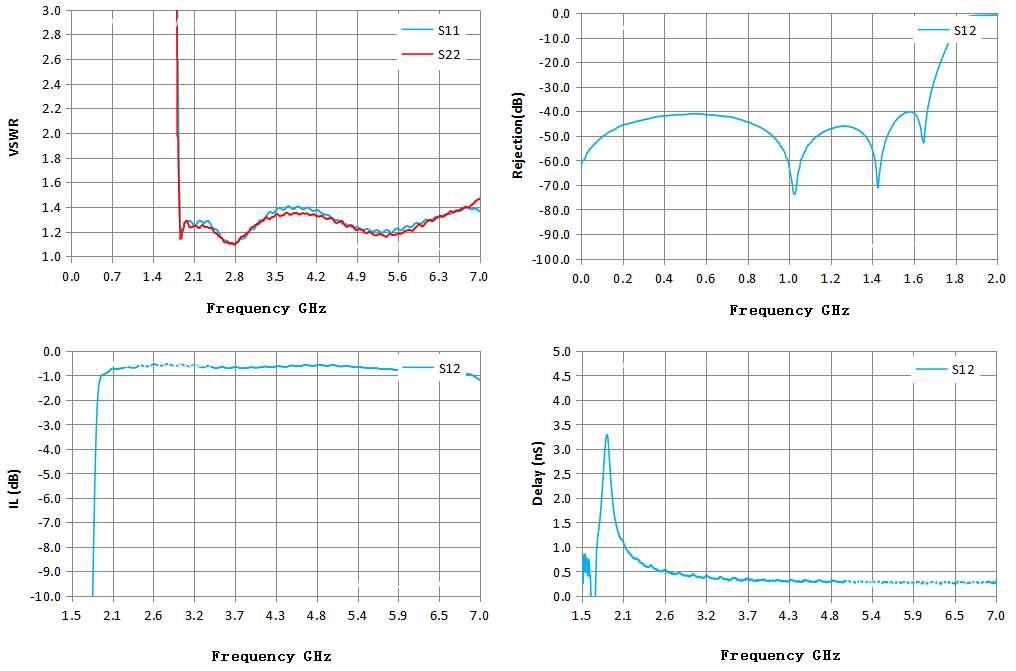

| Frequency GHz | S11 VSWR | S22 VSWR | S12 IL dB | S12 Rej. | S12 Delay nS |
|---|---|---|---|---|---|
| 0.03 | 3390.72 | 739.81 | -63.23 | -63.23 | 1.65 |
| 0.53 | 8837.99 | 32.66 | -41.28 | -41.28 | 0.45 |
| 1.03 | 152.94 | 20.76 | -69.32 | -69.32 | -1.06 |
| 1.52 | 56.01 | 19.68 | -43.90 | -43.90 | 0.84 |
| 2.02 | 1.29 | 1.27 | -0.78 | -0.78 | 1.16 |
| 2.52 | 1.21 | 1.18 | -0.63 | -0.63 | 0.50 |
| 3.02 | 1.16 | 1.18 | -0.59 | -0.59 | 0.39 |
| 3.52 | 1.36 | 1.33 | -0.64 | -0.64 | 0.37 |
| 4.01 | 1.38 | 1.34 | -0.68 | -0.68 | 0.31 |
| 4.51 | 1.30 | 1.29 | -0.61 | -0.61 | 0.29 |
| 5.01 | 1.21 | 1.21 | -0.57 | -0.57 | 0.31 |
| 5.51 | 1.19 | 1.17 | -0.70 | -0.70 | 0.27 |
| 6.00 | 1.26 | 1.25 | -0.78 | -0.78 | 0.27 |
| 6.50 | 1.34 | 1.36 | -0.84 | -0.84 | 0.30 |
| 7.00 | 1.36 | 1.47 | -1.20 | -1.20 | 0.33 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
