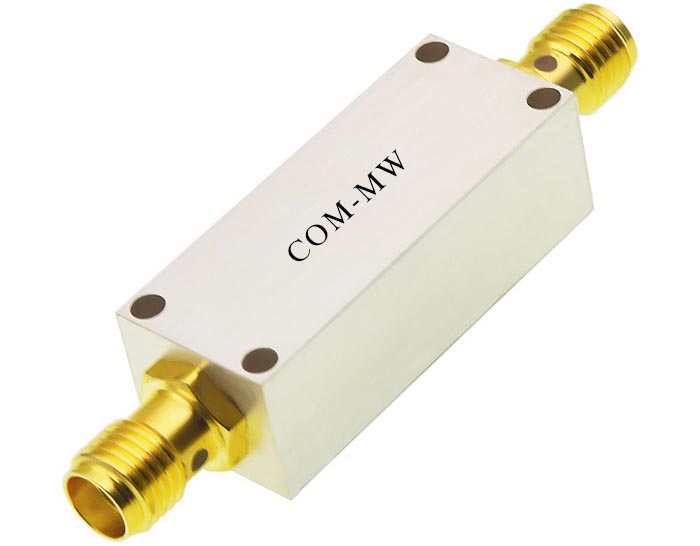

Passband2~30MHz, DC-1MHz≥40dB, 1-1.5MHz≥20dB, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

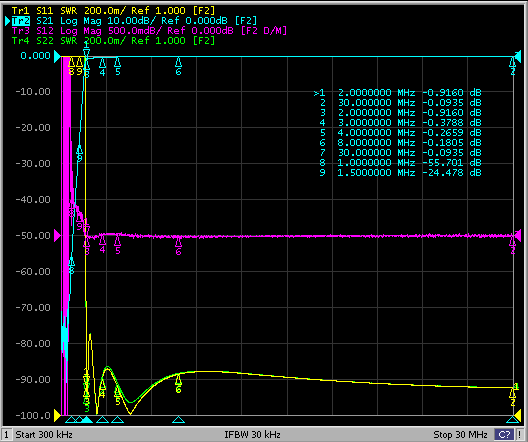

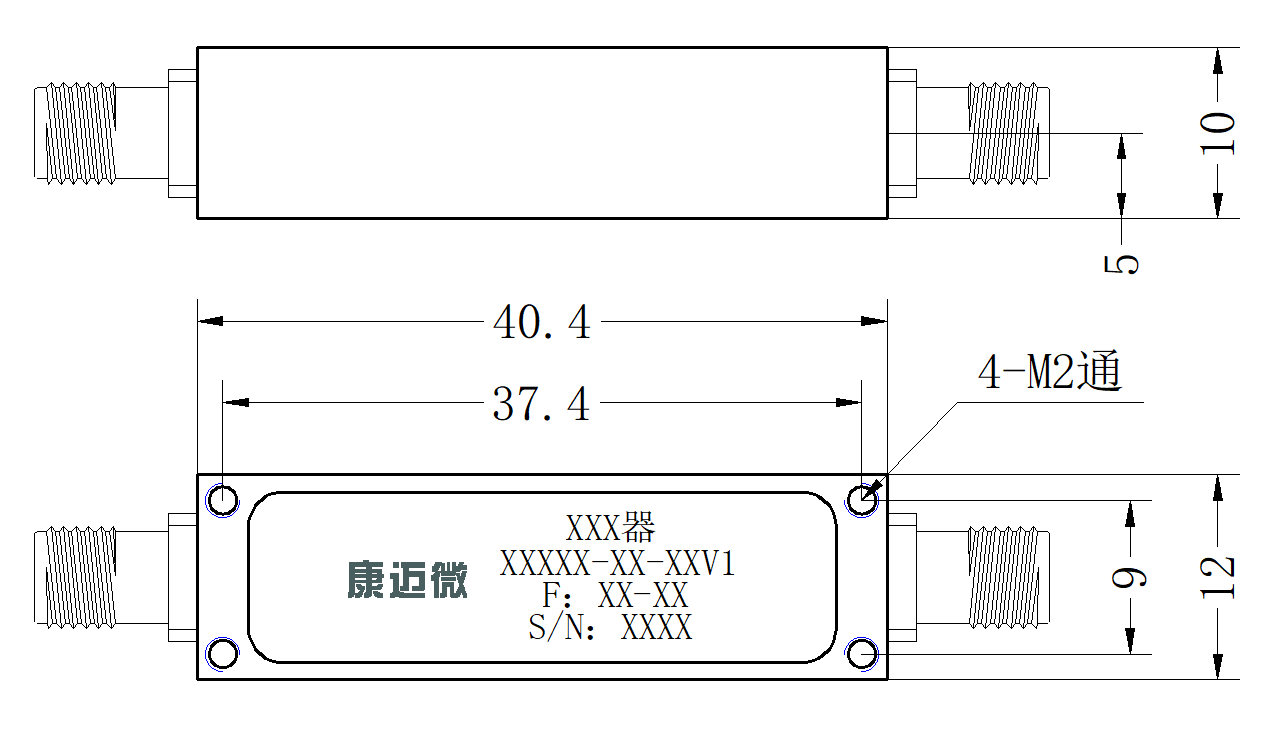

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 2 | ~ | 30 | MHz |
| Passband IL | 2MHz | / | 2.0 | dB | ||
| Passband IL | 3MHz | / | 1.5 | dB | ||
| Passband IL | 4-8MHz | / | 1.0 | dB | ||
| Passband IL | 8-30MHz | / | 0.2 | dB | ||
| Ripple | / | / | dB | |||
| Rejection | DC-1 | MHz≥ | 40 | dB | ||
| Rejection | 1-1.5 | MHz≥ | 20 | dB | ||
| Passband VSWR | / | / | 2.0 | |||
| Return loss | / | / | dB |
| Connector | SMA-F |
| Connector material | Shell copper plated with gold |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 0.5W Design assurance |
| Operation Temp. | -40~+70℃ |
| Storage Temp. | -55~+85℃ Design assurance |
| Passband amplitude consistency | ≤0.5dB |
