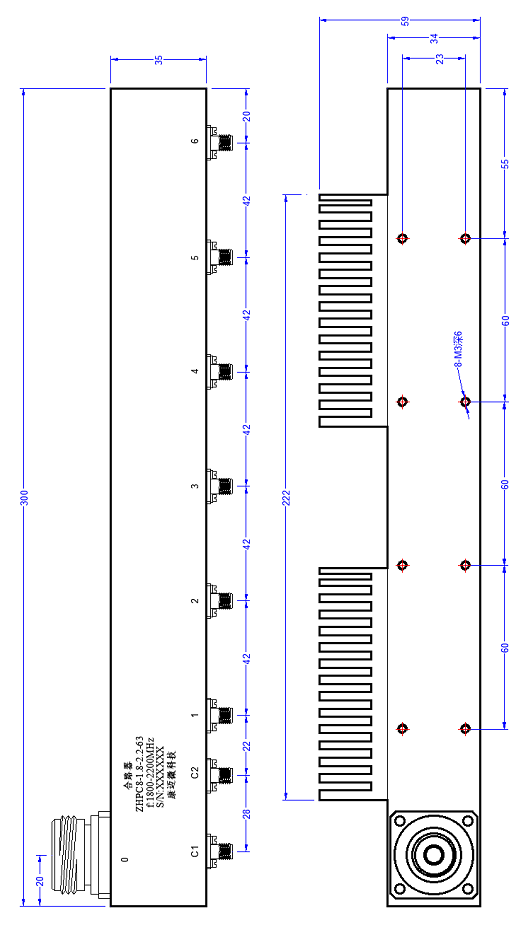

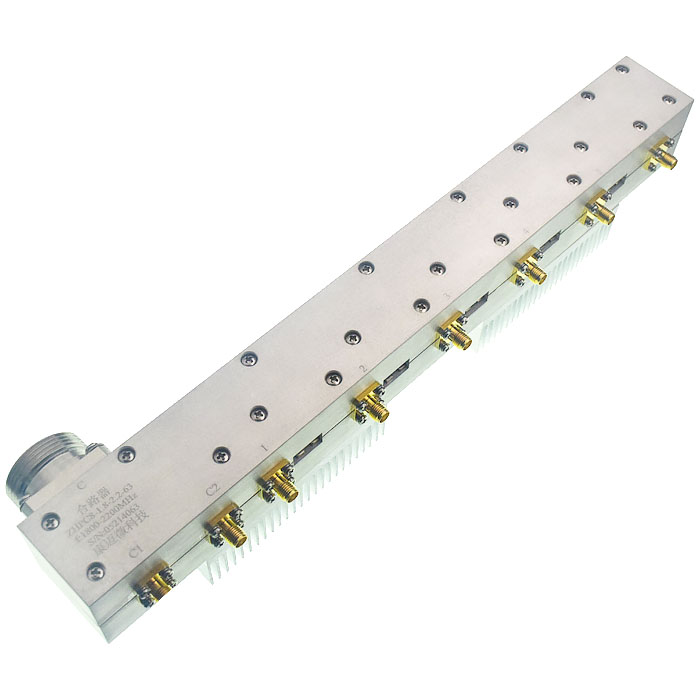

1800~2200MHz, 600W, 6way, L29, Series feed synthesizer
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High power, low loss, and high synthesis efficiency.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1800 | ~ | 2200 | MHz |
| IL | 0.5 | dB | ||
| Isolation | 20 | dB | ||
| Input VSWR | 1.3 | |||
| Output VSWR | 1.3 | |||
| Amplitude balance | 0.5 | dB | ||
| Coupling | 32 | 34 | dB | |
| Directivity | 12 | dB |
| Power Capacity | 600W |
| X-Way | 6-Way (theoretical loss 7.8dB) |
| Phase | Paired use of two |
| Impedance | 50Ω |
| Connector | L29-K, “1-6、C1、C2”: SMA-K |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -30~+85℃ Design assurance |
| Other | Series feed synthesizer |
| Common port | 0 |
| Dispatch Port | 1-6 |
| Coupling port | C1、C2 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
