5000~6000MHz, 50W, 90°Hybrid, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 5000 | ~ | 6000 | MHz |
| IL | 0.8 | dB | ||
| Theoretical loss | 3 | dB | ||
| Isolation | 18 | dB | ||
| VSWR | 1.35 | |||
| Amplitude balance | ±0.5 | dB | ||
| Phase balance | ±5 | ° |
| Power Capacity | 50W Design assurance |
| Peak power | 3000W Design assurance |
| Phase | 90° Hybrid |
| Impedance | 50Ω |

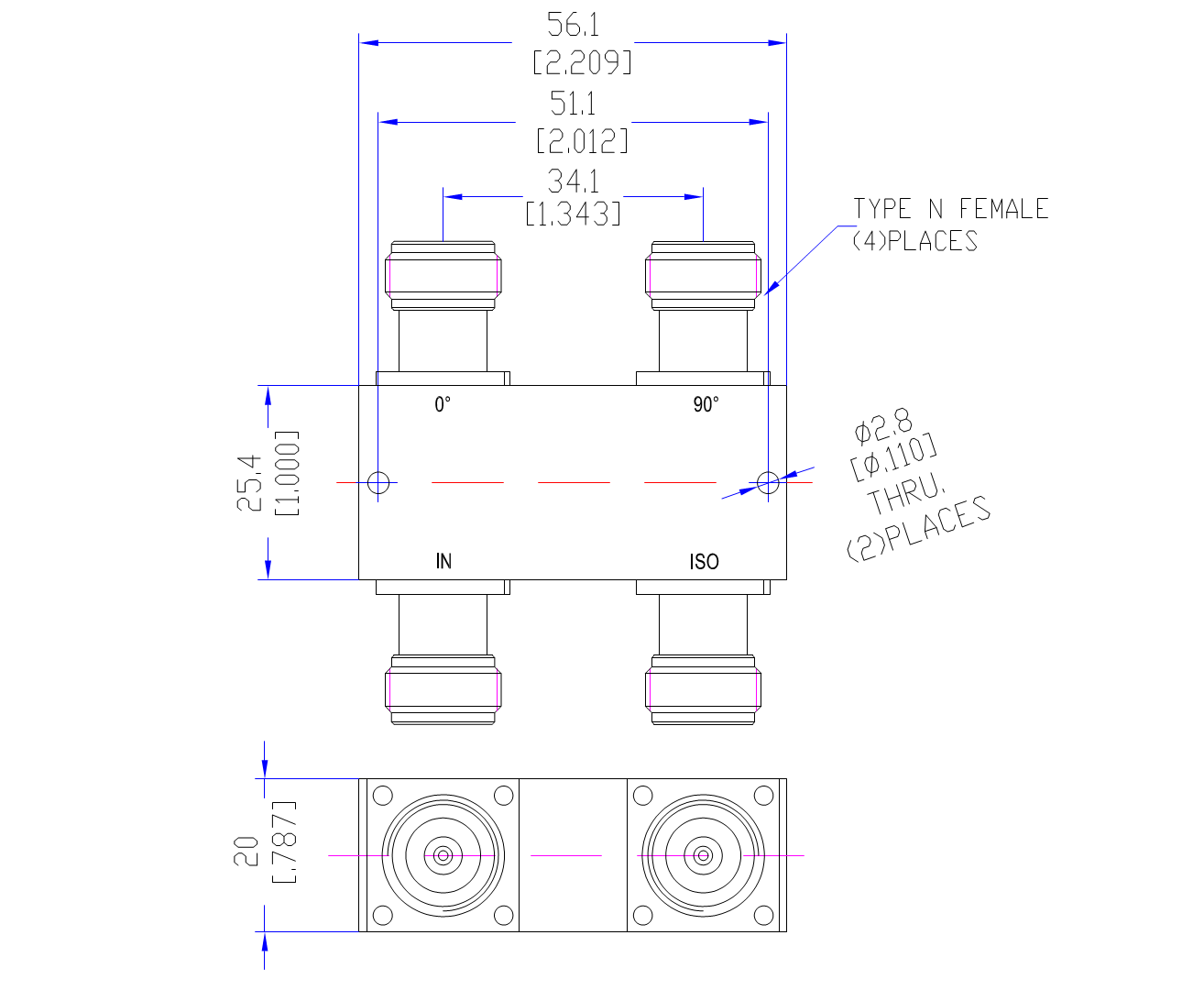

| Connector | N -F or K |
| Connector material | Stainless steel |
| Operation Temp. | -45~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| ROHS | Compliant Available |
| Waterproof grade | IP65 |
