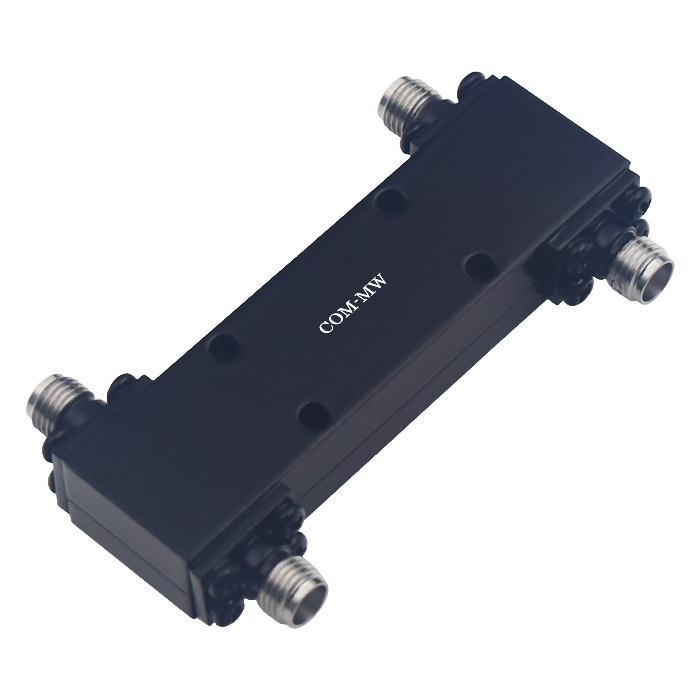

1000~4000MHz, 50W, 90°Hybrid, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1000 | ~ | 4000 | MHz |
| IL | 0.6 | dB | ||
| Isolation | 20 | dB | ||
| VSWR | 1.25 | |||
| Amplitude balance | 1 | dB | ||
| Phase balance | ±3 | ° |
| Power | 50W Design assurance |
|---|---|
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Work Temp. | -40~+85℃ Design assurance |

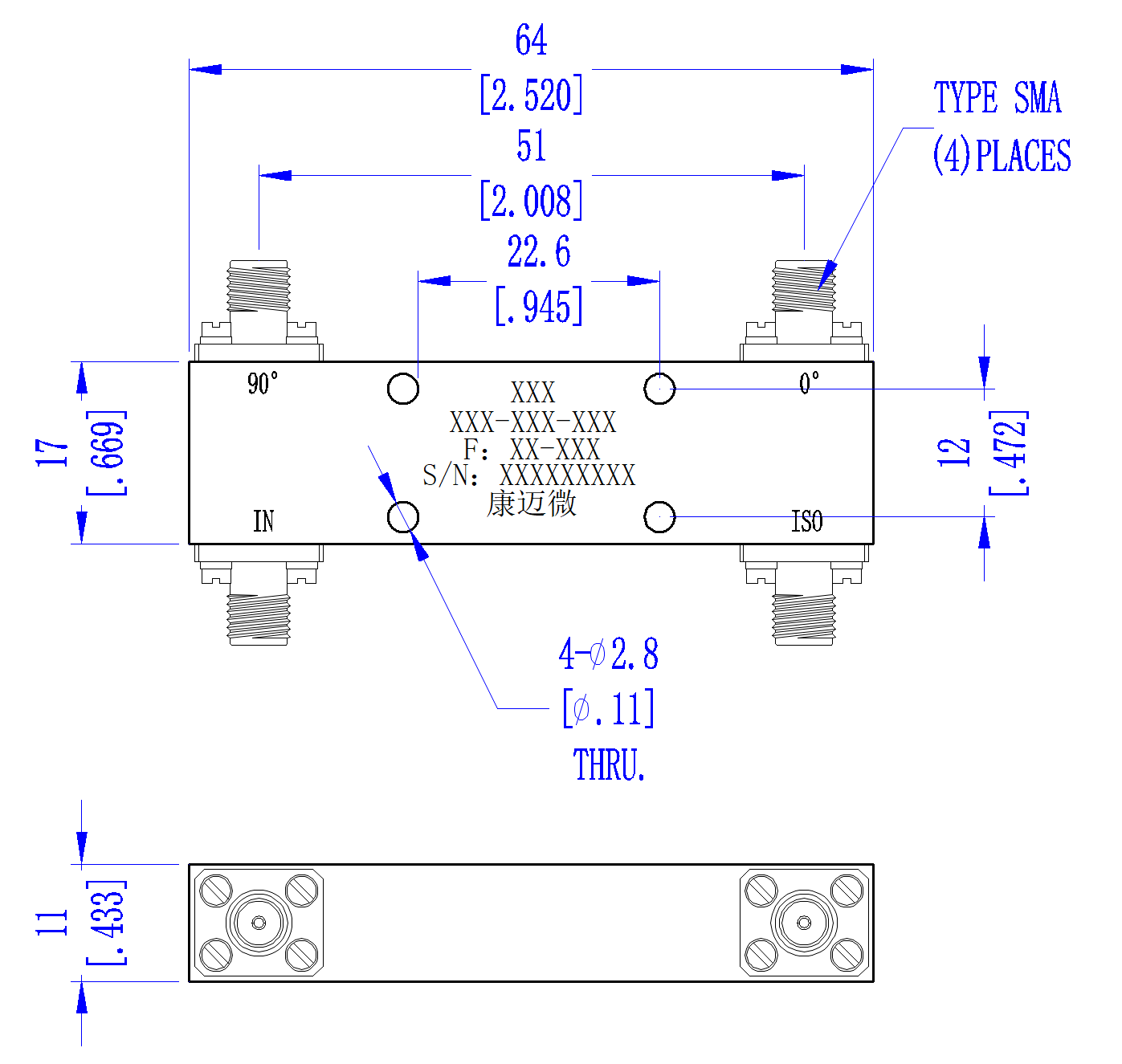

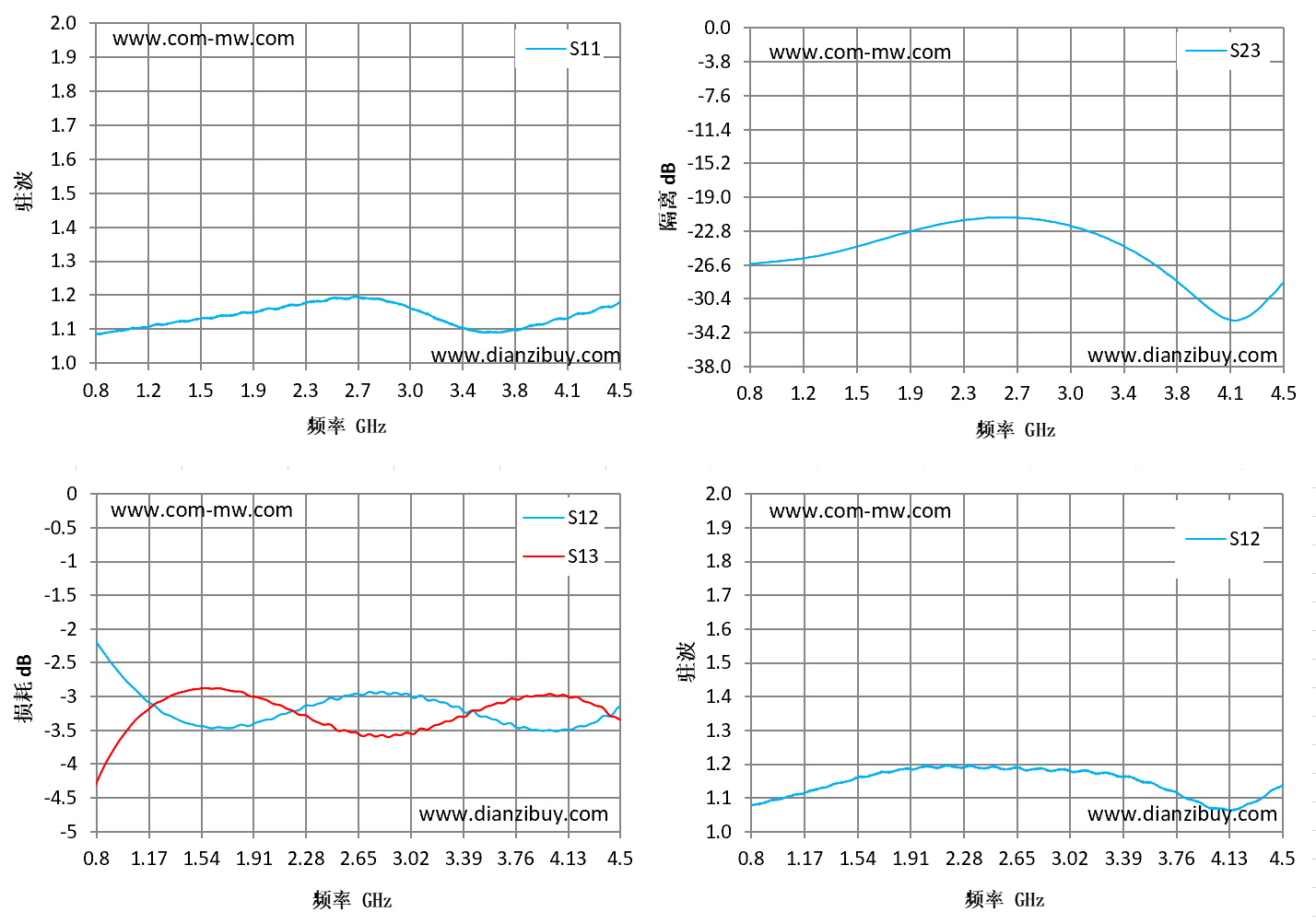

| Frequency(GHz) | S11 VSWR | S12 IL dB | S13 IL dB | S23 ISO dB | S12 VSWR |
|---|---|---|---|---|---|
| 0.8 | 1.09 | -2.19 | -4.27 | -26.54 | 1.08 |
| 1.06 | 1.1 | -2.87 | -3.38 | -26.11 | 1.1 |
| 1.33 | 1.12 | -3.29 | -2.98 | -25.42 | 1.13 |
| 1.59 | 1.13 | -3.46 | -2.88 | -24.36 | 1.16 |
| 1.86 | 1.15 | -3.43 | -2.97 | -23.11 | 1.18 |
| 2.12 | 1.17 | -3.26 | -3.15 | -22.06 | 1.19 |
| 2.39 | 1.18 | -3.09 | -3.4 | -21.44 | 1.19 |
| 2.65 | 1.2 | -2.96 | -3.55 | -21.33 | 1.19 |
| 2.91 | 1.18 | -2.94 | -3.56 | -21.83 | 1.18 |
| 3.18 | 1.14 | -3.05 | -3.43 | -23.04 | 1.17 |
| 3.44 | 1.1 | -3.21 | -3.23 | -24.96 | 1.16 |
| 3.71 | 1.1 | -3.39 | -3.05 | -27.83 | 1.12 |
| 3.97 | 1.12 | -3.5 | -2.98 | -31.34 | 1.07 |
| 4.24 | 1.15 | -3.44 | -3.06 | -32.54 | 1.08 |
| 4.5 | 1.18 | -3.14 | -3.34 | -28.63 | 1.14 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
