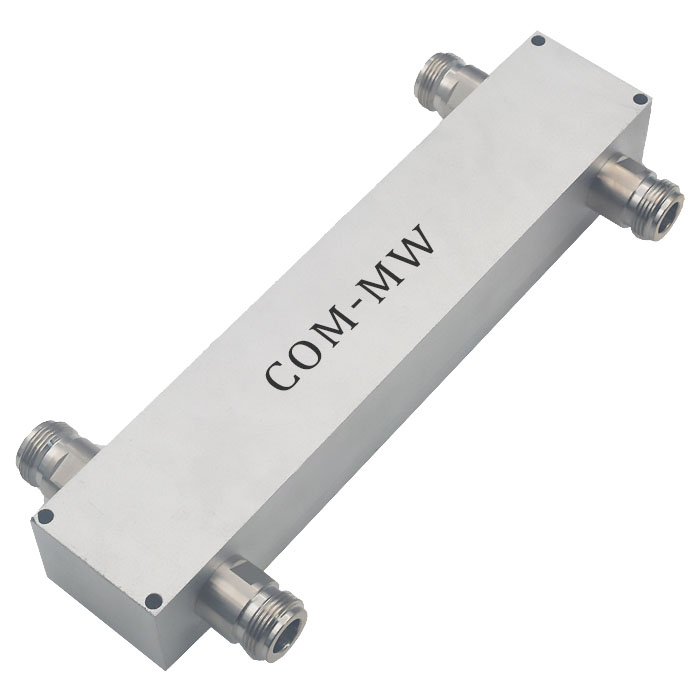

800~2500MHz, 200W, OtherHybrid, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
高互调大功率电桥
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 800 | ~ | 2500 | MHz |
| IL | 0.5 | dB | ||
| Theoretical loss | 3 | dB | ||
| Isolation | 28 | 22 | dB | |
| VSWR | 1.2 | |||
| Amplitude balance | ±0.5 | dB | ||
| 互调@1.8GHz | 140 | dBc |
| Power Capacity | 200W Design assurance |
| Phase | Other bridges |
| Impedance | 50Ω |
| Connector | N -F or K |
| Connector material | Shell copper plated with ternary alloy |
| Product shell material | Aluminium |
| Operation Temp. | -35~+65℃ Design assurance |
| IN | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| ISO | 2 | 1 | 4 | 3 |
| OUT | 3，4 | 3,4 | 1,2 | 2,1 |

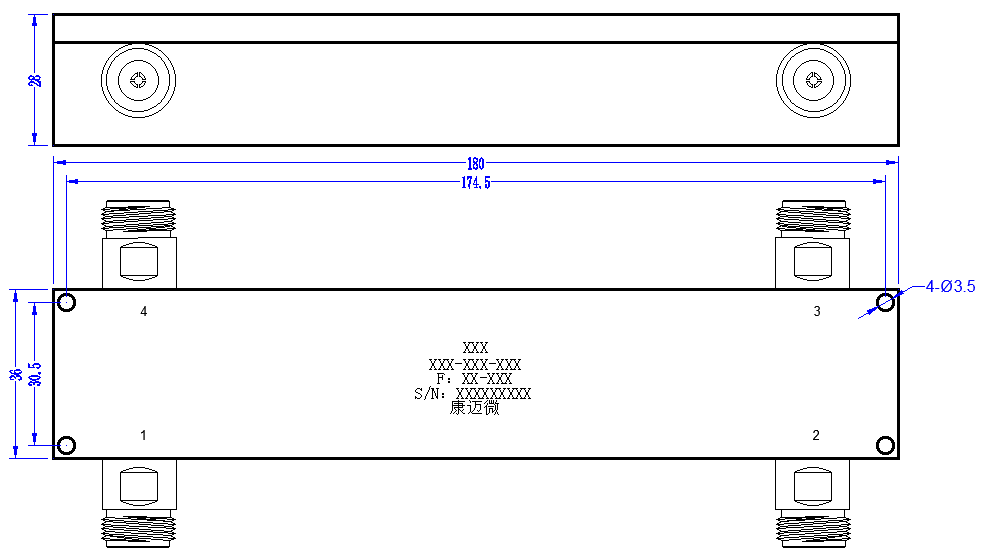

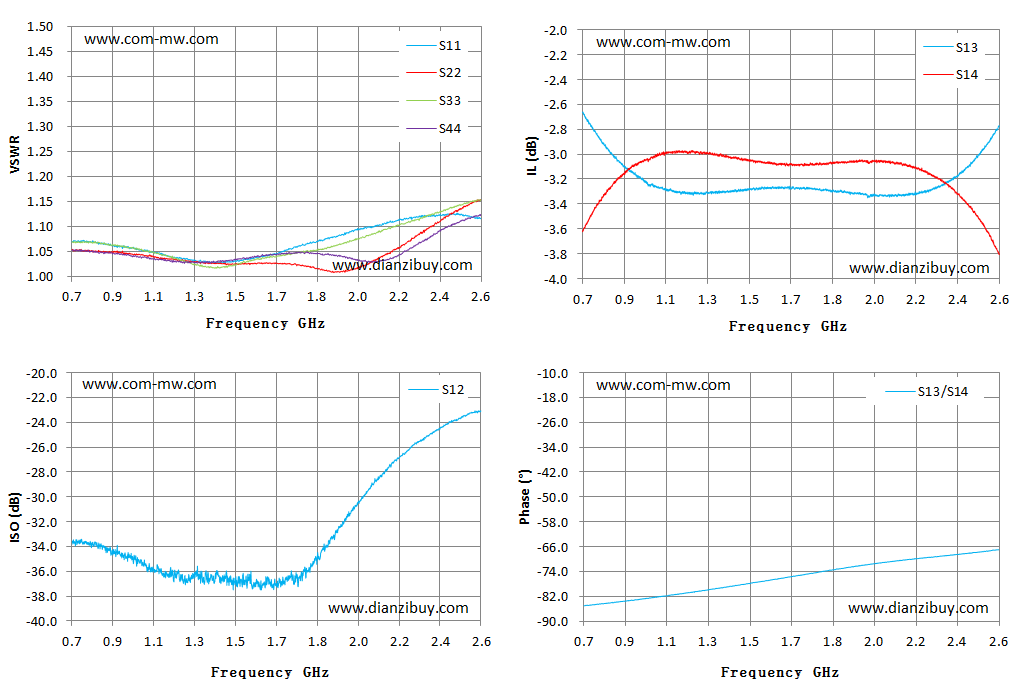

| Frequency GHz | VSWR | VSWR | VSWR | VSWR | ISO dB | IL (dB) | IL (dB) | 相位 ° |
|---|---|---|---|---|---|---|---|---|
| / | S11 | S22 | S33 | S44 | S12 | S13 | S14 | S13/S14 |
| 0.70 | 1.07 | 1.05 | 1.07 | 1.05 | -33.6 | -2.66 | -3.62 | -85.0 |
| 0.84 | 1.07 | 1.05 | 1.07 | 1.05 | -33.9 | -3.01 | -3.24 | -83.9 |
| 0.97 | 1.06 | 1.05 | 1.06 | 1.04 | -34.8 | -3.20 | -3.06 | -82.8 |
| 1.11 | 1.05 | 1.04 | 1.05 | 1.03 | -35.9 | -3.30 | -2.98 | -81.5 |
| 1.24 | 1.03 | 1.03 | 1.03 | 1.03 | -36.6 | -3.31 | -2.99 | -80.1 |
| 1.38 | 1.03 | 1.03 | 1.02 | 1.03 | -36.3 | -3.30 | -3.03 | -78.7 |
| 1.51 | 1.04 | 1.03 | 1.03 | 1.04 | -36.4 | -3.28 | -3.06 | -77.2 |
| 1.65 | 1.05 | 1.03 | 1.04 | 1.04 | -37.1 | -3.28 | -3.07 | -75.6 |
| 1.79 | 1.07 | 1.02 | 1.05 | 1.05 | -35.9 | -3.29 | -3.08 | -74.0 |
| 1.92 | 1.08 | 1.01 | 1.06 | 1.04 | -33.4 | -3.32 | -3.06 | -72.6 |
| 2.06 | 1.10 | 1.02 | 1.08 | 1.03 | -29.9 | -3.32 | -3.06 | -71.3 |
| 2.19 | 1.11 | 1.05 | 1.10 | 1.04 | -27.2 | -3.32 | -3.08 | -70.1 |
| 2.33 | 1.12 | 1.09 | 1.12 | 1.07 | -25.4 | -3.26 | -3.20 | -69.1 |
| 2.46 | 1.12 | 1.13 | 1.14 | 1.10 | -23.9 | -3.09 | -3.41 | -68.2 |
| 2.60 | 1.12 | 1.15 | 1.15 | 1.12 | -23.1 | -2.77 | -3.81 | -67.0 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
