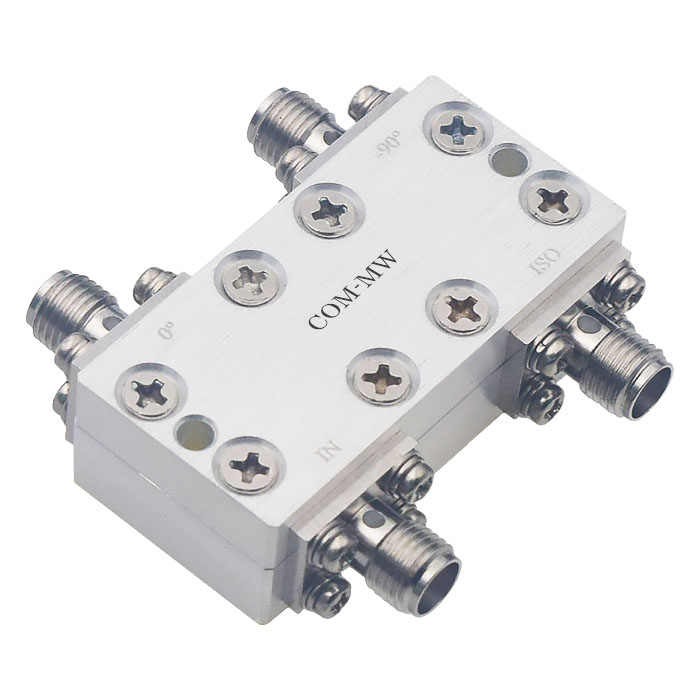

3.5~8GHz, 50W, 90°Hybrid, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 3.5 | ~ | 8 | GHz |
| IL | 0.5 | dB | ||
| Isolation | 20 | dB | ||
| VSWR | 1.3 | |||
| Amplitude balance | 0.8 | dB | ||
| Phase balance | 8 | ° |
| Power | 50W |
|---|---|
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | SMA-K |
| Surface | White |
| Product shell material | Aluminium |
| Work Temp. | -40~+85℃ Design assurance |
| Output port | ---（0°） |
|---|---|
| Output port | ---（+90°） |

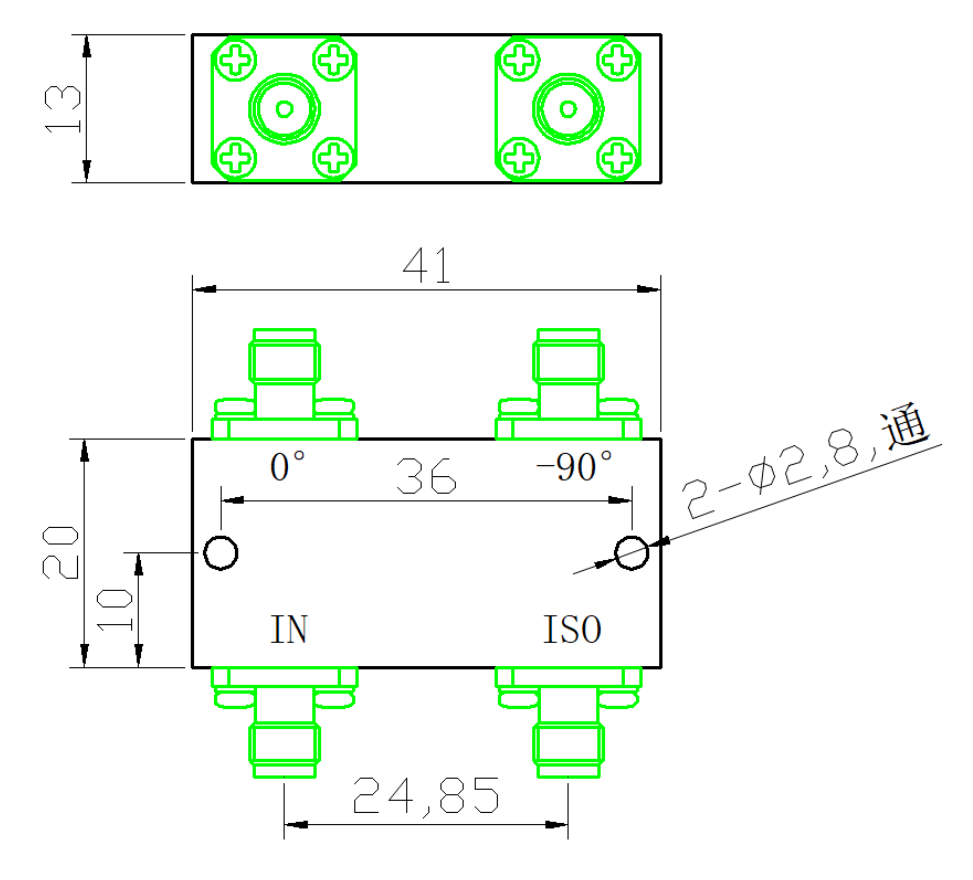

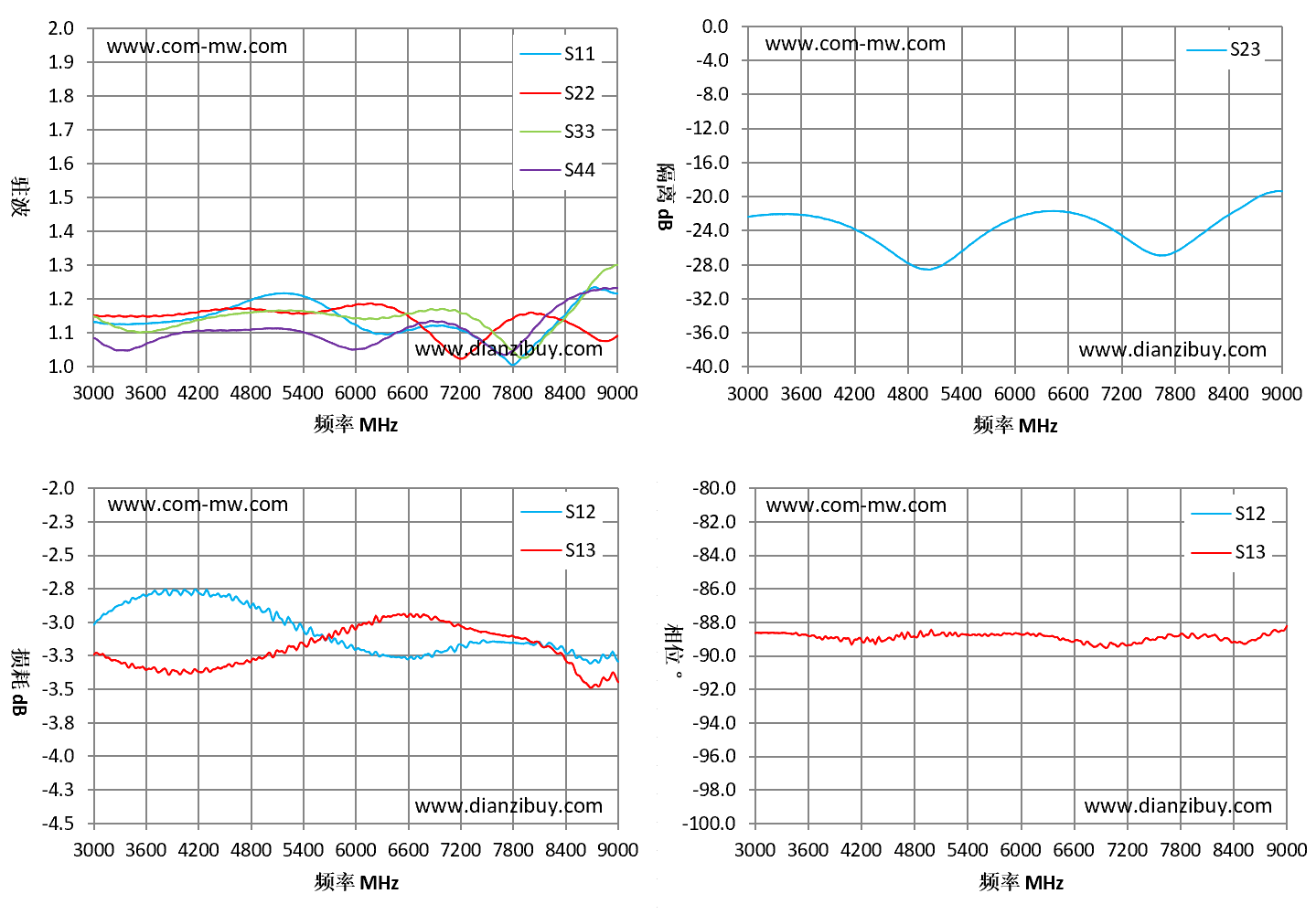

| Frequency(MHz) | S11 VSWR | S23 ISO dB | S12 Loss dB | S13 IL dB | S13 Phase (°) |
|---|---|---|---|---|---|
| 3000 | 1.13 | -22.4 | -3.02 | -3.24 | -88.64 |
| 3429 | 1.12 | -22.07 | -2.83 | -3.31 | -88.7 |
| 3857 | 1.13 | -22.64 | -2.8 | -3.39 | -88.9 |
| 4286 | 1.15 | -24.31 | -2.76 | -3.34 | -89.07 |
| 4714 | 1.19 | -27.3 | -2.87 | -3.31 | -88.66 |
| 5143 | 1.22 | -28.3 | -2.97 | -3.22 | -88.73 |
| 5571 | 1.19 | -25.11 | -3.1 | -3.13 | -88.78 |
| 6000 | 1.12 | -22.58 | -3.2 | -3.05 | -88.72 |
| 6429 | 1.1 | -21.71 | -3.26 | -2.95 | -89 |
| 6857 | 1.12 | -22.63 | -3.25 | -2.98 | -89.42 |
| 7286 | 1.1 | -25.2 | -3.16 | -3.05 | -89.21 |
| 7714 | 1.02 | -26.88 | -3.15 | -3.1 | -88.8 |
| 8143 | 1.08 | -24.09 | -3.18 | -3.19 | -88.81 |
| 8571 | 1.21 | -21.12 | -3.26 | -3.41 | -89.14 |
| 9000 | 1.22 | -19.38 | -3.29 | -3.45 | -88.21 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
