30~90MHz, 2W, 90°Hybrid, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

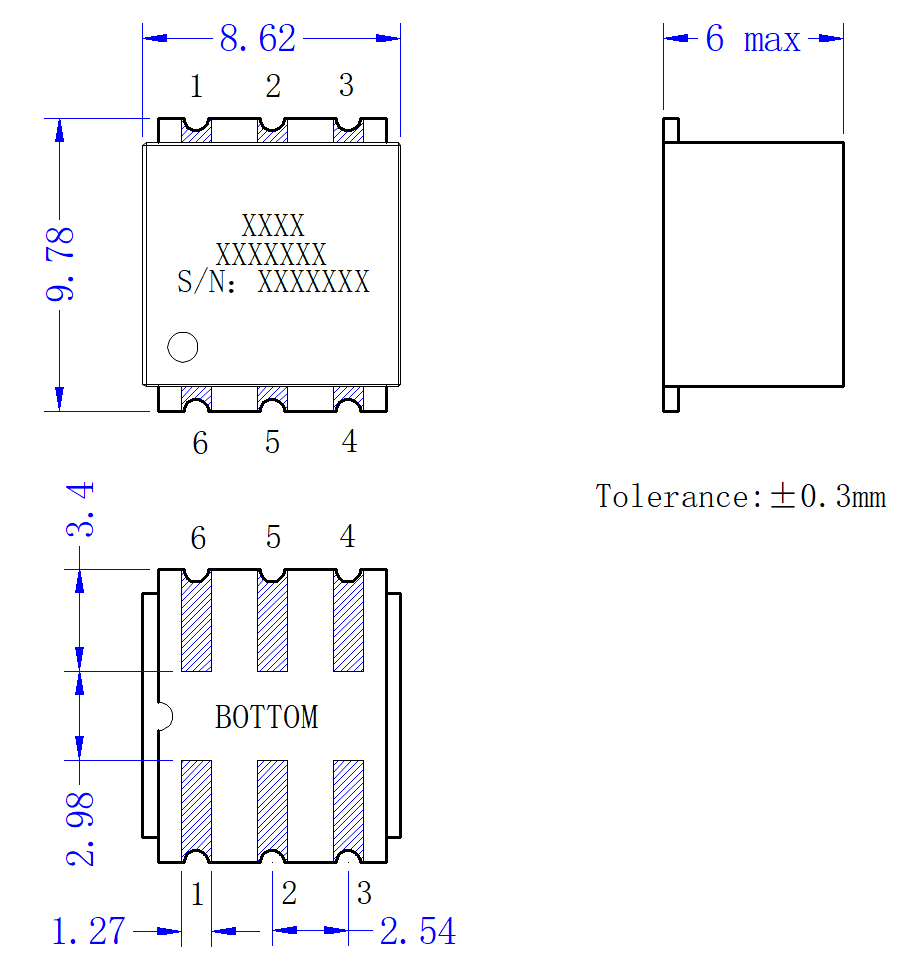

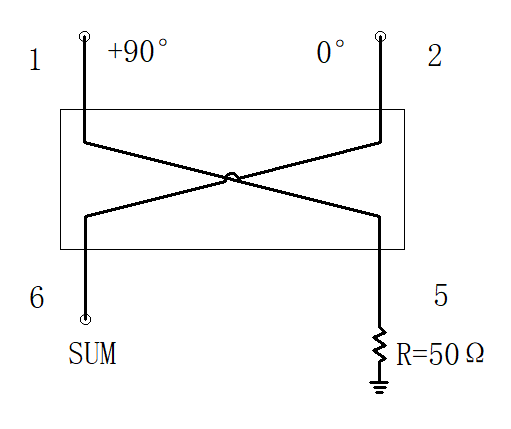

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 90 | MHz |
| IL | 0.6 | dB | ||
| Isolation | 20 | dB | ||
| VSWR | 1.35 | |||
| Amplitude balance | 1 | dB | ||
| Phase balance | ±3 | ° |
| Power Capacity | 2W Design assurance |
|---|---|
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | SMD |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| IN | 6 | --- | --- | --- |
|---|---|---|---|---|
| ISO | 5 (connected to a 50 Ω load) | --- | --- | --- |
| 0° | 1 | --- | --- | --- |
| -90° | 2 | --- | --- | --- |
| GND | 3，4 | --- | --- | --- |

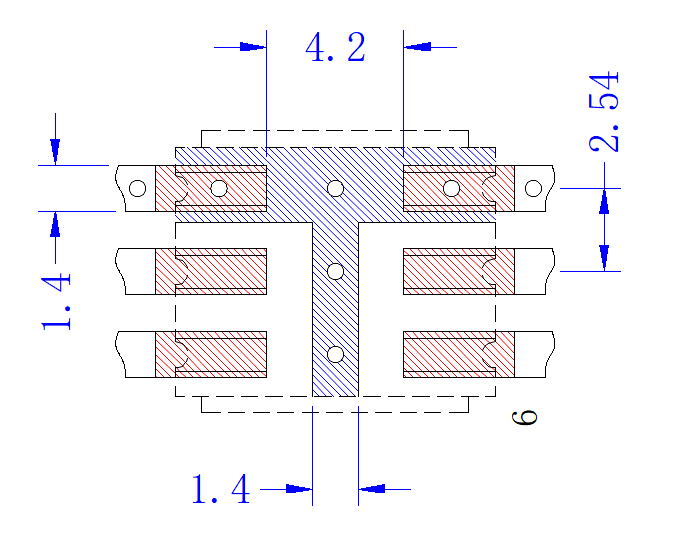

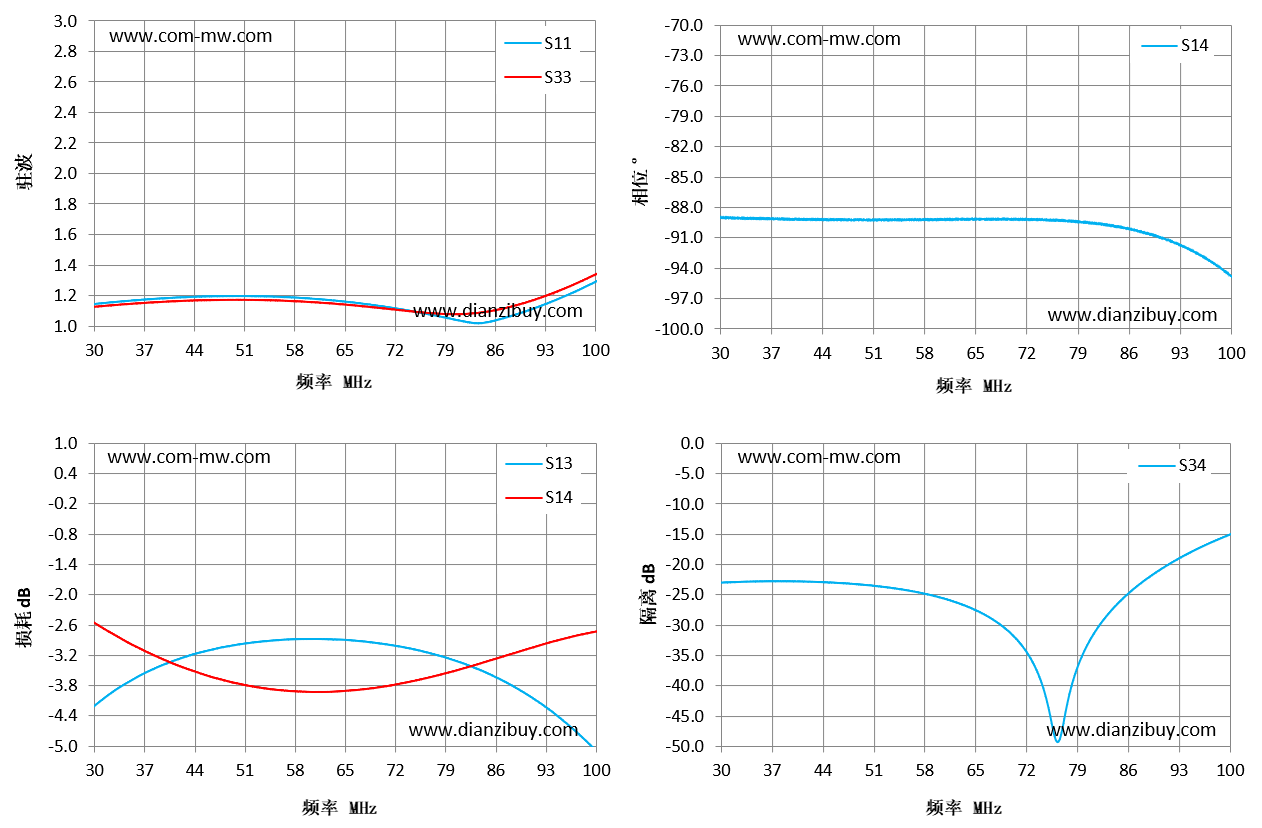

| Frequency(MHz) | S11 VSWR | S13 IL dB | S14 IL dB | S14 Phase (°) | S34 ISO dB |
|---|---|---|---|---|---|
| 30 | 1.14 | -4.2 | -2.57 | -89 | -22.95 |
| 35 | 1.16 | -3.71 | -2.98 | -89.14 | -22.75 |
| 45 | 1.19 | -3.13 | -3.58 | -89.24 | -22.92 |
| 50 | 1.2 | -2.99 | -3.77 | -89.24 | -23.35 |
| 60 | 1.18 | -2.88 | -3.93 | -89.2 | -25.38 |
| 65 | 1.16 | -2.89 | -3.91 | -89.19 | -27.54 |
| 75 | 1.09 | -3.09 | -3.7 | -89.27 | -43.93 |
| 80 | 1.04 | -3.29 | -3.52 | -89.48 | -33.96 |
| 90 | 1.09 | -3.95 | -3.1 | -90.9 | -21.05 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | The product supports 220 ℃ reflow soldering. |
