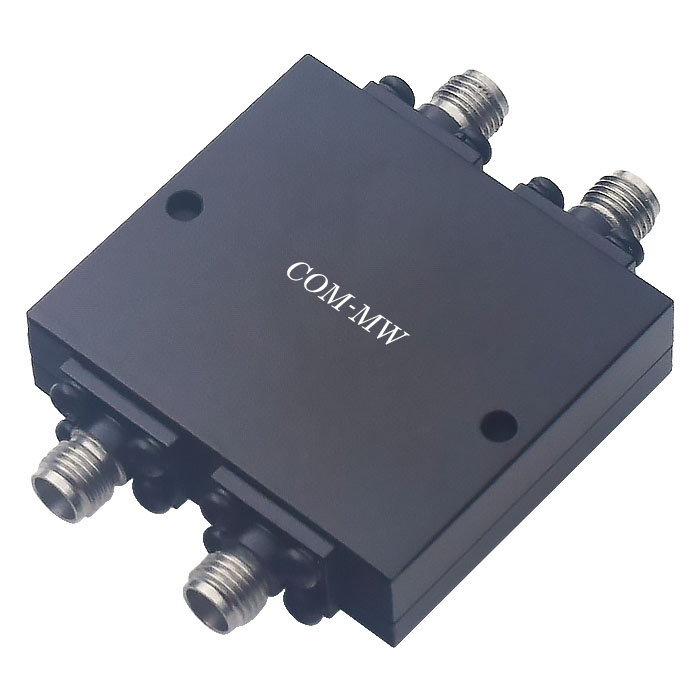

100~520MHz, 10W, 90°Hybrid, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 100 | ~ | 520 | MHz |
| IL | 1 | dB | ||
| Isolation | 20 | dB | ||
| VSWR | 1.5 | |||
| Amplitude balance | ±0.6 | dB | ||
| Phase balance | ±5 | ° |
| Power Capacity | 10W Design assurance |
| Phase | 90° Hybrid |
| Impedance | 50Ω |

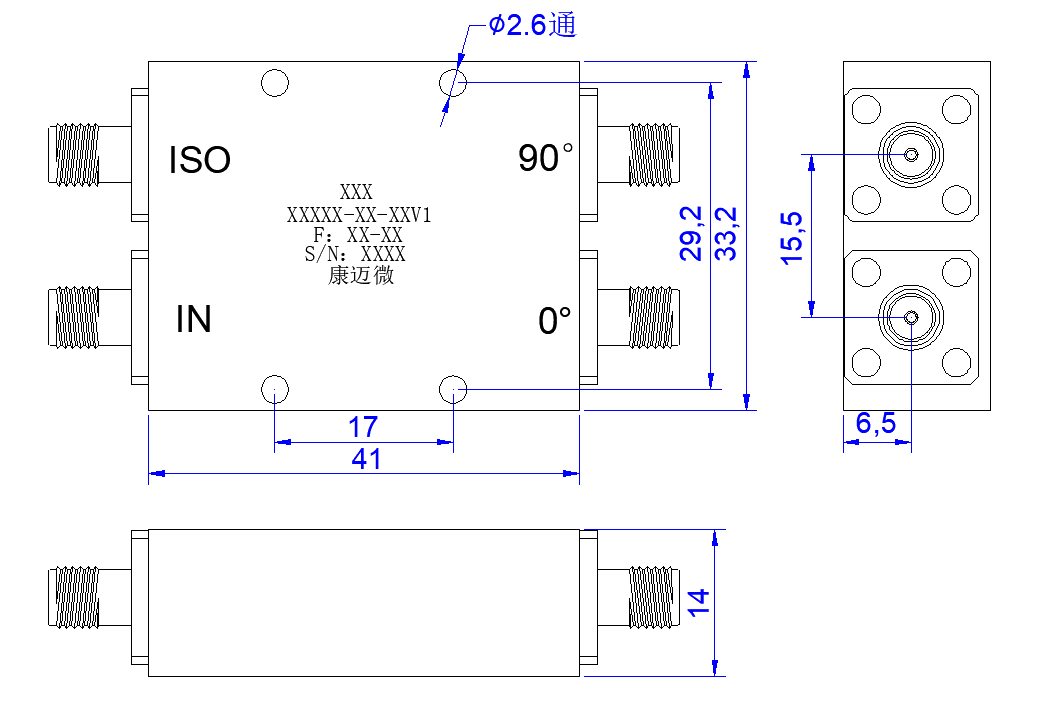

| Connector | SMA-F |
| Operation Temp. | -40~+85℃ Design assurance |

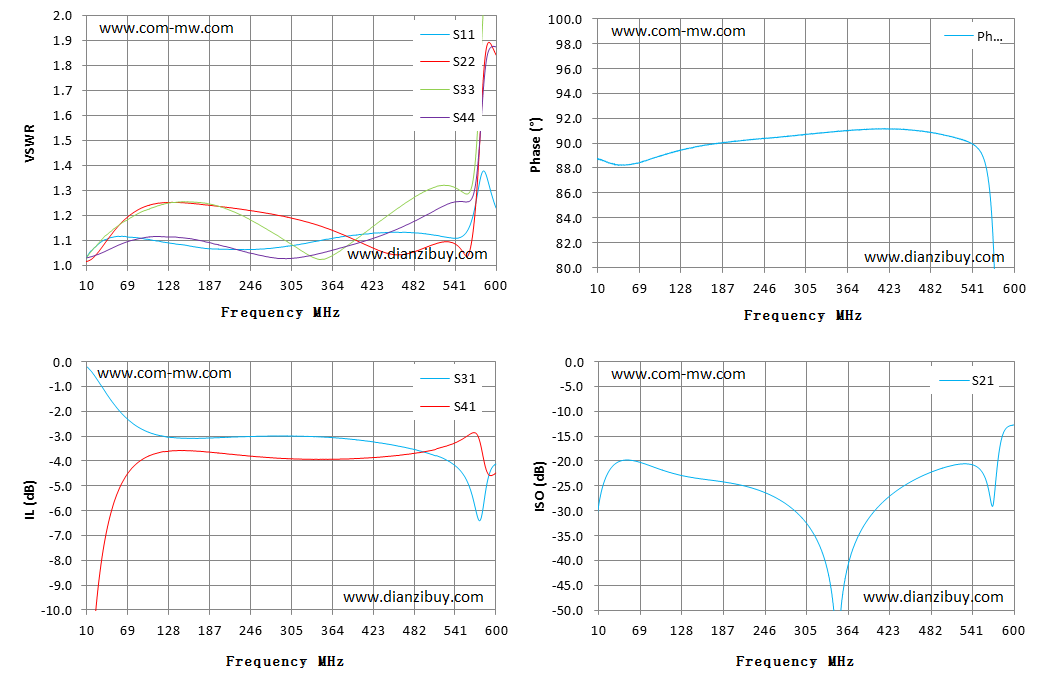

| Frequency MHz | S11 VSWR | S22 VSWR | S33 VSWR | S44 VSWR | S31 损耗 dB | S41 损耗 dB | Phase 相位 ° | S21 ISO dB |
|---|---|---|---|---|---|---|---|---|
| 10 | 1.04 | 1.02 | 1.03 | 1.03 | -0.19 | -16.6 | 88.7 | -28.5 |
| 52 | 1.12 | 1.15 | 1.15 | 1.08 | -1.79 | -5.5 | 88.3 | -19.8 |
| 94 | 1.11 | 1.24 | 1.22 | 1.11 | -2.77 | -3.9 | 88.9 | -21.5 |
| 136 | 1.09 | 1.25 | 1.25 | 1.12 | -3.06 | -3.6 | 89.6 | -23.1 |
| 179 | 1.07 | 1.24 | 1.25 | 1.10 | -3.08 | -3.6 | 90. | -24 |
| 221 | 1.07 | 1.23 | 1.22 | 1.07 | -3.03 | -3.7 | 90.3 | -25.2 |
| 263 | 1.07 | 1.21 | 1.16 | 1.04 | -3.00 | -3.8 | 90.5 | -27.5 |
| 305 | 1.08 | 1.19 | 1.09 | 1.03 | -2.99 | -3.9 | 90.7 | -32.5 |
| 347 | 1.10 | 1.16 | 1.03 | 1.05 | -3.03 | -3.9 | 91 | -55.7 |
| 389 | 1.12 | 1.11 | 1.09 | 1.08 | -3.11 | -3.9 | 91.1 | -32.4 |
| 431 | 1.13 | 1.06 | 1.18 | 1.12 | -3.26 | -3.9 | 91.1 | -26.2 |
| 474 | 1.13 | 1.05 | 1.26 | 1.17 | -3.48 | -3.7 | 90.9 | -22.7 |
| 516 | 1.12 | 1.09 | 1.32 | 1.23 | -3.80 | -3.5 | 90.5 | -20.8 |
| 558 | 1.14 | 1.04 | 1.29 | 1.26 | -4.78 | -3 | 88.5 | -23.1 |
| 600 | 1.23 | 1.84 | 2.07 | 1.88 | -4.12 | -4.5 | 73 | -12.7 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
