Product features

Broadband, high-power.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	1	~	750	MHz
IL		1.2	1.8	dB
Isolation	20	22		dB
VSWR		1.5
Amplitude balance		0.4	0.9	dB
Phase balance		7	10	°

Other parameters

Power	1W
Phase	180°功分器
Impedance	50Ω
Connector	SMA-K
Connector material	Stainless steel
Product shell material	Aluminium
Work Temp.	-40~+85℃ Design assurance
Quality Grade	Industrial grade

Port Definition

Input port	0
phase 0° port	1
phase 180° port	2

Typical test data

Frequency MHz	S11 VSWR	S12 IL (dB)	S13 IL (dB)	S13 Phase (°)	S12 ISO
1	1.17	-4.42	-3.6	180.25	-21.48
72	1.1	-3.63	-3.64	179.38	-22.6
144	1.13	-3.68	-3.66	178.8	-22.59
215	1.14	-3.74	-3.68	178.28	-22.53
286	1.18	-3.8	-3.69	177.9	-22.41
358	1.2	-3.89	-3.7	177.54	-22.27
429	1.24	-3.97	-3.7	177.28	-22.14
501	1.27	-4.11	-3.73	177.02	-22.11
572	1.3	-4.17	-3.65	176.95	-22.06
643	1.33	-4.29	-3.63	177.54	-22.11
715	1.37	-4.45	-3.62	177	-22.31
786	1.4	-4.74	-3.72	176.87	-22.76
857	1.44	-4.92	-3.7	176.61	-23.46
929	1.47	-4.93	-3.48	179.85	-23.83
1000	1.51	-5.25	-3.55	177.12	-24.77

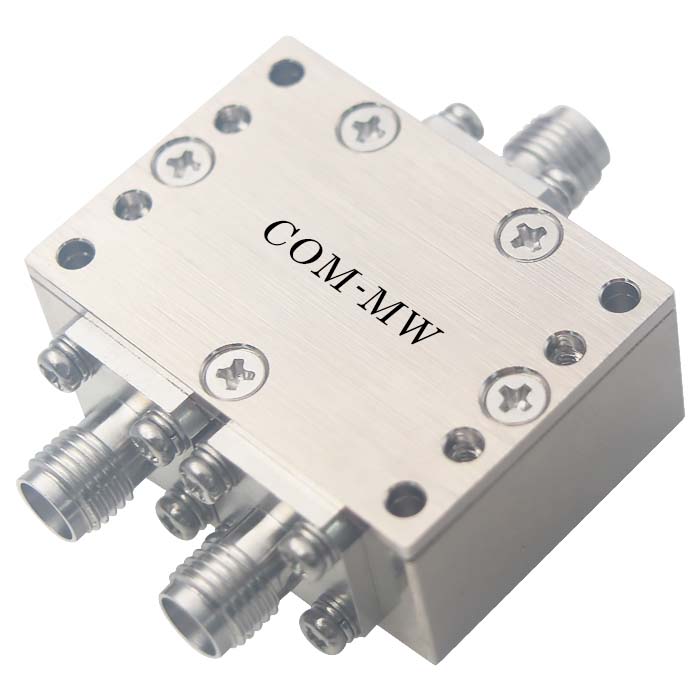

Reference picture

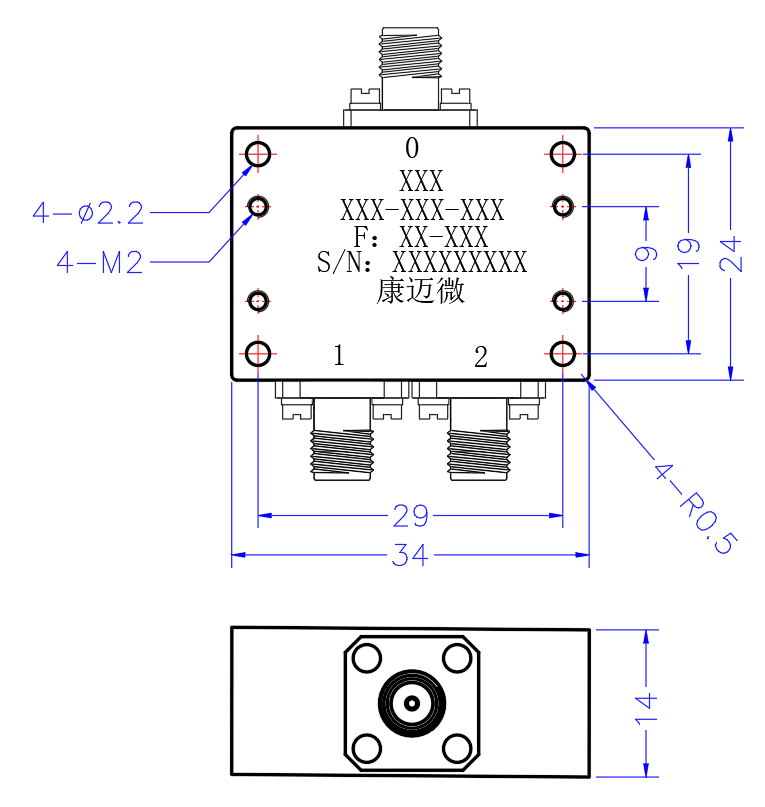

Configuration(mm)

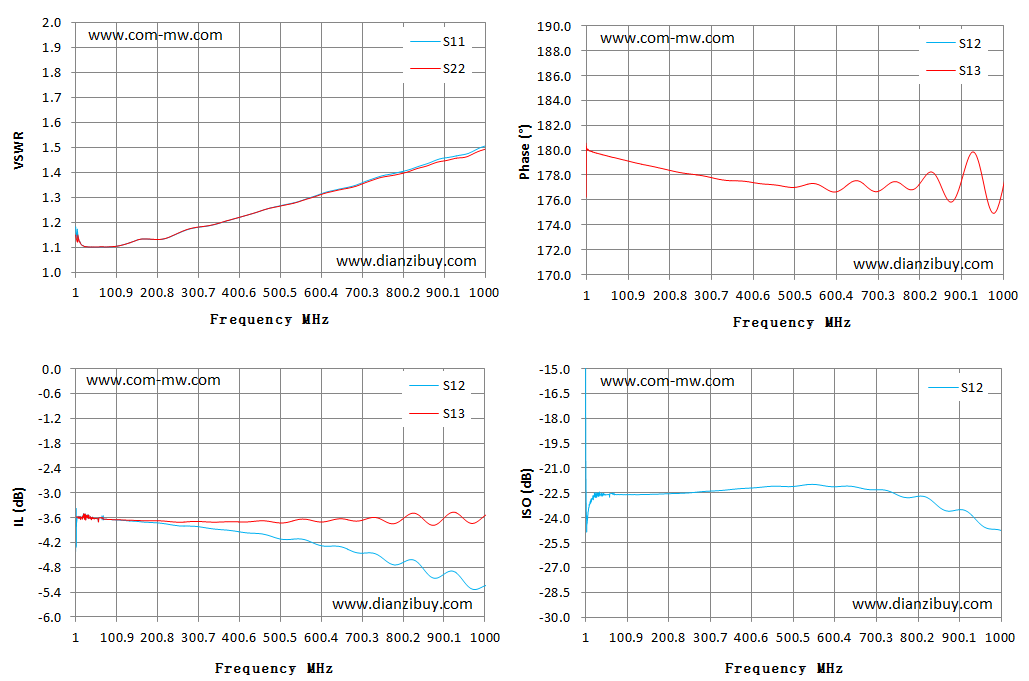

Typical test curve

Note

1	Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution.
2	If the temperature is higher than 125℃, consult with us before ordering.

Hybrid ZHC8-1-750-3232
