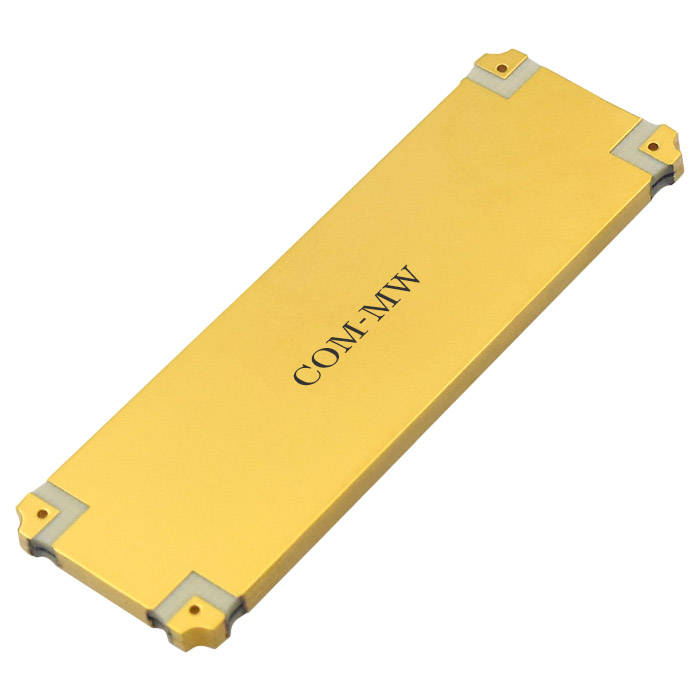

0.8~3GHz, 150W, 90°Hybrid, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.

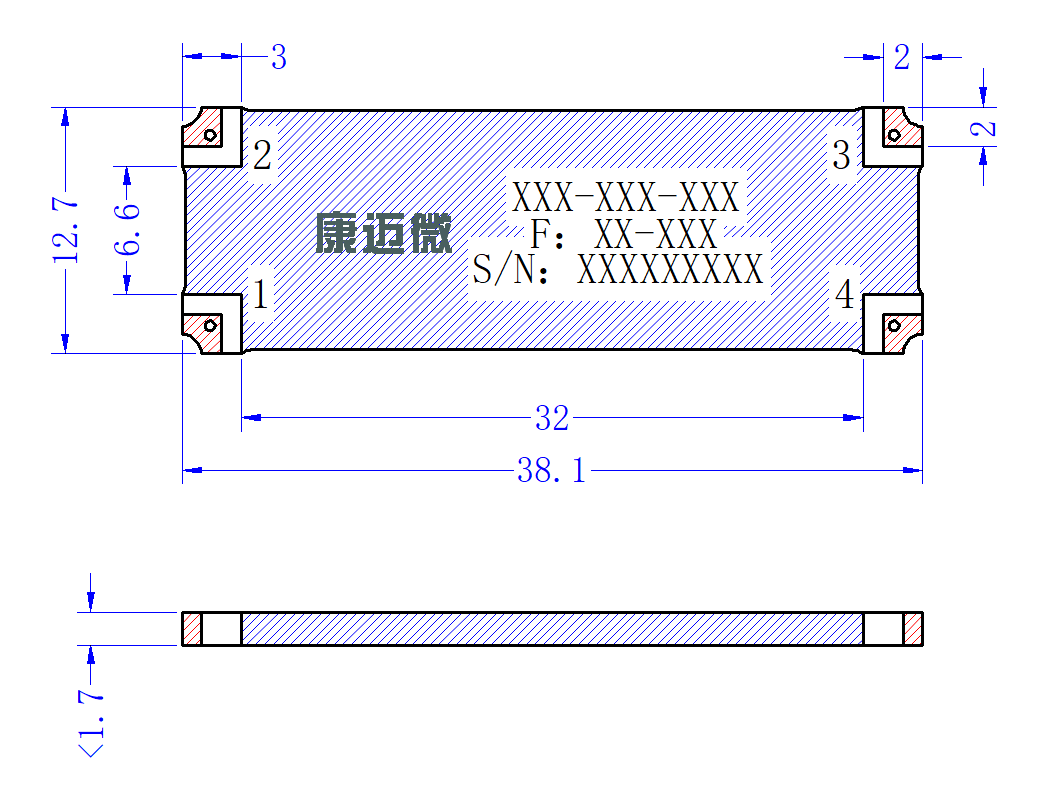

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.8 | ~ | 3 | GHz |
| IL | 0.5 | 0.7 | dB | |
| Isolation | 16 | 18 | dB | |
| VSWR | 1.4 | |||
| Amplitude balance | ±0.8 | dB | ||
| Phase balance | ±5 | ° |
| Power | 150W Design assurance |
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | SMD |
| Surface | Immersion Gold |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |
| Quality Grade | Industrial grade |
| IN | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| ISO | 4 | 3 | 2 | 1 |
| OUT1 | 2 (-90°) | 1（-90°） | 4（-90°） | 3（-90°） |
| OUT2 | 3（0°） | 4（0°） | 1（0°） | 2（0°） |

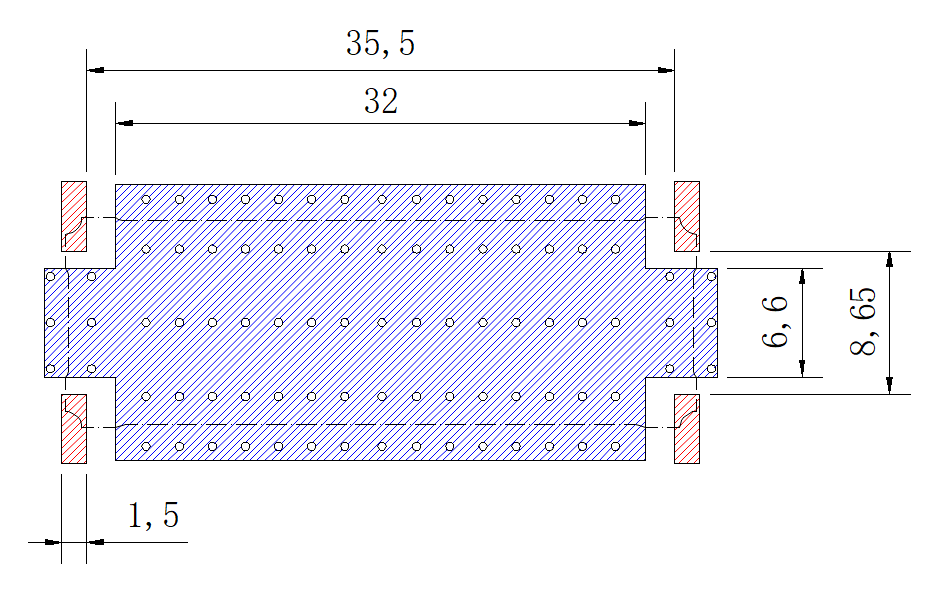

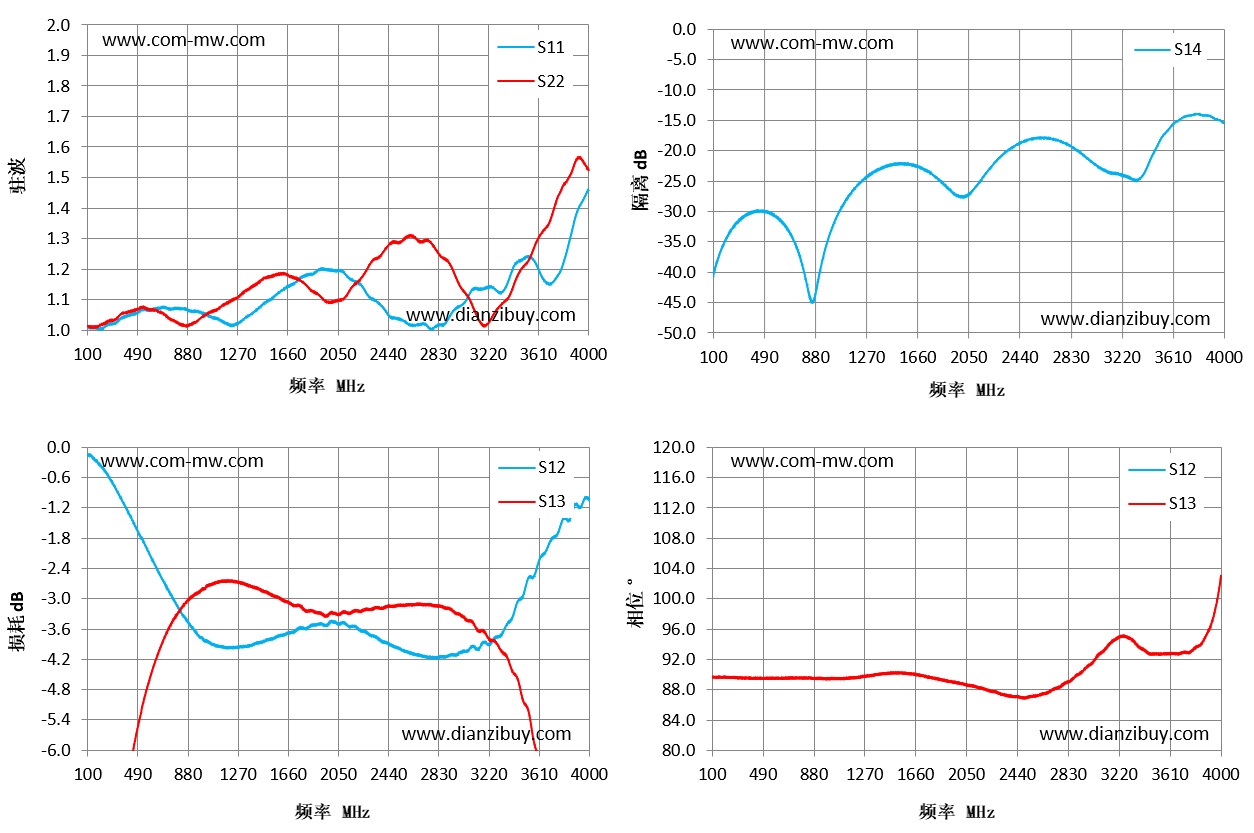

| Frequency(MHz) | S11 VSWR | S12 IL dB | S13 IL dB | S14 ISO dB | S12 Phase (°) | S13 Phase (°) |
|---|---|---|---|---|---|---|
| 100 | 1.01 | -0.14 | -17.7 | -40.69 | 0.02 | 89.69 |
| 379 | 1.04 | -1.11 | -7.16 | -30.24 | -0.01 | 89.53 |
| 657 | 1.07 | -2.5 | -4.02 | -32.48 | -0.01 | 89.55 |
| 936 | 1.06 | -3.65 | -2.91 | -37.96 | -0.03 | 89.49 |
| 1214 | 1.02 | -3.97 | -2.65 | -25.4 | -0.01 | 89.64 |
| 1493 | 1.09 | -3.81 | -2.87 | -22.14 | -0.01 | 90.22 |
| 1771 | 1.17 | -3.58 | -3.19 | -23.78 | -0.01 | 89.63 |
| 2050 | 1.19 | -3.5 | -3.31 | -27.19 | -0.02 | 88.61 |
| 2329 | 1.1 | -3.75 | -3.19 | -20.27 | 0.01 | 87.35 |
| 2607 | 1.02 | -4.07 | -3.12 | -17.82 | -0.04 | 87.29 |
| 2886 | 1.02 | -4.15 | -3.19 | -19.97 | -0.05 | 89.81 |
| 3164 | 1.13 | -3.9 | -3.63 | -23.66 | 0.12 | 94.38 |
| 3443 | 1.22 | -3.06 | -4.59 | -21.24 | -0.01 | 92.82 |
| 3721 | 1.16 | -1.79 | -7.92 | -14.23 | 0.02 | 92.95 |
| 4000 | 1.46 | -1.05 | -19.06 | -15.41 | 0.01 | 103.07 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | The product supports 220 ℃ reflow soldering |
