Downloads

↓ Datasheet ↓ S-Parameters 1.4 MB ↓ PCB Layout 262 KB

Product features

Broadband, high-power.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	0.65	~	2.85	GHz
IL		0.6	0.7	dB
Isolation	16	18		dB
VSWR			1.4
Amplitude balance			±0.8	dB
Phase balance			±5	°

Other parameters

Power	150W Design assurance
Phase	90° Hybrid
Impedance	50Ω
Connector	SMD
Surface	Immersion Gold
Work Temp.	-40~+85℃ Design assurance
Storage Temp.	-55~+125℃ Design assurance
Quality Grade	Industrial grade

Port Definition

IN	1	2	3	4
ISO	4	3	2	1
OUT1	2(-90°)	1（-90°）	4（-90°）	3（-90°）
OUT2	3（0°）	4（0°）	1（0°）	2（0°）

Typical test data

Frequency(GHz)	S11 VSWR	S12 IL dB	S13 IL dB	S12 ISO dB	S13 Phase (°)
0.4	1.13	-1.35	-6.31	-26.39	90.15
0.59	1.09	-2.33	-4.24	-25.21	90.23
0.77	1.11	-3.03	-3.37	-28.83	89.88
0.96	1.07	-3.36	-3.12	-26.85	89.95
1.14	1.03	-3.33	-3.23	-21.6	90.16
1.33	1.17	-3.1	-3.59	-20.6	89.6
1.51	1.31	-2.81	-4.06	-24.88	89.15
1.7	1.39	-2.68	-4.36	-35.54	90.07
1.89	1.33	-2.84	-4.17	-21.24	90.78
2.07	1.24	-3.16	-3.76	-18.82	90.07
2.26	1.12	-3.5	-3.38	-21.46	89.66
2.44	1.02	-3.71	-3.16	-35.24	89.72
2.63	1.15	-3.63	-3.28	-26.1	89.6
2.81	1.26	-3.13	-3.95	-22.92	89.7
3	1.26	-2.32	-5.7	-19.74	91.03

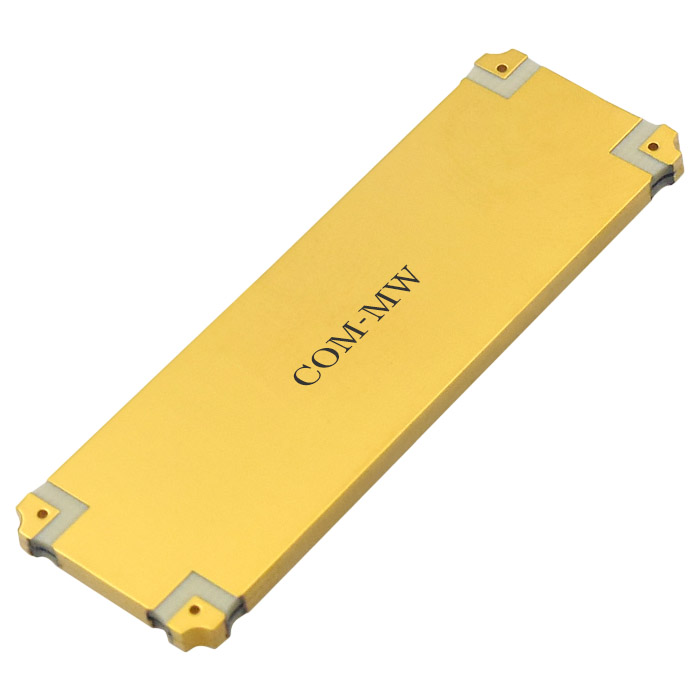

Reference picture

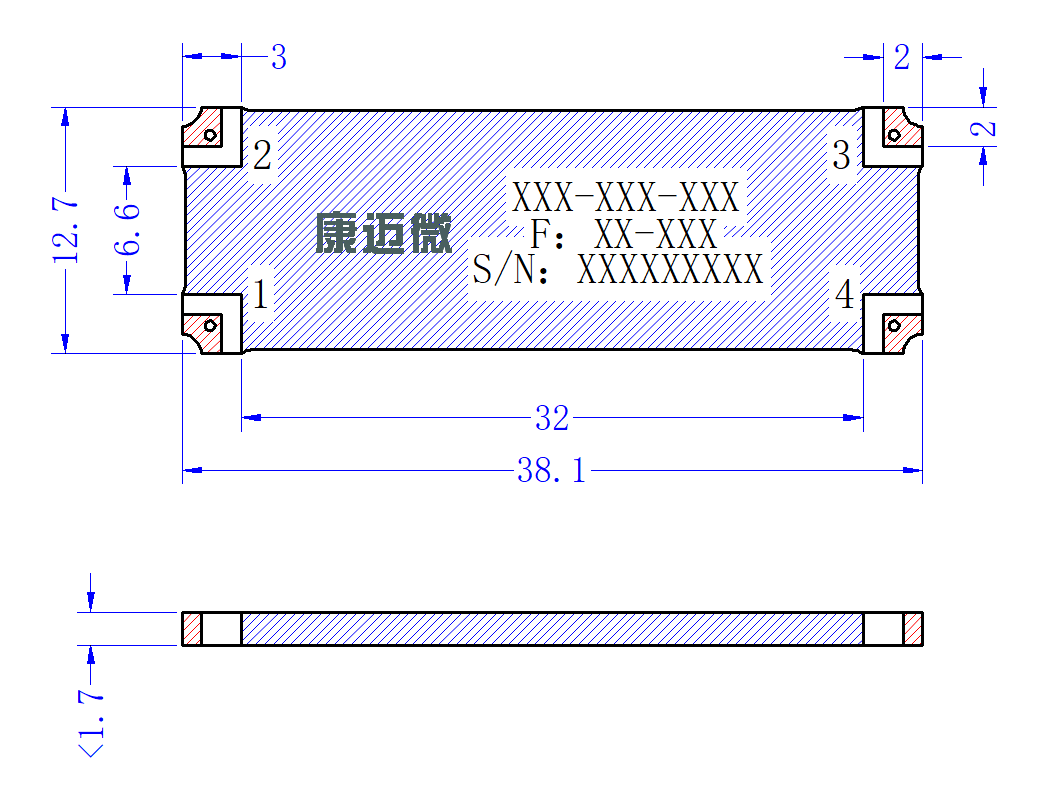

Configuration(mm)

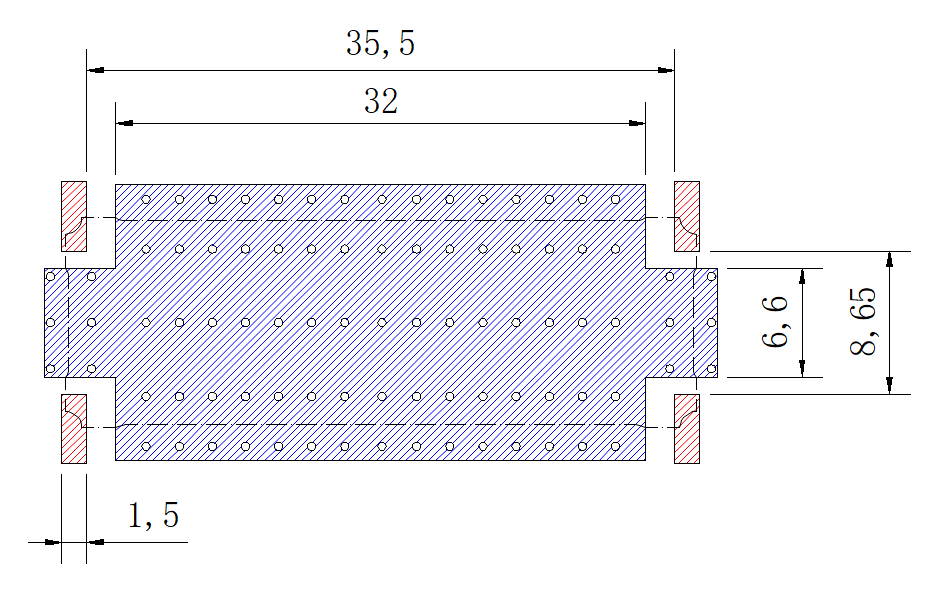

Suggested PCB Layout (mm)

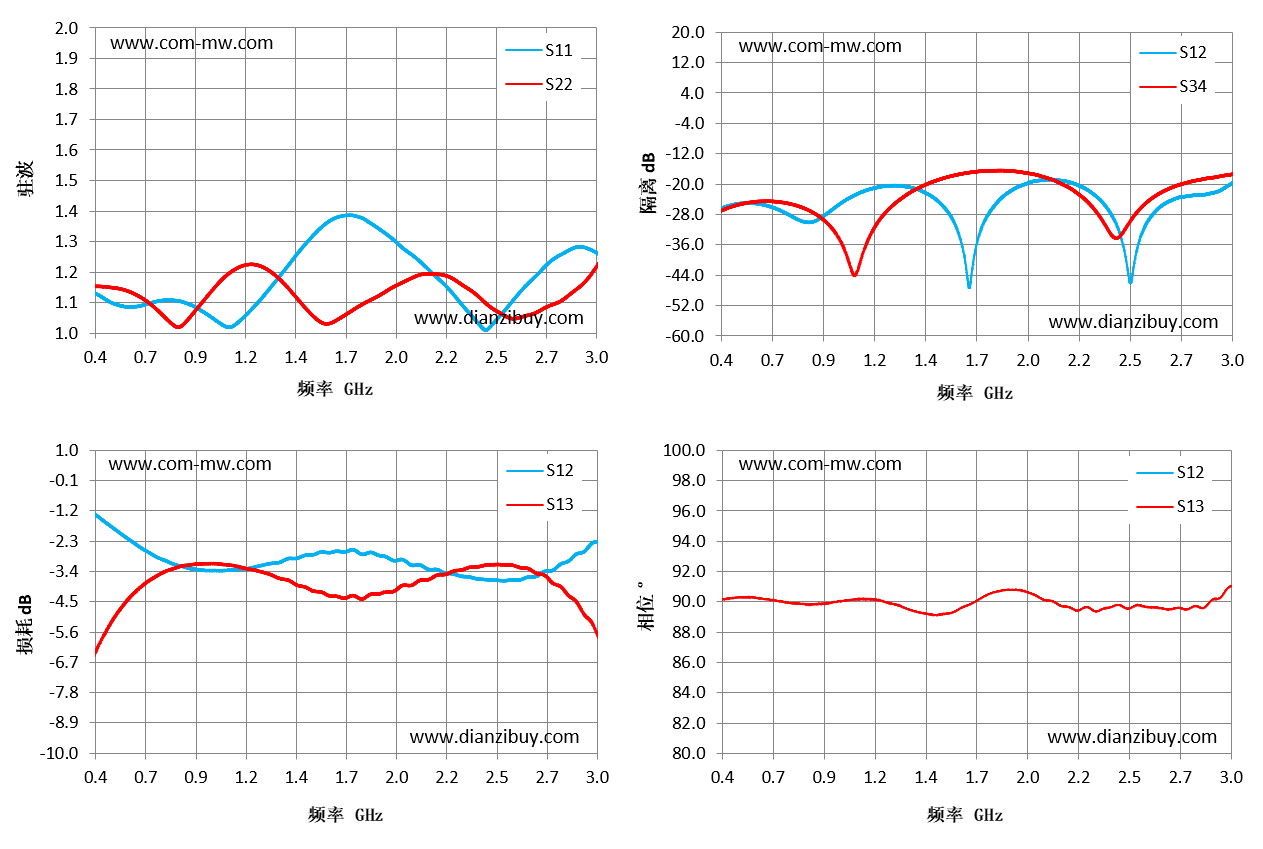

Typical test curve

Note

1	Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution.
2	The product supports 220 ℃ reflow soldering

Hybrid ZHC8-0.65-2.85G-2586
