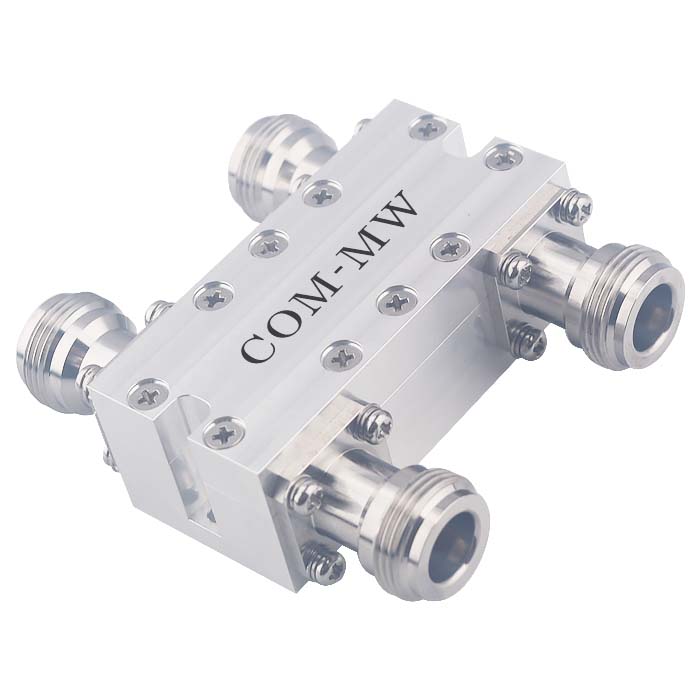

2~6GHz, 400W, 90°Hybrid, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 6 | GHz |
| IL | 0.7 | dB | ||
| Theoretical loss | 3 | dB | ||
| Isolation | 18 | dB | ||
| VSWR | 1.3 | |||
| Amplitude balance | 1.1 | dB | ||
| Phase balance | 6 | ° |
| Power Capacity | 400W Design assurance |
| Phase | 90° Hybrid |
| Connector | N -F or K |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |

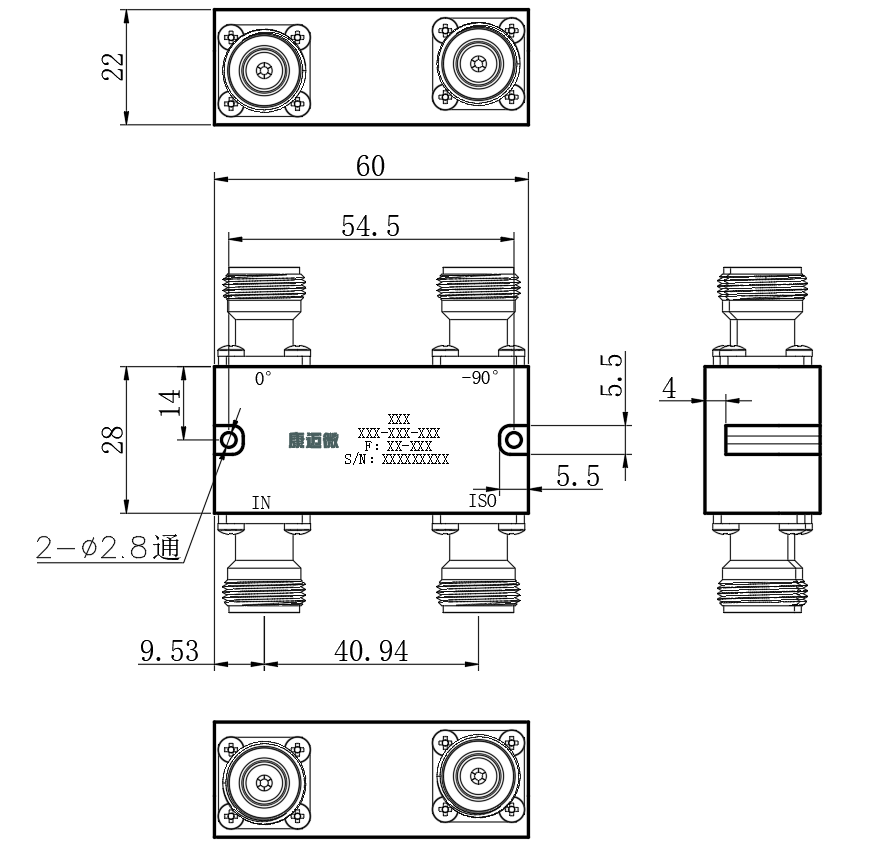

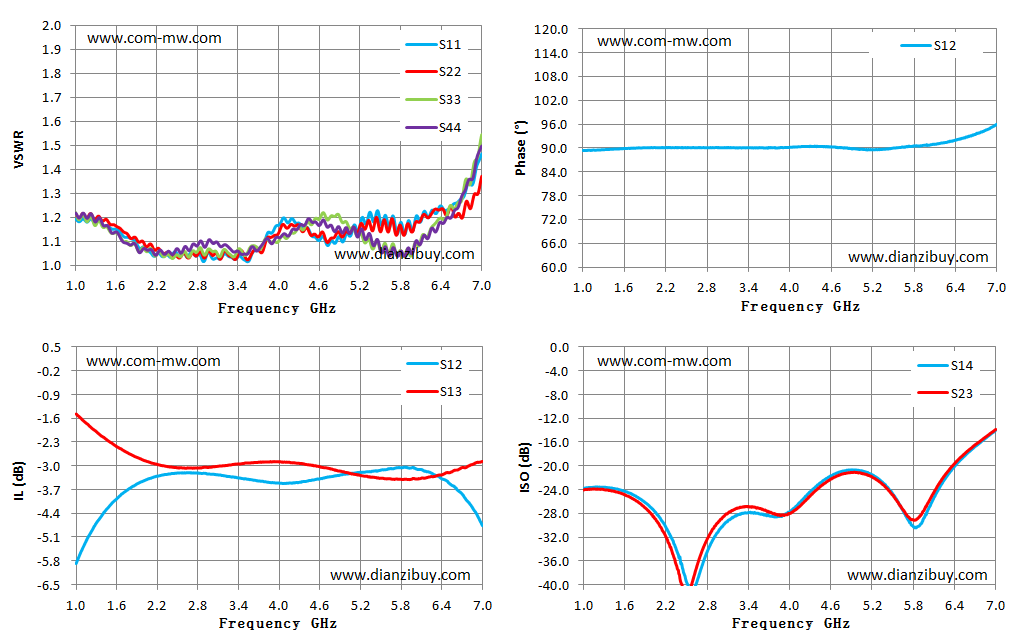

| Frequency GHz | S11 VSWR | S33 VSWR | S12 IL dB | S12 Phase (°) | S14 ISO dB |
|---|---|---|---|---|---|
| 1.00 | 1.19 | 1.22 | -5.88 | 89.41 | -23.80 |
| 1.43 | 1.16 | 1.16 | -4.34 | 89.73 | -23.77 |
| 1.86 | 1.11 | 1.09 | -3.59 | 90.05 | -25.79 |
| 2.29 | 1.04 | 1.04 | -3.26 | 90.11 | -32.31 |
| 2.71 | 1.06 | 1.05 | -3.21 | 90.11 | -37.32 |
| 3.14 | 1.03 | 1.04 | -3.28 | 90.16 | -28.96 |
| 3.57 | 1.02 | 1.07 | -3.40 | 90.06 | -28.05 |
| 4.00 | 1.17 | 1.10 | -3.51 | 90.26 | -27.71 |
| 4.43 | 1.16 | 1.18 | -3.44 | 90.43 | -23.06 |
| 4.86 | 1.10 | 1.21 | -3.29 | 90.01 | -20.69 |
| 5.29 | 1.17 | 1.10 | -3.18 | 89.63 | -22.17 |
| 5.71 | 1.19 | 1.08 | -3.07 | 90.38 | -28.81 |
| 6.14 | 1.22 | 1.13 | -3.16 | 91.10 | -24.56 |
| 6.57 | 1.25 | 1.24 | -3.59 | 92.73 | -18.13 |
| 7.00 | 1.47 | 1.55 | -4.77 | 96.02 | -14.01 |
