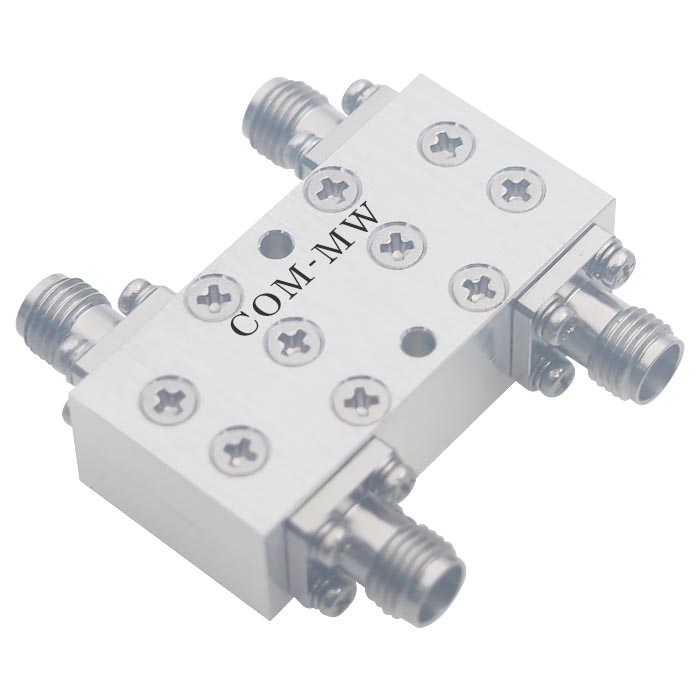

18~40GHz, 10W, 90°Hybrid, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 40 | GHz |
| IL | 2.4 | Excluding allocation loss 3dB | ||
| Isolation | 14 | dB | ||
| VSWR | 1.6 | |||
| Amplitude balance | ±0.9 | dB | ||
| Phase balance | ±10 | ° |
| Power Capacity | 10W Design assurance |
|---|---|
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Product shell material | Aluminium |
| Operation Temp. | -40~+85℃ Design assurance |

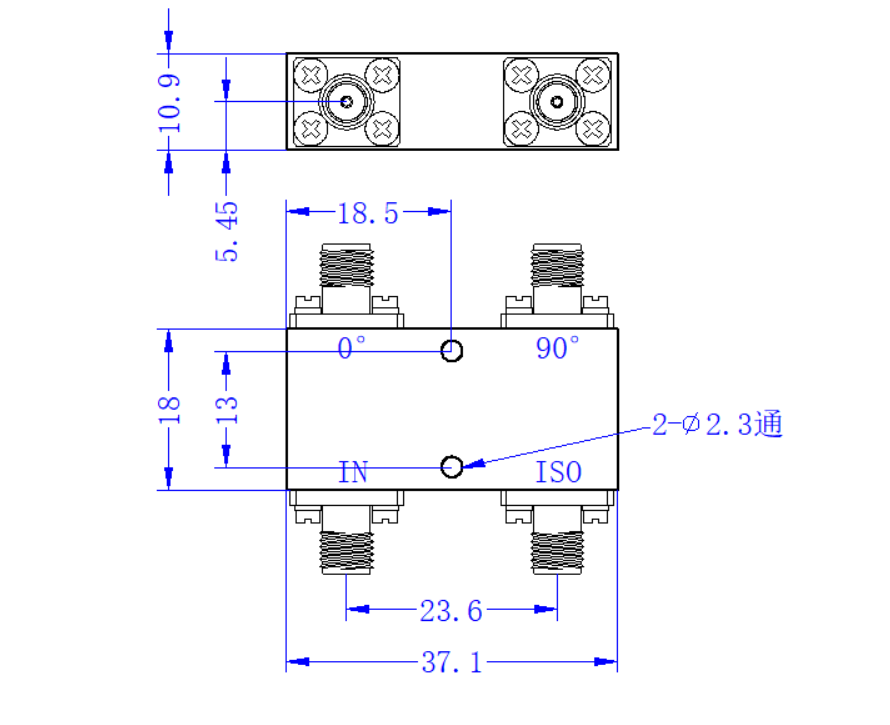

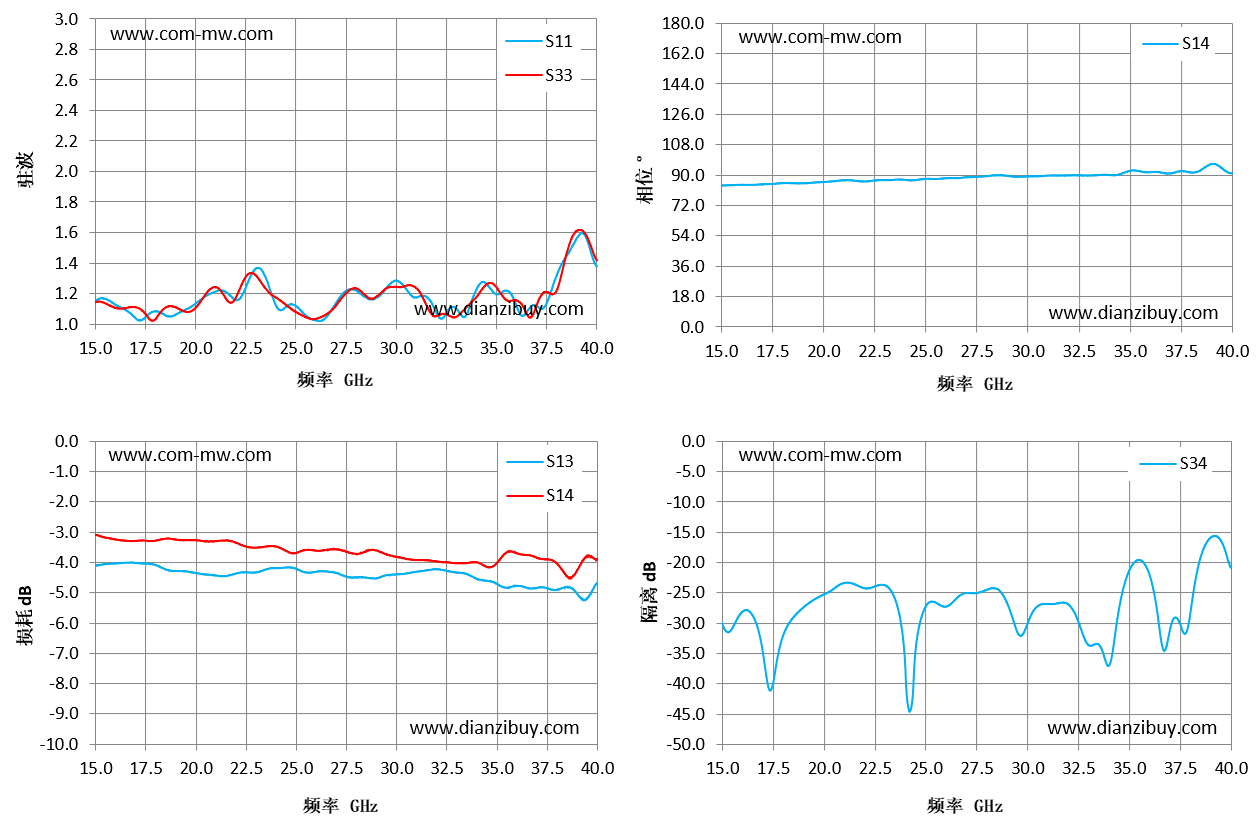

| Frequency(GHz) | S11 VSWR | S33 VSWR | S13 IL dB | S14 IL dB | S14 Phase (°) | S34 ISO dB |
|---|---|---|---|---|---|---|
| 15 | 1.15 | 1.14 | -4.1 | -3.1 | 83.59 | -30.16 |
| 16.79 | 1.07 | 1.11 | -4 | -3.3 | 84.08 | -31.28 |
| 18.57 | 1.05 | 1.11 | -4.24 | -3.22 | 84.96 | -28.84 |
| 20.36 | 1.17 | 1.17 | -4.39 | -3.31 | 85.98 | -24.7 |
| 22.14 | 1.16 | 1.21 | -4.34 | -3.4 | 86.09 | -24.33 |
| 23.93 | 1.14 | 1.18 | -4.19 | -3.48 | 87.1 | -33.94 |
| 25.71 | 1.04 | 1.03 | -4.33 | -3.6 | 87.68 | -27.07 |
| 27.5 | 1.22 | 1.2 | -4.47 | -3.66 | 88.81 | -25.09 |
| 29.29 | 1.2 | 1.21 | -4.46 | -3.69 | 89.01 | -29.4 |
| 31.07 | 1.18 | 1.23 | -4.3 | -3.93 | 89.63 | -26.88 |
| 32.86 | 1.11 | 1.04 | -4.32 | -4.03 | 89.62 | -32.96 |
| 34.64 | 1.24 | 1.27 | -4.61 | -4.18 | 90.97 | -25.32 |
| 36.43 | 1.06 | 1.09 | -4.82 | -3.76 | 91.69 | -29.34 |
| 38.21 | 1.39 | 1.31 | -4.86 | -4.21 | 91.51 | -23.85 |
| 40 | 1.38 | 1.42 | -4.67 | -3.93 | 91.01 | -20.95 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
