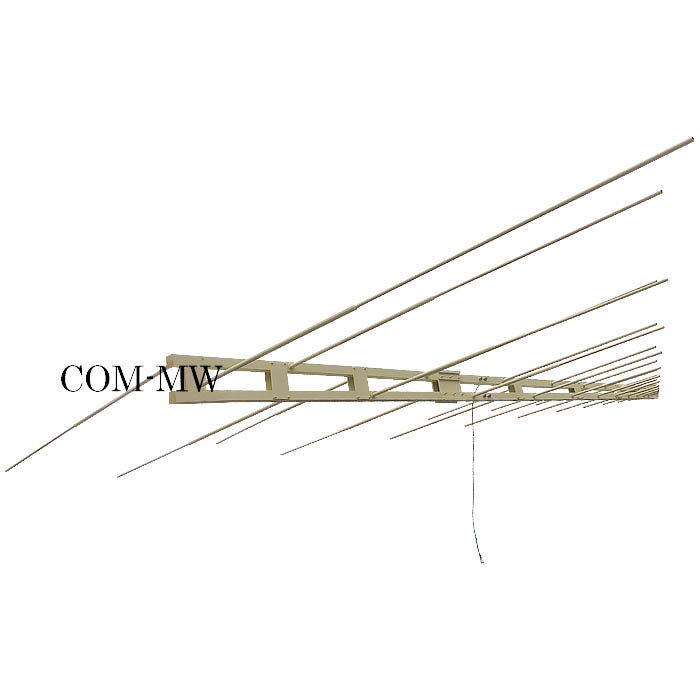

Frequency20~512MHz, Gain5.5dBi, Vertical polarization, N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
It has characteristics such as medium gain, wide operating frequency band, and good performance consistency within the operating frequency band.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 20 | ~ | 512 | MHz |
| Gain | 5.5 | dBi | ||
| VSWR | 2.5 | |||
| 3dB Beamwidth | 40-100 | ° |
| Polarization | Vertical polarization |
| Power Capacity | 1000W Design assurance |
| Connector | N-K |

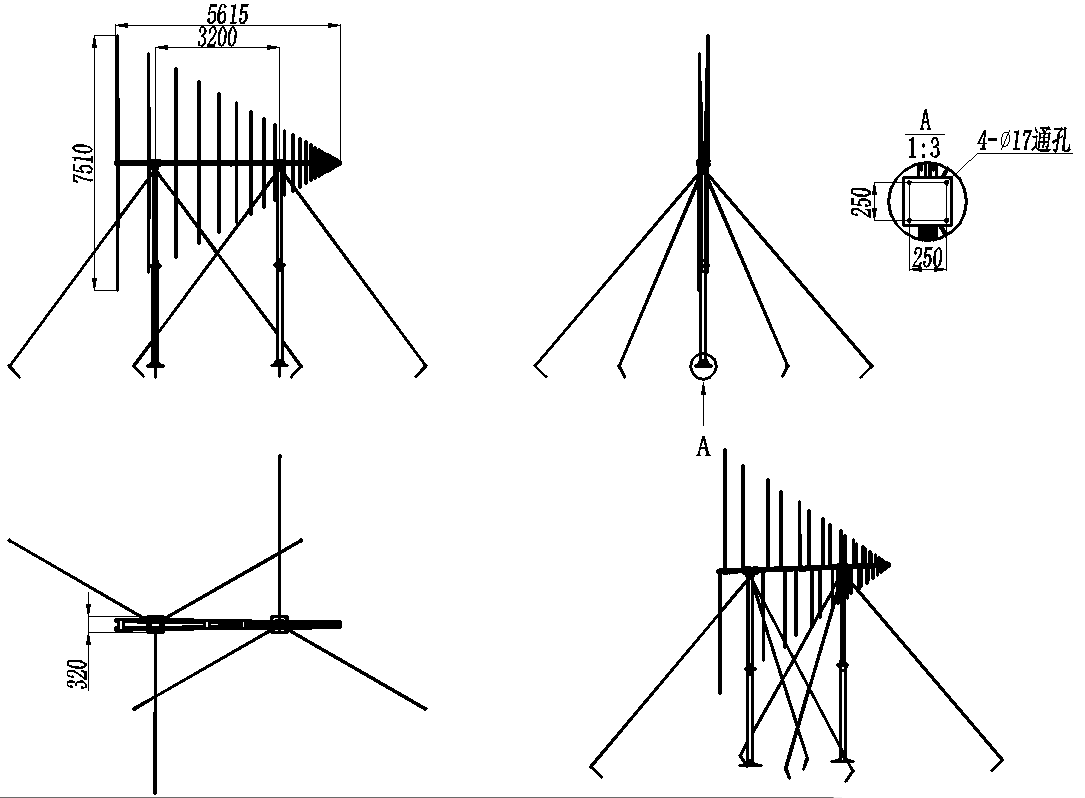

| Outline size | 5615 * 320 * 7510mm without bracket |
| Estimated weight | 60Kg |
| Surface | Grey |
| Operation Temp. | -25~+60℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |
| Other | The customer should provide the mounting bracket |
1. Non professionals are not allowed to disassemble.
/
