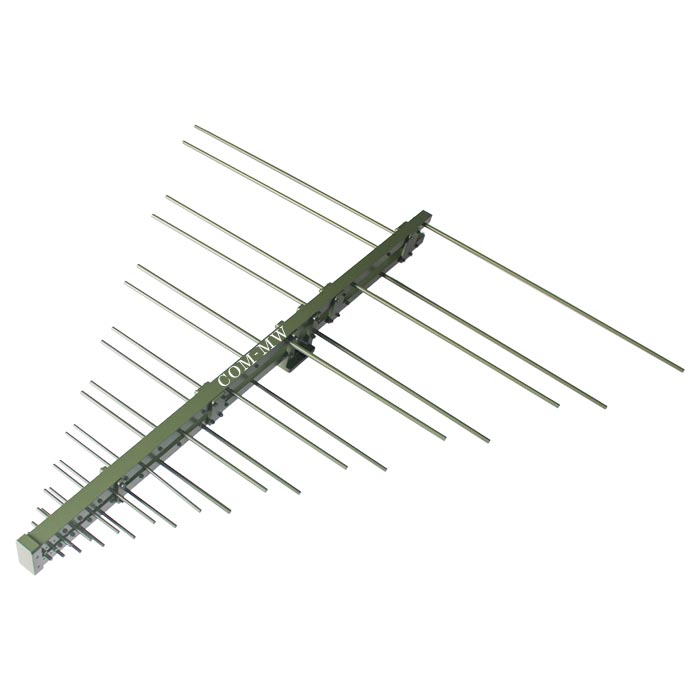

Frequency100~2000MHz, Gain5dBi, Horizontal polarization, N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
It has characteristics such as medium gain, wide operating frequency band, and good performance consistency within the operating frequency band.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|

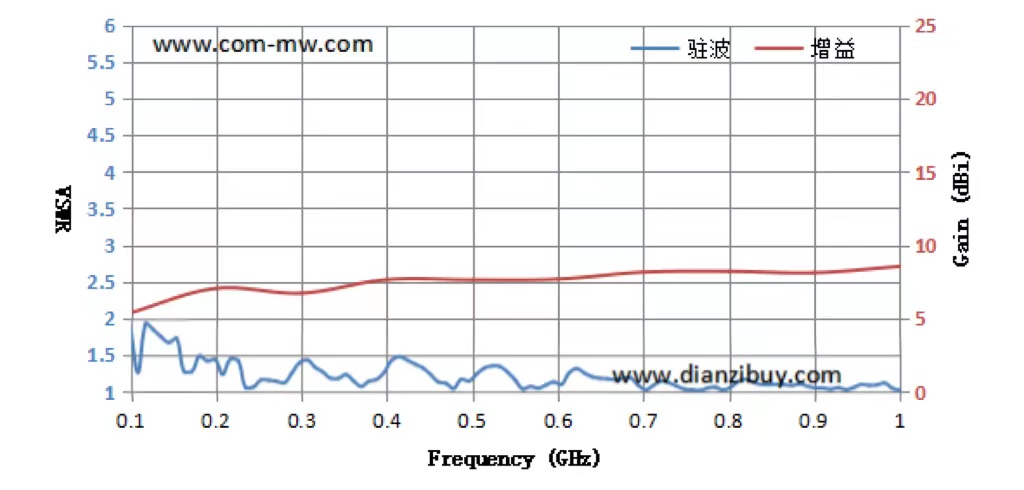

| Frequency | 100 | ~ | 2000 | MHz |
| Gain | 5 | dBi | ||
| VSWR | 2 |
| Polarization | Horizontal polarization |
| Power Capacity | 200W Design assurance |
| Connector | N -K |
| Connector material | Housing 304 stainless steel |

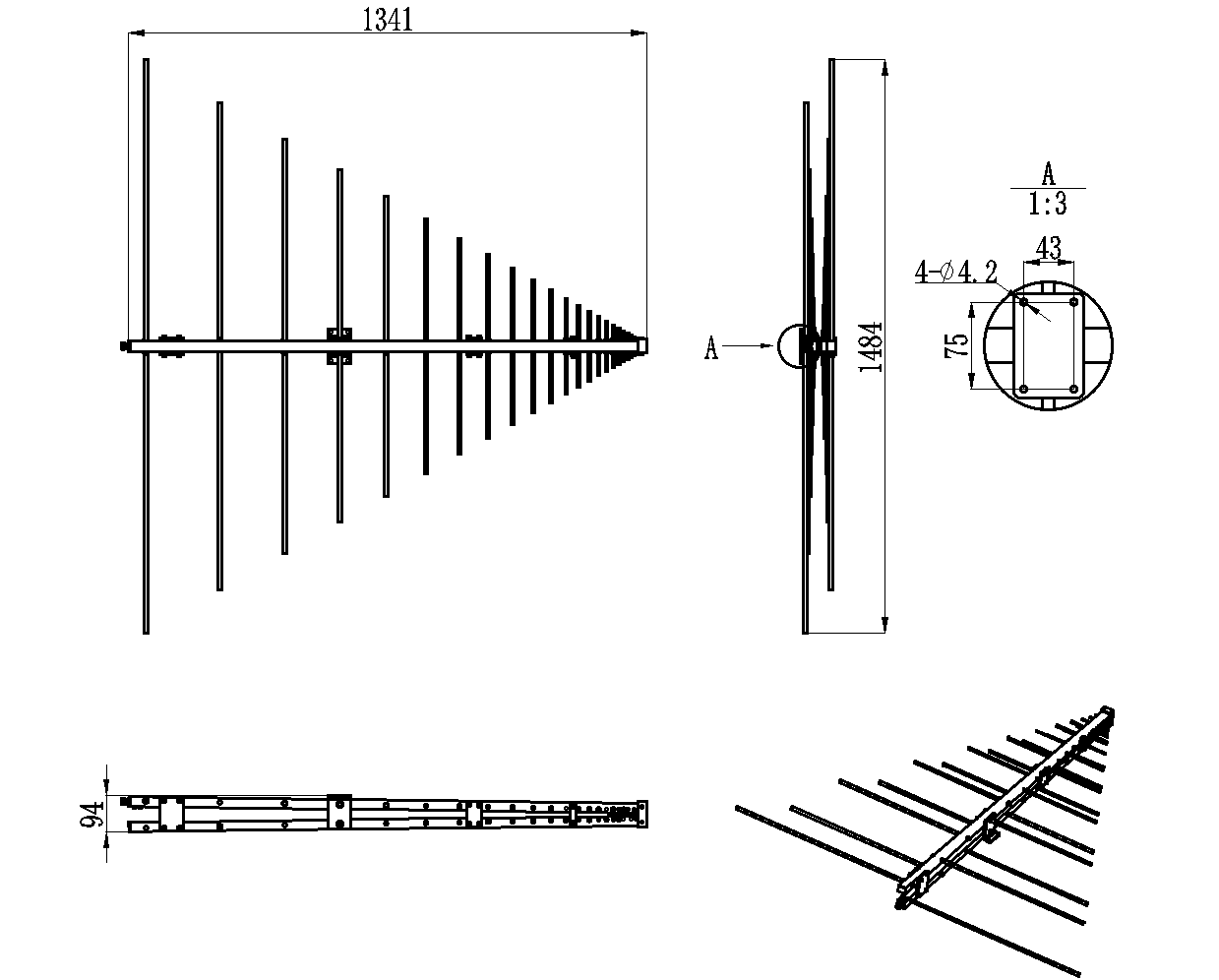

| Outline size | 1341*1484*94mm |
| Estimated weight | 5.5Kg |
| Surface | baking paint |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |
1. Non professionals are not allowed to disassemble.
/
