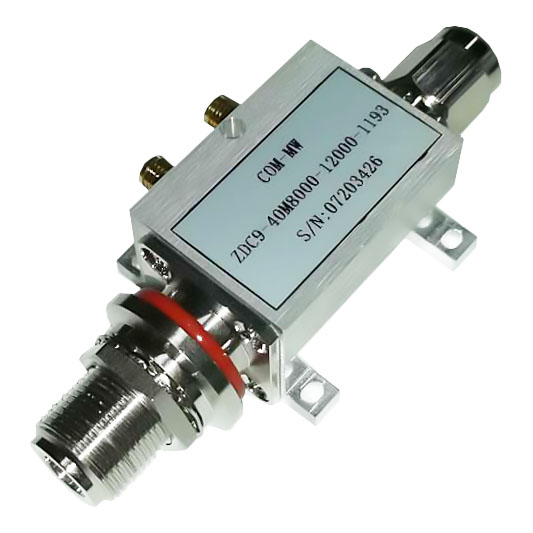

8~12GHz, Coupling40dB, N, 150W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.

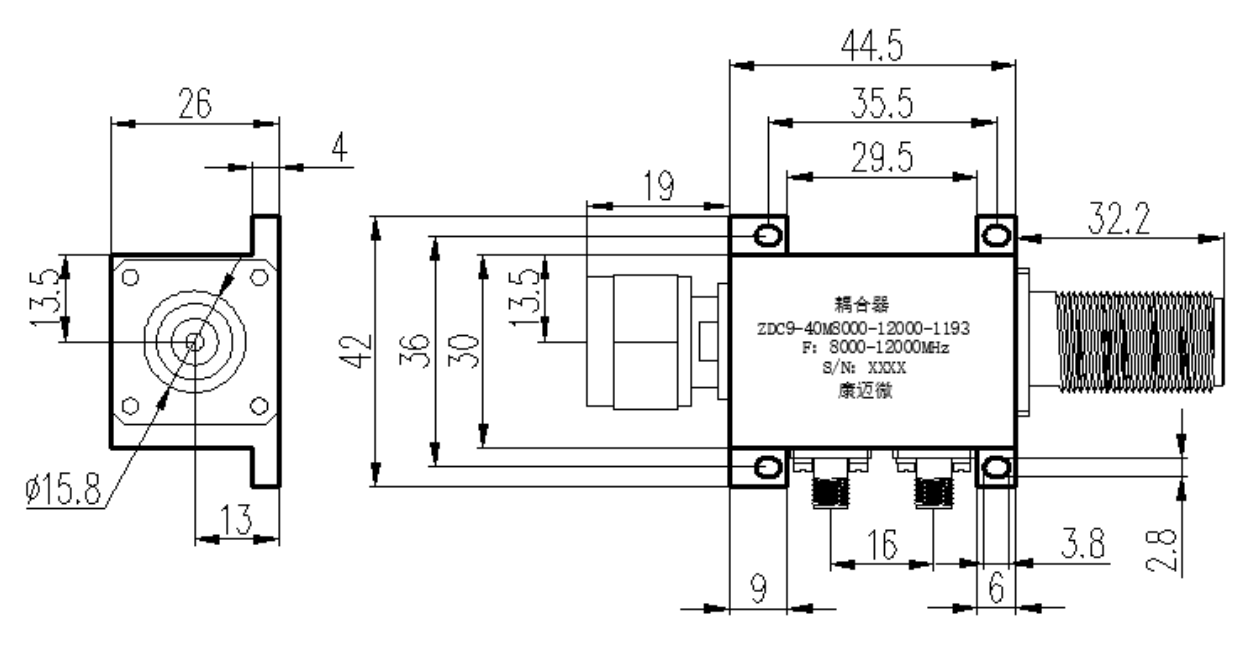

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 8 | ~ | 12 | GHz |
| IL | 0.5 | dB | ||
| Coupling | 38.5 | 40 | 41.5 | dB |
| Directivity | 12 | dB | ||
| Main line VSWR | 1.5 | |||
| Coupled line VSWR | 1.5 |
| Connector | N-K output, TNC-J input |
| Impedance | 50Ω |
| Surface | White |
| Power | 150W Design assurance |
| Shell Material | Aluminium |
| Work Temp. | -40~+85℃ Design assurance |
| Other | Peak power of 550W, duty cycle of 20%, design guarantee. |
| Input port | TNC-J | --- |
|---|---|---|
| Output port | N-K extension | --- |
| Coupling port | SMA-K | --- |
| Isolated Port | SMA-K | --- |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
