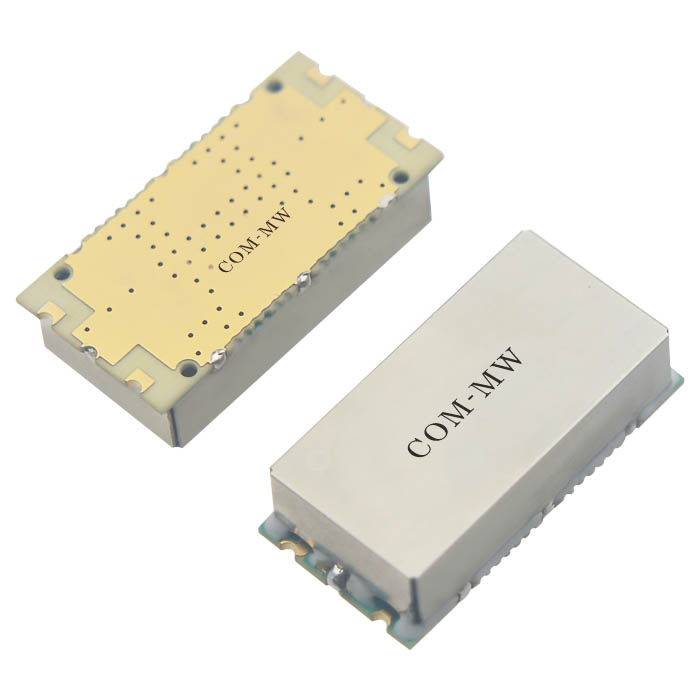

20~3000MHz, Dual Directional coupling30dB, SMD, 20W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

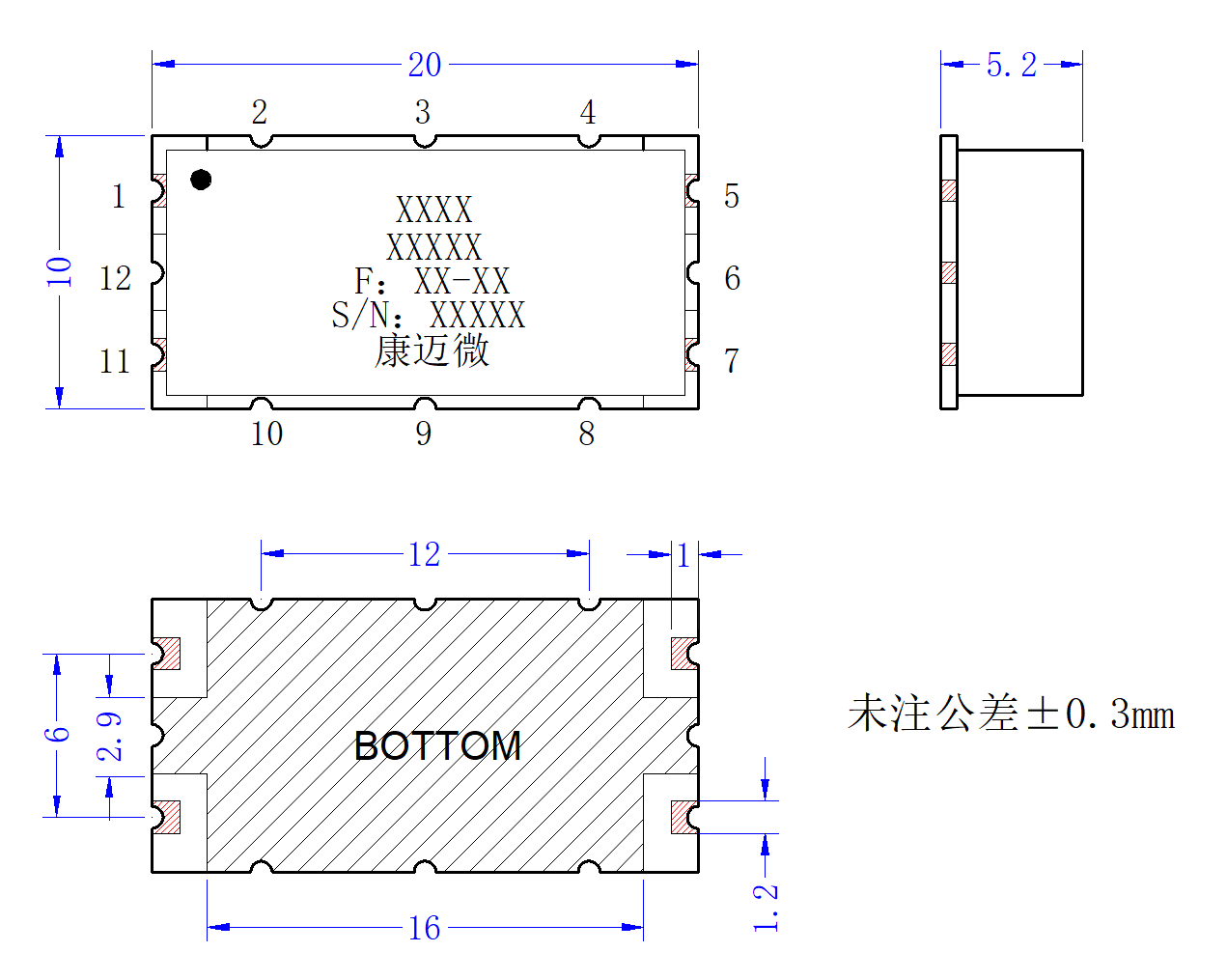

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 20 | ~ | 3000 | MHz |
| IL | 2.6 | dB | ||
| Dual Directional coupling | 29 | 30 | 31 | dB |
| Directivity | 8 | dB | ||
| Main line VSWR | 1.5 | |||
| Coupled line VSWR | 1.5 |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 20W@1GHz; 10W@3GHz |
| Operation Temp. | -40~+85℃ Design assurance |
| Input port | 1 | 5 |
|---|---|---|
| Output port | 5 | 1 |
| Forward coupling port | 11 | 7 |
| Reverse coupling port | 7 | 11 |
| GND | Other ports | Other ports |

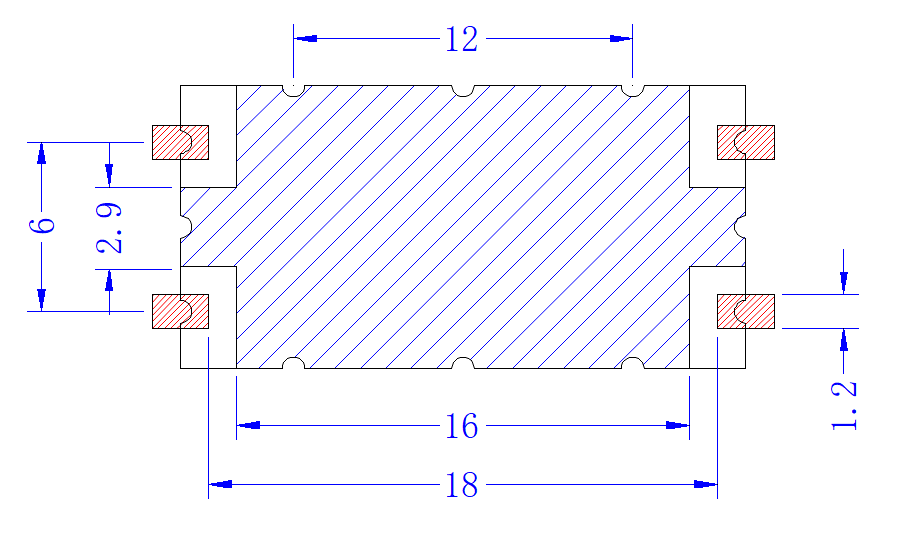

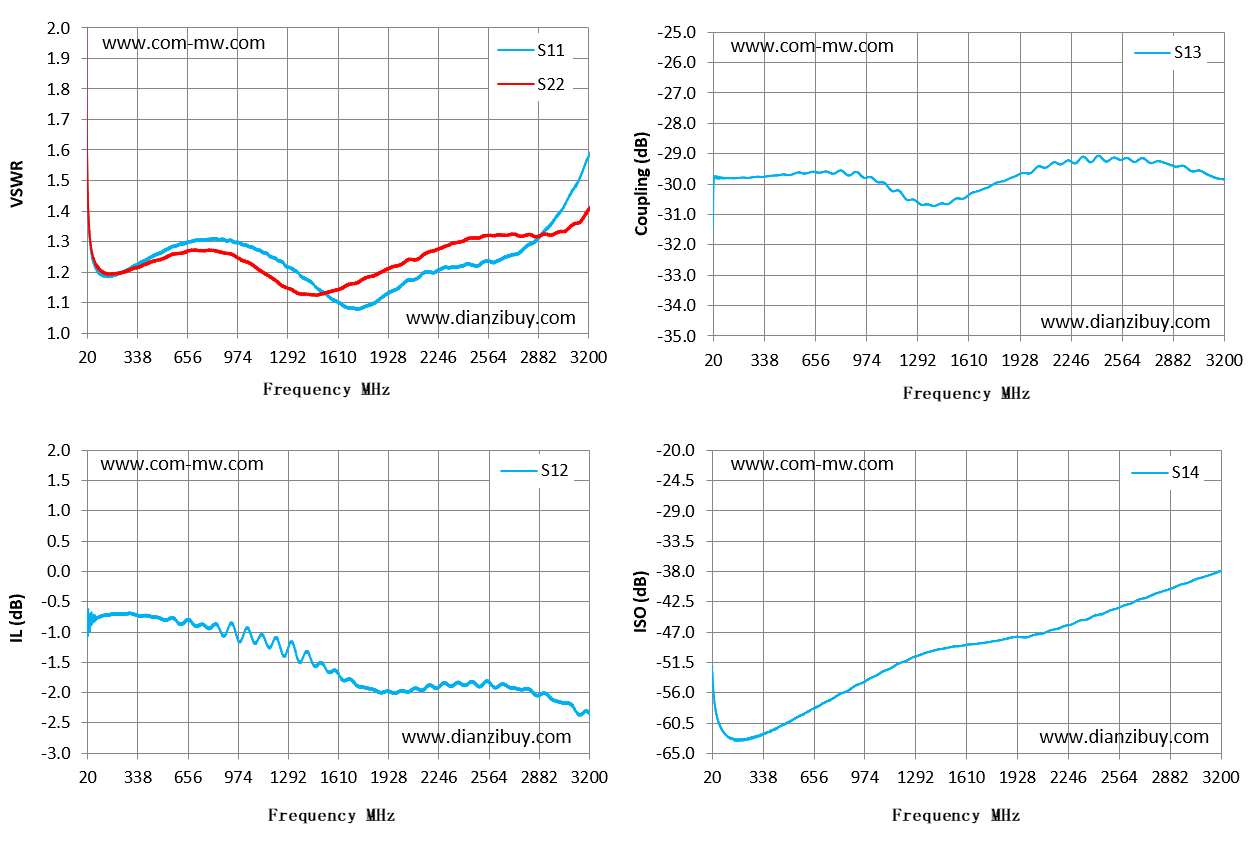

| Frequency MHz | S11 VSWR | S12 IL (dB) | S13 Coupling | S12 ISO dB |
|---|---|---|---|---|
| 20 | 1.5 | -0.8 | -30.12 | -52.86 |
| 247 | 1.2 | -0.7 | -29.79 | -62.84 |
| 474 | 1.26 | -0.77 | -29.7 | -60.63 |
| 701 | 1.3 | -0.9 | -29.61 | -57.76 |
| 929 | 1.3 | -0.86 | -29.67 | -54.81 |
| 1156 | 1.26 | -1.21 | -30.22 | -52.07 |
| 1383 | 1.18 | -1.43 | -30.72 | -49.9 |
| 1610 | 1.1 | -1.7 | -30.36 | -48.9 |
| 1837 | 1.1 | -1.96 | -29.89 | -48.13 |
| 2064 | 1.17 | -1.97 | -29.44 | -47.3 |
| 2291 | 1.22 | -1.85 | -29.24 | -45.59 |
| 2519 | 1.23 | -1.88 | -29.13 | -43.7 |
| 2746 | 1.26 | -1.94 | -29.31 | -41.78 |
| 2973 | 1.37 | -2.13 | -29.5 | -39.82 |
| 3200 | 1.58 | -2.35 | -29.86 | -37.9 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 190 ℃ reflow soldering |
