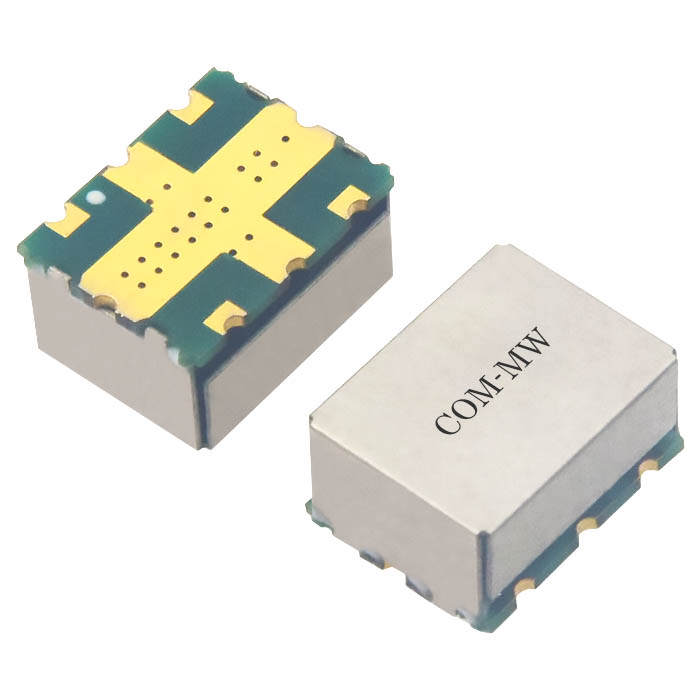

20~3000MHz, Coupling30dB, SMD, 20W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 20 | ~ | 3000 | MHz |
| IL | 0.8 | 1.3 | dB | |
| Coupling | 29 | 30 | 31 | dB |
| Directivity | 8 | dB | ||
| Main line VSWR | 1.5 | |||
| Coupled line VSWR | 1.5 | |||
| Power Capacity | 20 | W@30-2000MHz | ||
| Power Capacity | 10 | W@20-30MHz | ||
| Power Capacity | 10 | W@2-3GHz |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 20W Design assurance |
| Operation Temp. | -40~+85℃ Design assurance |

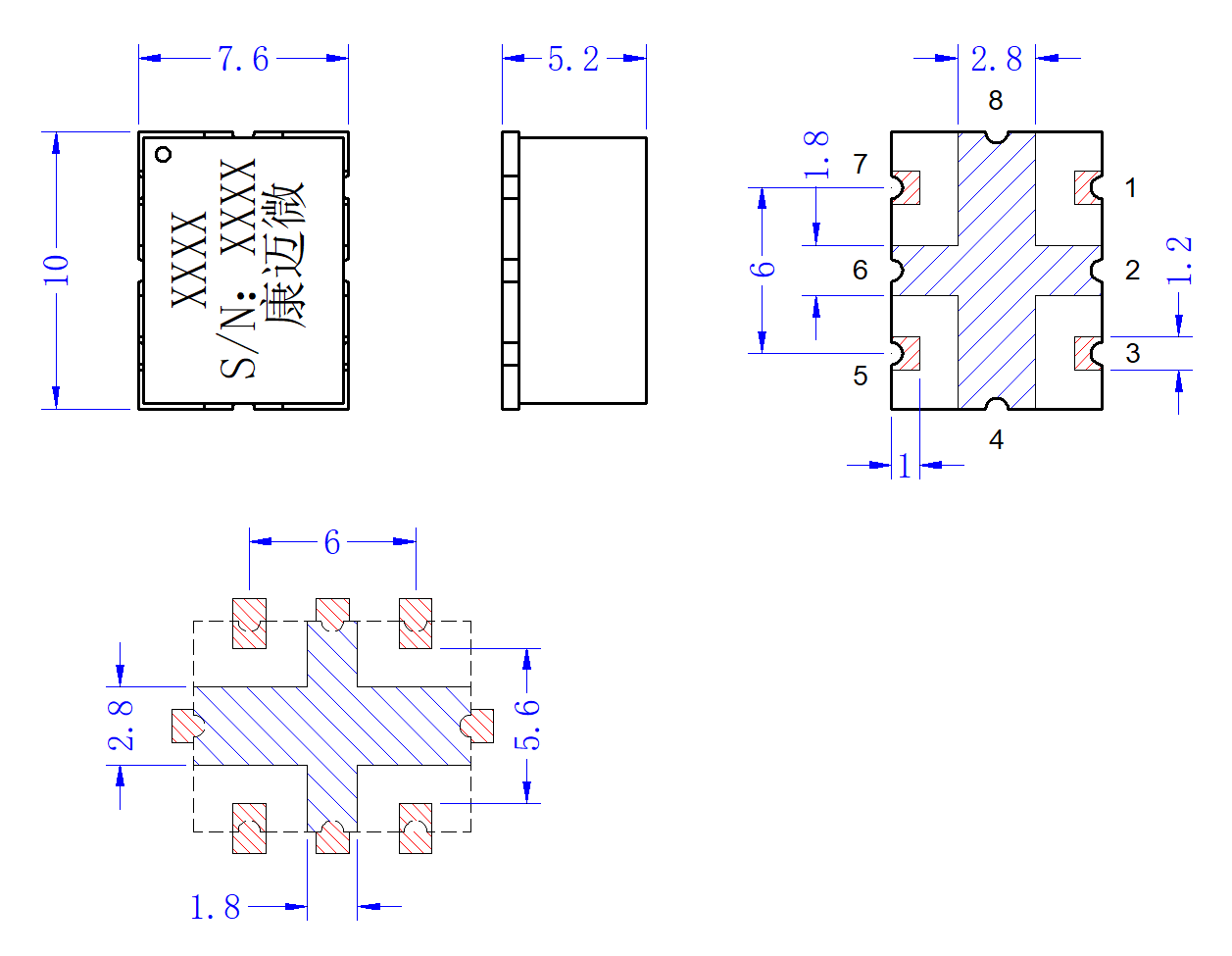

| Input port | 1 | --- |
|---|---|---|
| Output port | 7 | --- |
| Coupling port | 3 | --- |
| Isolated Port | 5 (connected to a 50 ohm load) | Size: 0402 |
| GND | 2，4，6，8 | --- |

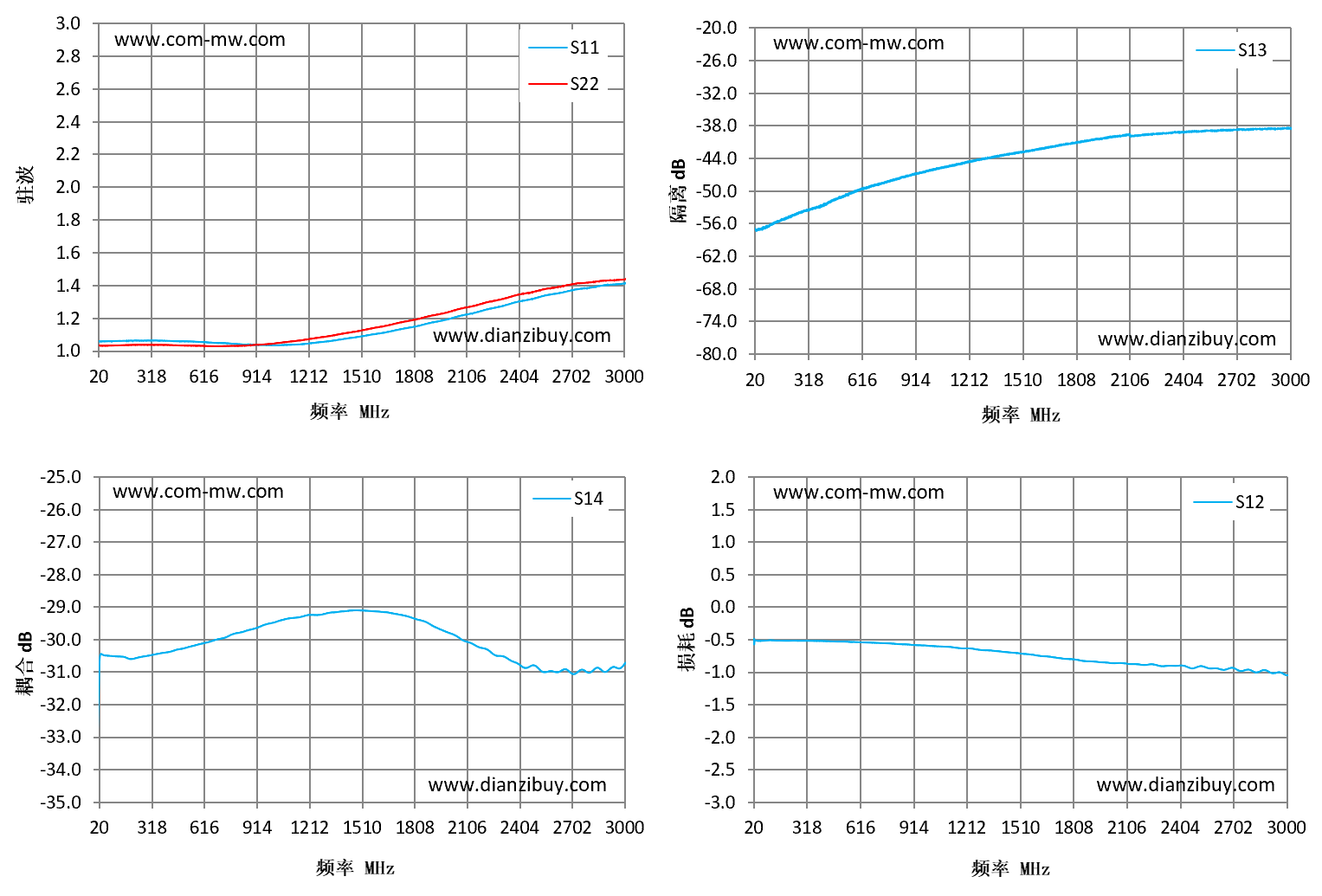

| Frequency(MHz) | S11 VSWR | S22 VSWR | S14 coupling | S13 ISO dB | S12 IL dB |
|---|---|---|---|---|---|
| 20 | 1.06 | 1.04 | -30.73 | -56.96 | -0.49 |
| 233 | 1.07 | 1.04 | -30.56 | -54.38 | -0.51 |
| 446 | 1.06 | 1.04 | -30.33 | -51.8 | -0.52 |
| 659 | 1.05 | 1.03 | -30.04 | -49.28 | -0.54 |
| 871 | 1.04 | 1.04 | -29.69 | -47.24 | -0.57 |
| 1084 | 1.04 | 1.06 | -29.35 | -45.58 | -0.6 |
| 1297 | 1.06 | 1.09 | -29.2 | -44.01 | -0.66 |
| 1510 | 1.09 | 1.13 | -29.1 | -42.85 | -0.71 |
| 1723 | 1.13 | 1.17 | -29.23 | -41.56 | -0.78 |
| 1936 | 1.18 | 1.22 | -29.64 | -40.43 | -0.84 |
| 2149 | 1.23 | 1.28 | -30.17 | -39.8 | -0.87 |
| 2361 | 1.29 | 1.33 | -30.67 | -39.22 | -0.9 |
| 2574 | 1.34 | 1.38 | -30.97 | -38.93 | -0.94 |
| 2787 | 1.38 | 1.42 | -31.01 | -38.64 | -0.96 |
| 3000 | 1.41 | 1.44 | -30.73 | -38.52 | -1.04 |
| 1 | Short term soaking and cleaning, please dry in a timely manner. |
| 2 | The product supports 220 ℃ reflow soldering. |
| 3 | Cannot be used as a dual directional coupler. |
