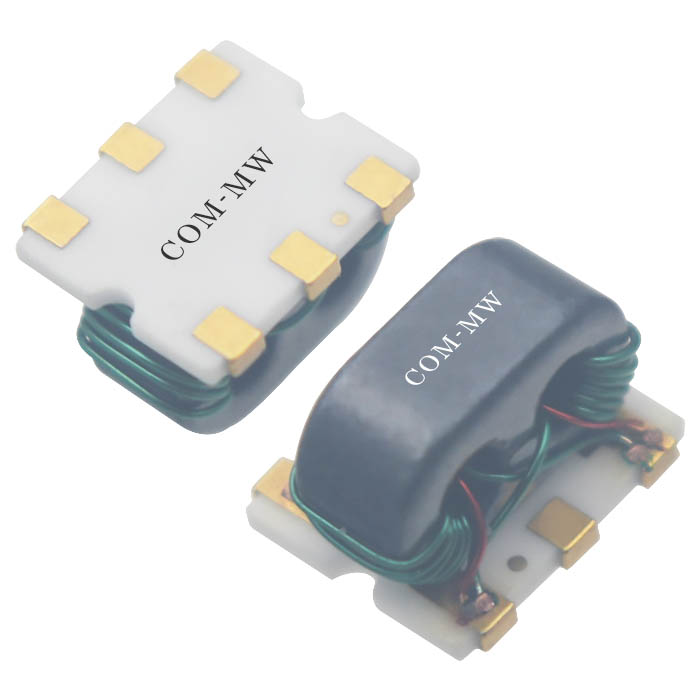

1~30MHz, Coupling16dB, SMD, 15W, Industrial grade
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High power, small volume.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | ~ | 30 | MHz |
| IL | 0.4 | dB | ||
| Coupling | 15.2 | 16 | 16.8 | dB |
| Directivity | 20 | dB | ||
| Main line VSWR | 1.2 | |||
| Coupled line VSWR | 1.2 |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 15W Design assurance |
| Operation Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |

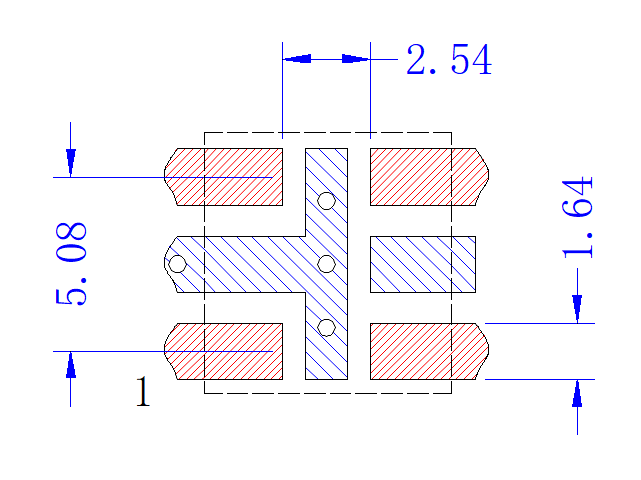

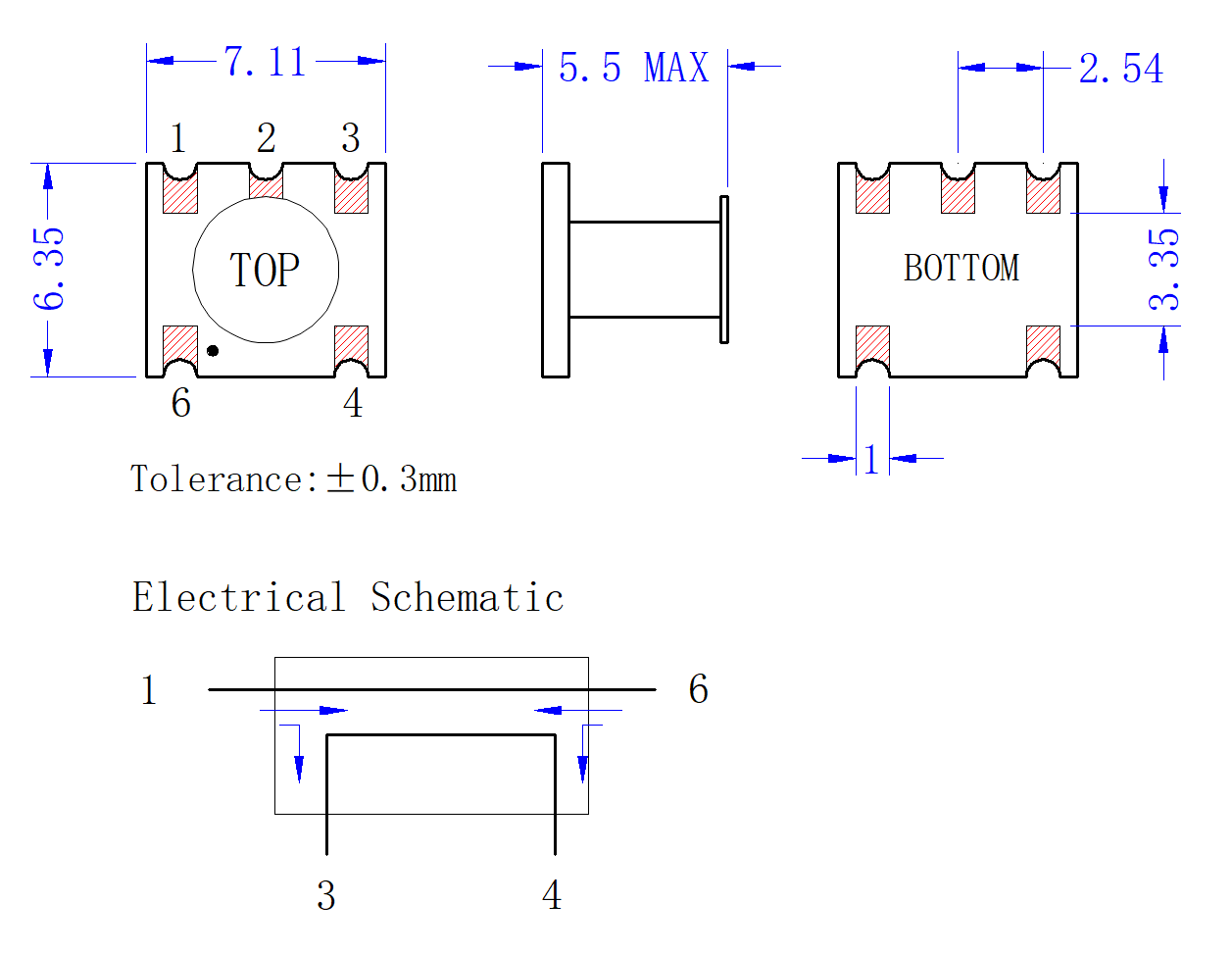

| Input port | 1 | 6 |
|---|---|---|
| Output port | 6 | 1 |
| Coupling port | 3 | 4 |
| Isolated Port | 4 | 3 |
| GND | 2 | 2 |

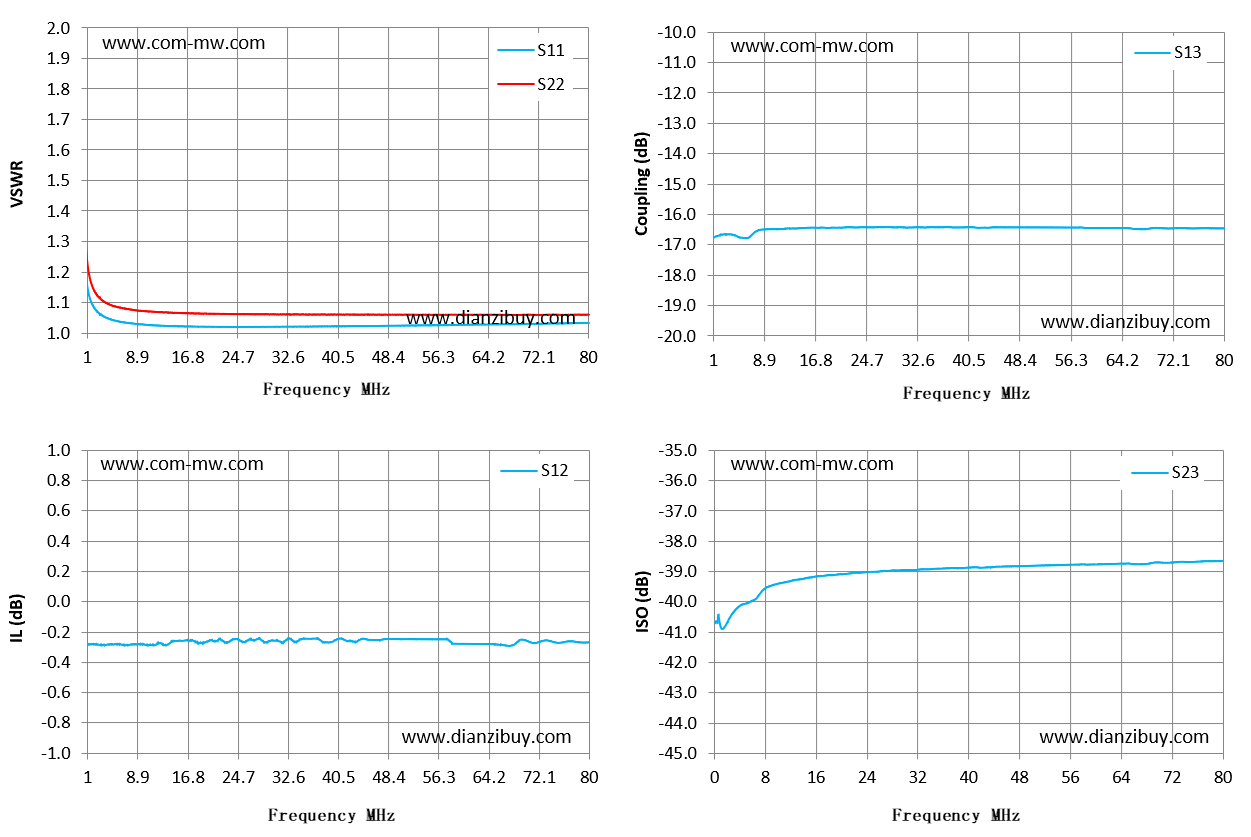

| Frequency MHz | S11 VSWR | S12 IL (dB) | S13 Coupling | S23 ISO dB |
|---|---|---|---|---|
| 1 | 1.16 | -0.28 | -16.77 | -40.89 |
| 7 | 1.03 | -0.28 | -16.67 | -39.76 |
| 12 | 1.03 | -0.28 | -16.49 | -39.31 |
| 18 | 1.02 | -0.26 | -16.45 | -39.11 |
| 24 | 1.02 | -0.25 | -16.44 | -39.01 |
| 29 | 1.02 | -0.27 | -16.44 | -38.96 |
| 35 | 1.02 | -0.24 | -16.44 | -38.9 |
| 41 | 1.02 | -0.24 | -16.44 | -38.85 |
| 46 | 1.02 | -0.25 | -16.44 | -38.82 |
| 52 | 1.03 | -0.25 | -16.44 | -38.79 |
| 57 | 1.03 | -0.25 | -16.45 | -38.76 |
| 63 | 1.03 | -0.28 | -16.46 | -38.74 |
| 69 | 1.03 | -0.26 | -16.46 | -38.7 |
| 74 | 1.03 | -0.26 | -16.47 | -38.67 |
| 80 | 1.03 | -0.27 | -16.47 | -38.64 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 260 ℃ reflow soldering. |
