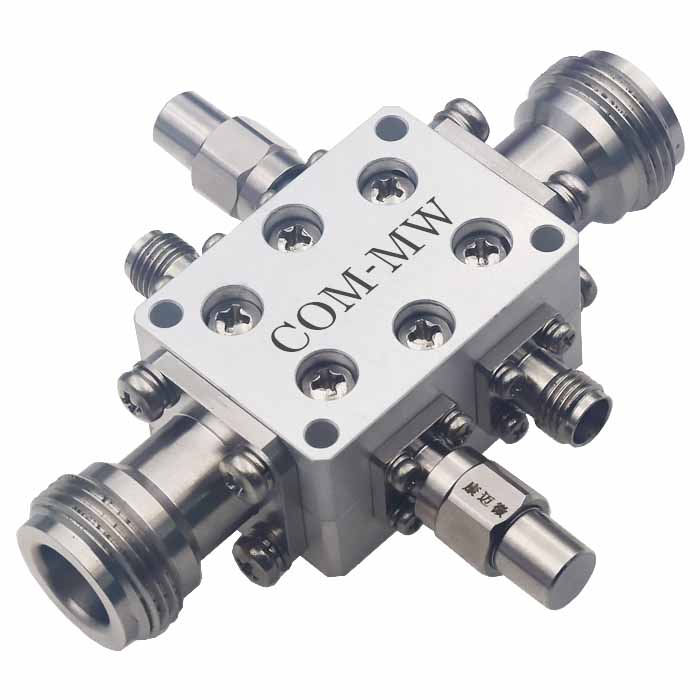

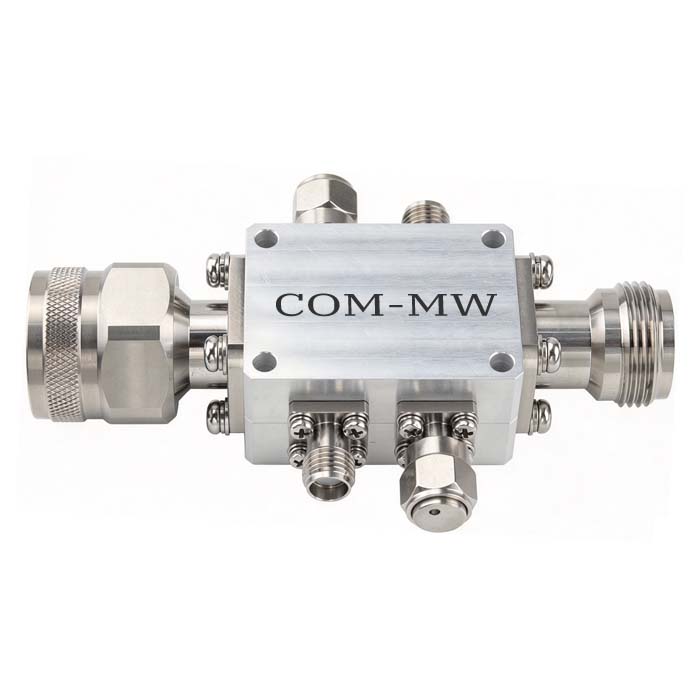

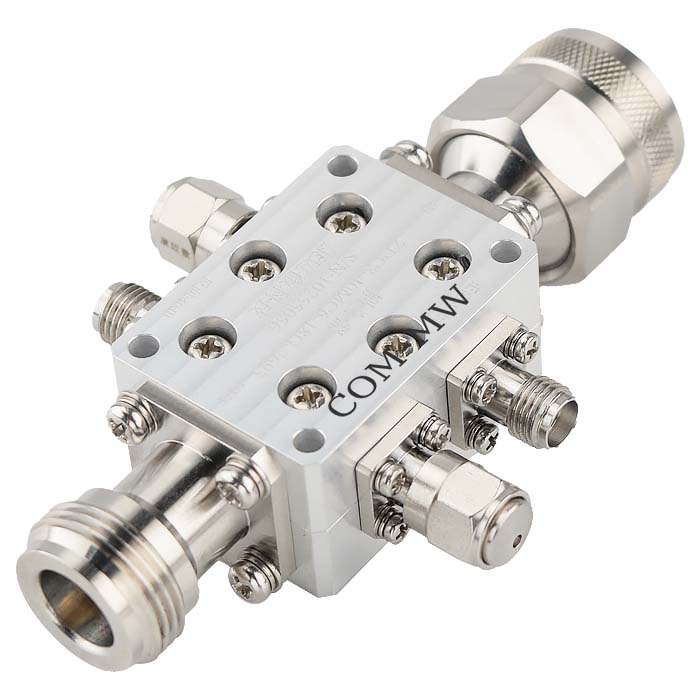

6000~18000MHz, Coupling40dB, N, SMA, 200W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.

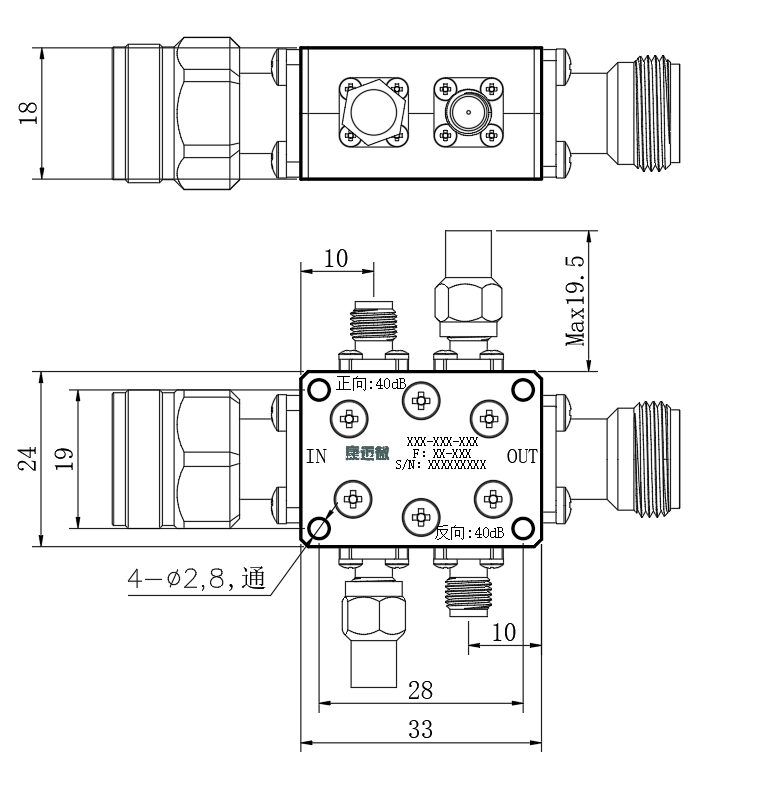

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 6000 | ~ | 18000 | MHz |
| IL | 0.8 | dB | ||
| Coupling | 38.5 | 40 | 41.5 | dB |
| Directivity | 15 | dB | ||
| Main line VSWR | 1.35 | |||
| Coupled line VSWR | 1.5 |
| Through port | N-JK |
|---|---|
| Coupling port | SMA-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power | 200W Design assurance |
| Work Temp. | -55~+75℃ Design assurance |
| Input port | IN | OUT |
|---|---|---|
| Output port | OUT | IN |
| Coupling port | Forward -40dB | Reverse -40dB |

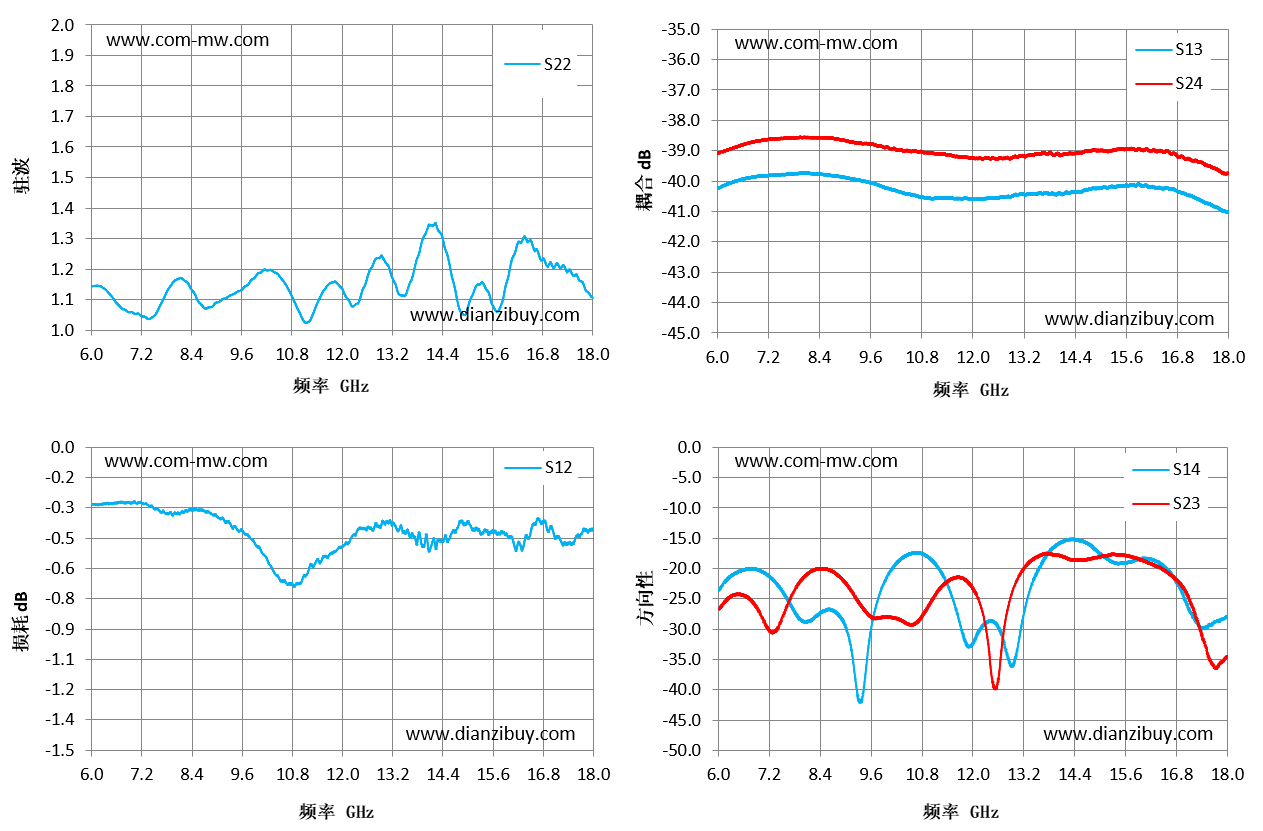

| Frequency(GHz) | S22 VSWR | S12 IL dB | S13 coupling | S23 Directivity |
|---|---|---|---|---|
| 6 | 1.14 | -0.28 | -40.25 | -26.72 |
| 6.86 | 1.06 | -0.27 | -39.86 | -26.05 |
| 7.71 | 1.1 | -0.32 | -39.77 | -24.69 |
| 8.57 | 1.09 | -0.31 | -39.79 | -20.14 |
| 9.43 | 1.12 | -0.39 | -40.01 | -26.76 |
| 10.29 | 1.2 | -0.59 | -40.36 | -28.5 |
| 11.14 | 1.02 | -0.63 | -40.56 | -24.07 |
| 12 | 1.14 | -0.49 | -40.58 | -23.3 |
| 12.86 | 1.24 | -0.39 | -40.52 | -25.58 |
| 13.71 | 1.19 | -0.45 | -40.4 | -17.57 |
| 14.57 | 1.22 | -0.45 | -40.34 | -18.58 |
| 15.43 | 1.14 | -0.41 | -40.16 | -17.76 |
| 16.29 | 1.29 | -0.51 | -40.23 | -19.5 |
| 17.14 | 1.22 | -0.44 | -40.49 | -25.74 |
| 18 | 1.11 | -0.41 | -41.02 | -34.59 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
