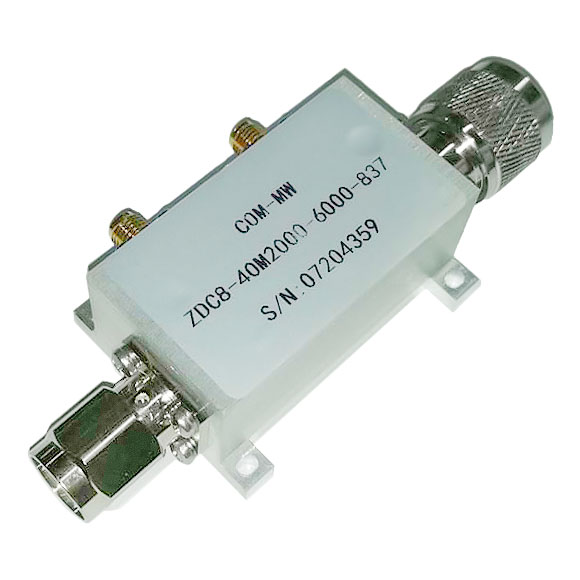

2~6GHz, Coupling40dB, N, 400W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 6 | GHz |
| IL | 0.5 | dB | ||
| Coupling | 38.5 | 40 | 41.5 | dB |
| Directivity | 12 | dB | ||
| Main line VSWR | 1.5 | |||
| Coupled line VSWR | 1.5 |
| Connector | N-J output, TNC-J input |
|---|---|
| Impedance | 50Ω |
| Surface | White |
| Power | 400W Design assurance |
| Work Temp. | -40~+85℃ Design assurance |
| Other | Coupling port: SMA-K; Isolation port: SMA-K |

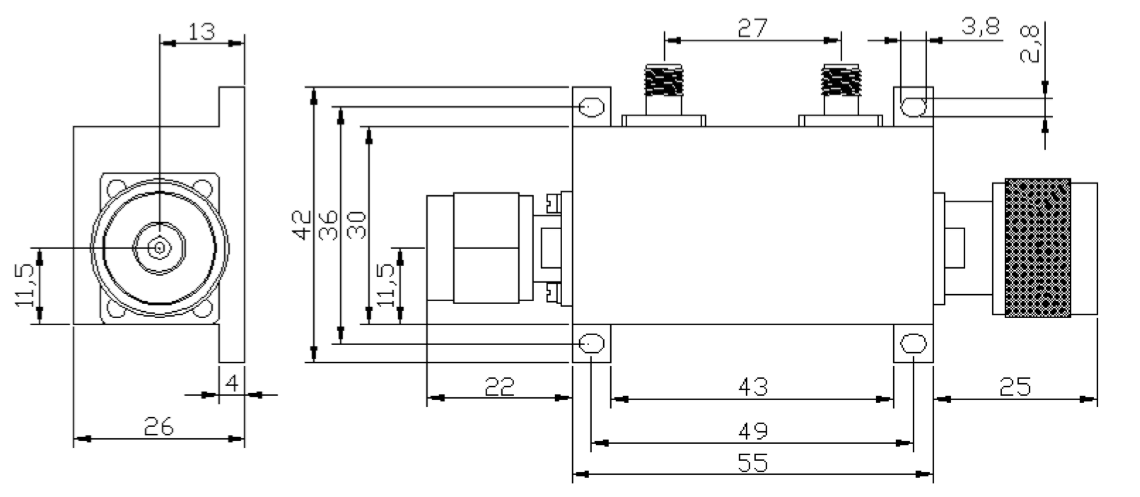

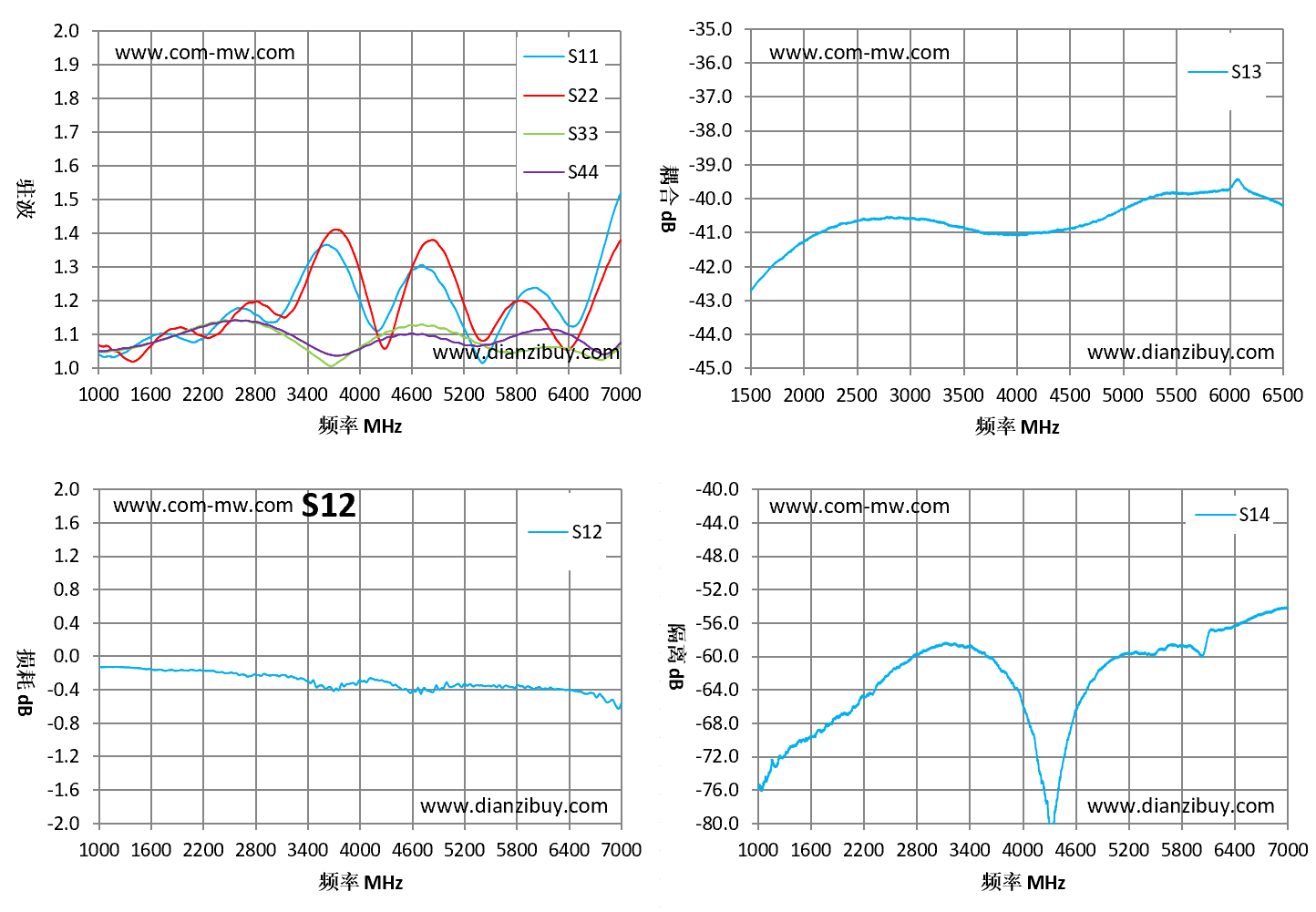

| Frequency MHz | S11 VSWR | S33 VSWR | S12 IL dB | S13 Coupling | S14 ISO |
|---|---|---|---|---|---|
| 1000 | 1.04 | 1.05 | -0.13 | -45.49 | -75.8 |
| 1429 | 1.07 | 1.06 | -0.14 | -42.99 | -70.66 |
| 1857 | 1.1 | 1.1 | -0.17 | -41.57 | -67.51 |
| 2286 | 1.11 | 1.13 | -0.17 | -40.84 | -64.45 |
| 2714 | 1.17 | 1.14 | -0.24 | -40.61 | -60.42 |
| 3143 | 1.17 | 1.09 | -0.23 | -40.61 | -58.41 |
| 3571 | 1.36 | 1.02 | -0.36 | -40.92 | -59.67 |
| 4000 | 1.2 | 1.06 | -0.29 | -41.07 | -65.78 |
| 4429 | 1.22 | 1.12 | -0.36 | -40.94 | -73.98 |
| 4857 | 1.28 | 1.12 | -0.39 | -40.51 | -61.7 |
| 5286 | 1.07 | 1.08 | -0.36 | -39.95 | -59.45 |
| 5714 | 1.16 | 1.05 | -0.37 | -39.84 | -58.58 |
| 6143 | 1.22 | 1.06 | -0.39 | -39.69 | -56.72 |
| 6571 | 1.16 | 1.04 | -0.45 | -40.36 | -55.44 |
| 7000 | 1.52 | 1.06 | -0.56 | -41.71 | -54.11 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
