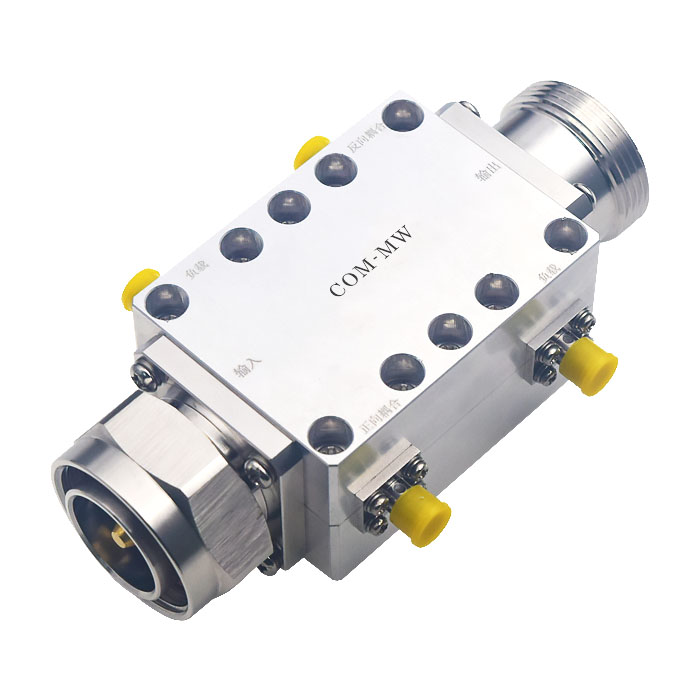

1100~1500MHz, Coupling40dB, L29, 1800W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low loss, high power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1100 | ~ | 1500 | MHz |
| IL | 0.25 | dB | ||
| Coupling | 39 | 40 | 41 | dB |
| Directivity | 18 | dB | ||
| Main line VSWR | 1.2 | |||
| Coupled line VSWR | 1.5 |

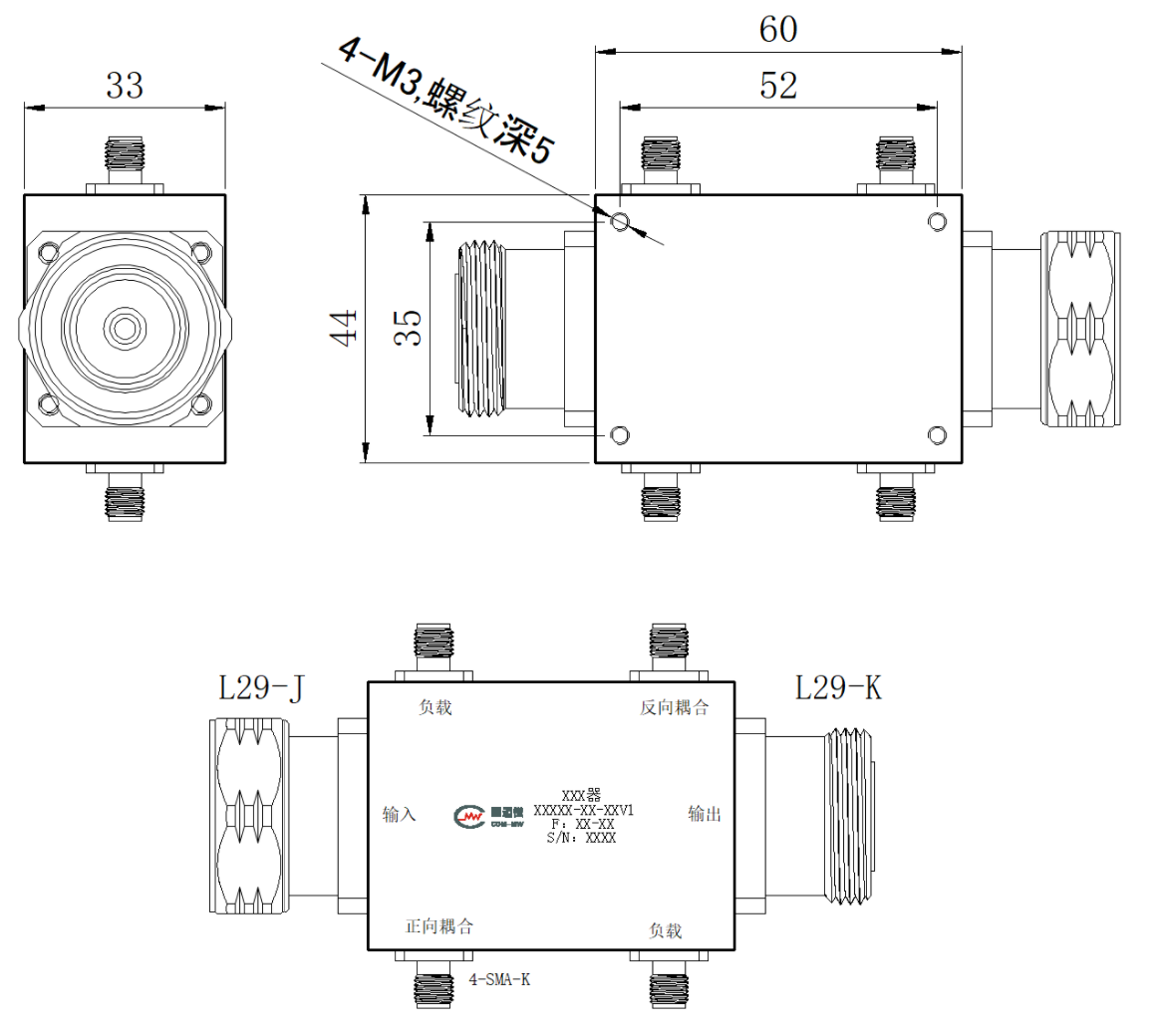

| Connector | 29-MF; Coupling port SMA-F |
|---|---|
| Connector material | Shell copper |
| Impedance | 50Ω |
| Surface | White |
| Power Capacity | 1800W |
| Shell Material | Aluminium |
| Operation Temp. | -30~+70℃ Design assurance |
| Other | Equipped with two SMA-J loads. |

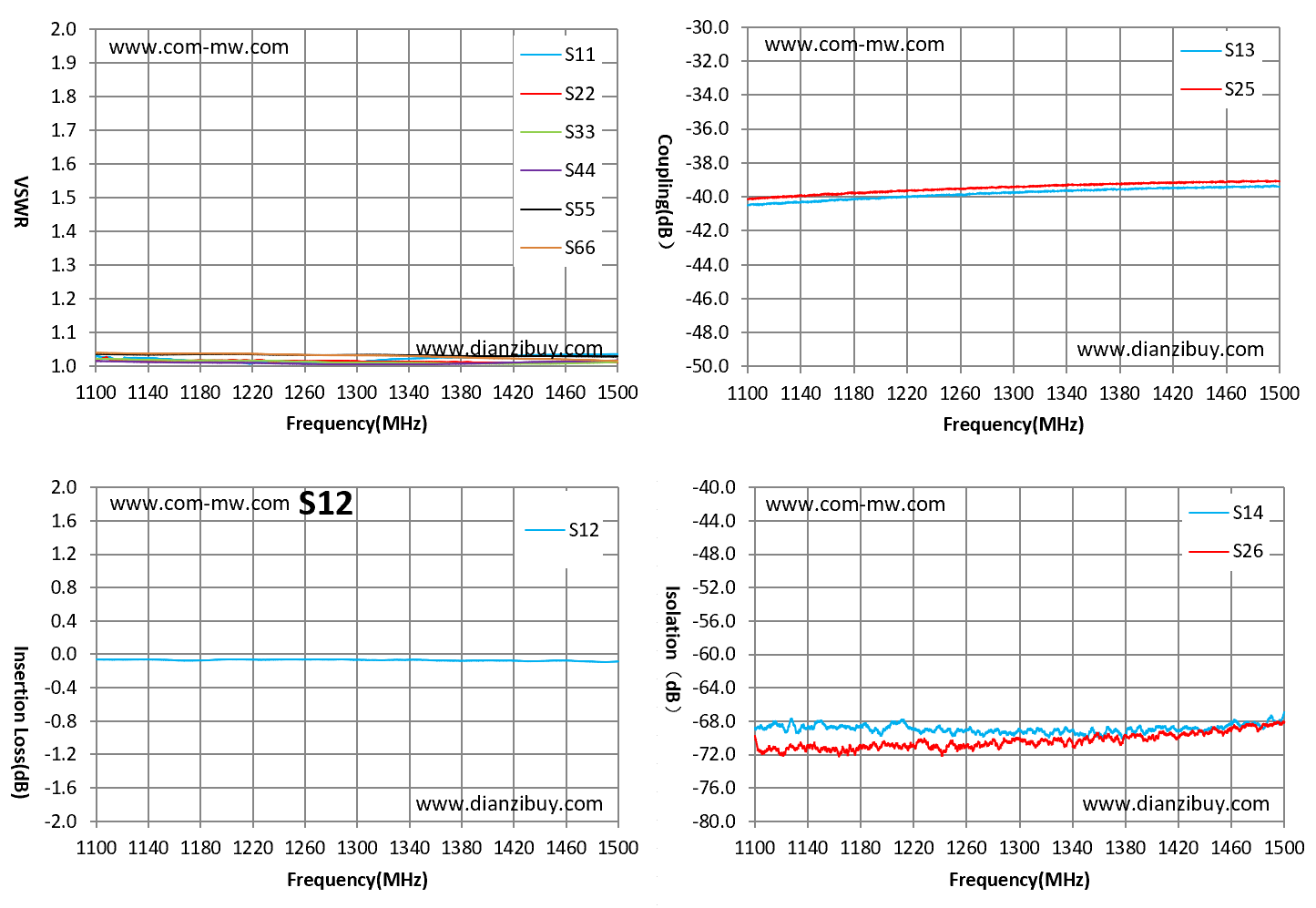

| F(MHz) | S11 VSWR | S33 VSWR | S55 VSWR | S13 Coupling | S12 IL | S14 ISO |
|---|---|---|---|---|---|---|
| 1129 | 1.02 | 1.02 | 1.03 | -40.35 | -0.06 | -68.16 |
| 1157 | 1.02 | 1.02 | 1.03 | -40.24 | -0.07 | -68.78 |
| 1186 | 1.01 | 1.02 | 1.03 | -40.11 | -0.07 | -68.71 |
| 1214 | 1.01 | 1.02 | 1.03 | -40.02 | -0.06 | -68.32 |
| 1243 | 1.01 | 1.01 | 1.03 | -39.9 | -0.06 | -69.32 |
| 1271 | 1.01 | 1.01 | 1.03 | -39.84 | -0.06 | -69.6 |
| 1300 | 1.01 | 1.01 | 1.03 | -39.75 | -0.06 | -69.08 |
| 1329 | 1.02 | 1.01 | 1.03 | -39.67 | -0.06 | -69.01 |
| 1357 | 1.02 | 1.01 | 1.03 | -39.61 | -0.07 | -69.55 |
| 1386 | 1.02 | 1.01 | 1.03 | -39.56 | -0.07 | -69.3 |
| 1414 | 1.03 | 1.01 | 1.03 | -39.48 | -0.07 | -68.99 |
| 1443 | 1.03 | 1.01 | 1.03 | -39.46 | -0.08 | -68.82 |
| 1471 | 1.03 | 1.01 | 1.03 | -39.42 | -0.08 | -68.07 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
