| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 6.57 | ~ | 9.99 | GHz |
| IL | 0.2 | dB | ||
| Coupling | 28.5 | 30 | 31.5 | dB |
| Directivity | 18 | dB | ||
| Main line VSWR | 1.2 | |||
| Coupled line VSWR | 1.3 |
| Connector | Waveguide |
| Power Capacity | 300W |
| Operation Temp. | -55~+85℃ Design assurance |
| Other | In: FDM84, Out: FDP84, Coupling port: N-F |

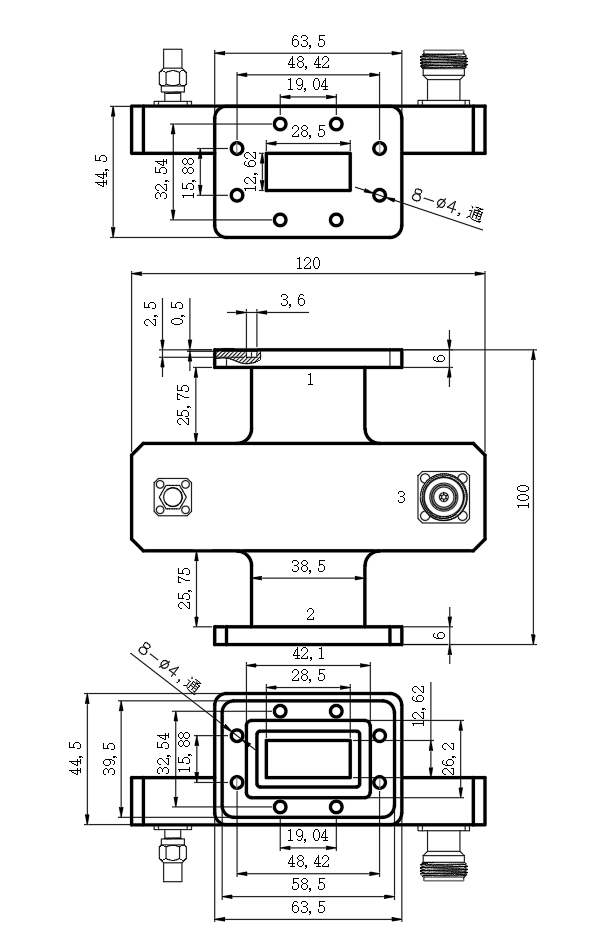

| Input port | 1 |
| Output port | 2 |
| Coupling port | 3 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
