Model: ZDC8-30M2000-8000-1504
Stock: In stock: 15
Address: BLD# 4-3A, No. 118 Hangtian Road, Chenghua District, Chengdu, Sichuan, China.

To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

Downloads

↓ Datasheet ↓ S-Parameters 342 KB

Product features

Broadband, high-power.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	2000	~	8000	MHz
IL			0.3	dB
Coupling	29	30	31	dB
Directivity	15			dB
Main line VSWR			1.3
Coupled line VSWR			1.3

Other parameters

Connector	SMA-K
Connector material	Stainless steel
Impedance	50Ω
Surface	Conductive oxidation
Power Capacity	30W Design assurance
Shell Material	Aluminium
Operation Temp.	-40~+85℃ Design assurance

Port Definition

Input port	IN	---
Output port	OUT	---
Coupling port	-30dB	---

Typical test data

Frequency(MHz)	S11 VSWR	S22 VSWR	S33 VSWR	S12 IL dB	S13 coupling	S23 ISO dB
1000	1.02	1.02	1.14	-0.01	-34.12	-54.42
1571	1.04	1.04	1.2	-0.03	-31.32	-52.38
2143	1.03	1.02	1.2	-0.03	-30.05	-53.7
2714	1.02	1.03	1.1	-0.04	-29.69	-52.78
3286	1.07	1.07	1.04	-0.04	-29.77	-49.27
3857	1.06	1.05	1.16	-0.05	-29.89	-49.47
4429	1.02	1.03	1.2	-0.05	-29.89	-55.16
5000	1.11	1.11	1.13	-0.05	-29.81	-52.84
5571	1.1	1.09	1.1	-0.05	-29.86	-48.53
6143	1.03	1.03	1.16	-0.05	-30.15	-49.4
6714	1.16	1.15	1.2	-0.07	-30.36	-51.33
7286	1.15	1.14	1.2	-0.04	-30.23	-47.55
7857	1.04	1.01	1.15	-0.05	-30.03	-46.03
8429	1.15	1.13	1.08	-0.06	-30.14	-47.68
9000	1.13	1.12	1.11	-0.1	-31.17	-49.66

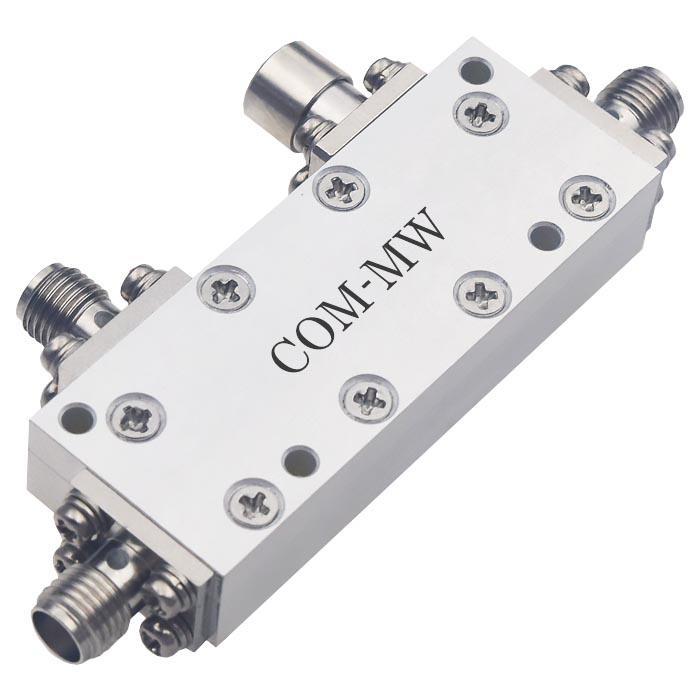

Reference picture

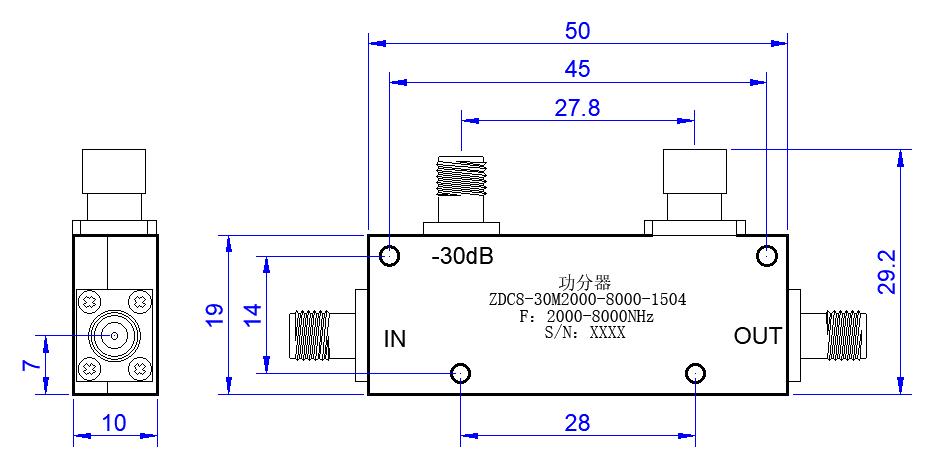

Configuration(mm)

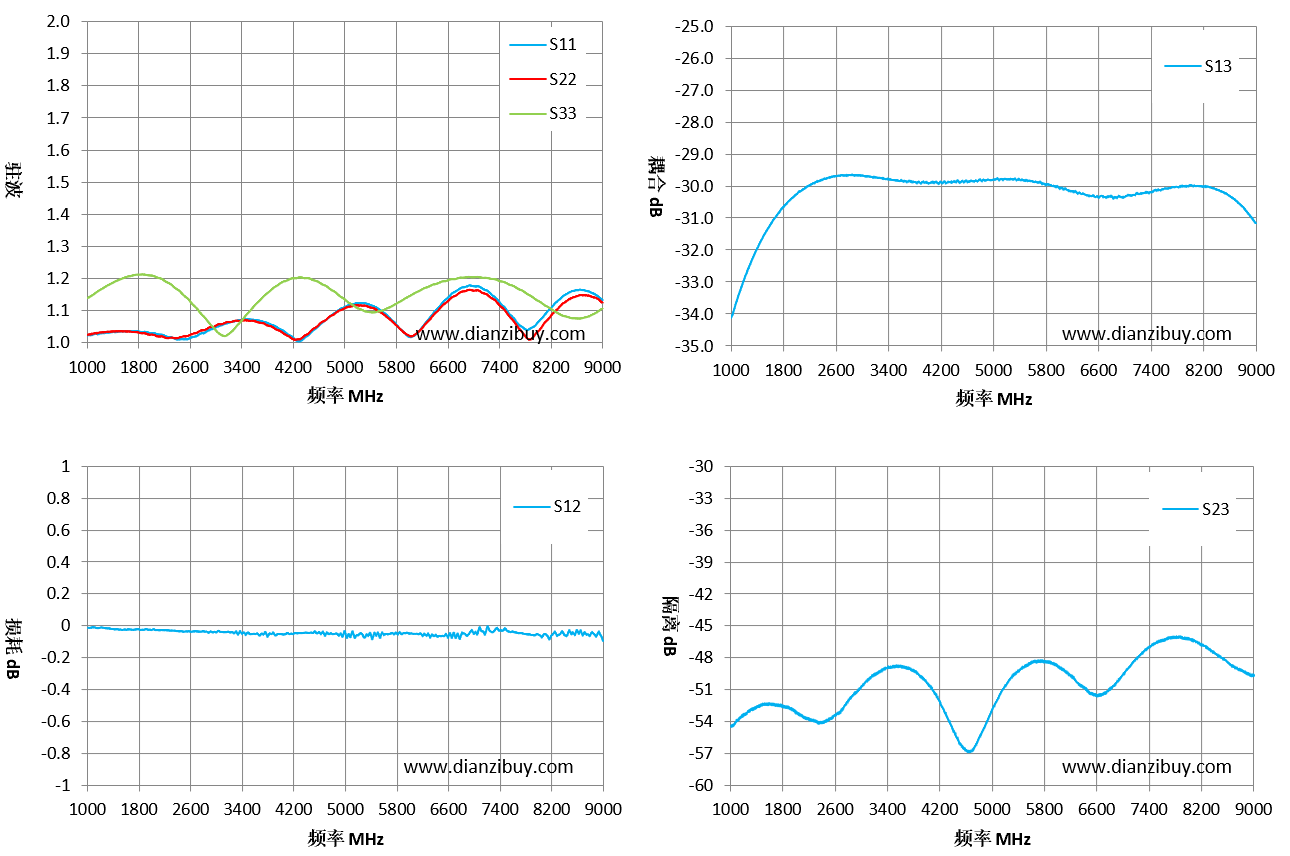

Typical test curve

Note

1	Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
2	If the temperature is higher than 125℃, consult with us before ordering.

Coupler ZDC8-30M2000-8000-1504
