Downloads

↓ Datasheet ↓ S-Parameters 348 KB

Product features

Broadband, high-power.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	0.5	~	6	GHz
IL			0.5	dB
Coupling	28.5	30	31.5	dB
Directivity	15			dB
Main line VSWR			1.3
Coupled line VSWR			1.5

Other parameters

Connector	SMA-K
Connector material	Stainless steel
Impedance	50Ω
Surface	Conductive oxidation
Power Capacity	100W
Shell Material	Aluminium
Operation Temp.	-40~+85℃ Design assurance

Port Definition

Input port	IN
Output port	OUT
Coupling port	-30dB

Typical test data

Frequency(MHz)	S11 VSWR	S22 VSWR	S33 VSWR	S12 IL dB	S13 coupling	S23 ISO dB
200	1.03	1.02	1.05	-0.01	-35.81	-61.91
650	1.05	1.04	1.13	-0.05	-29.25	-58.13
1100	1.03	1.03	1.17	-0.06	-30.28	-60.74
1550	1.07	1.07	1.21	-0.11	-29.65	-55.59
2000	1.04	1.05	1.12	-0.1	-29.89	-61.07
2450	1.08	1.09	1.05	-0.14	-29.63	-53.07
2900	1.03	1.04	1.06	-0.16	-29.23	-60.89
3350	1.11	1.14	1.11	-0.18	-29.94	-50.57
3800	1.02	1.03	1.09	-0.18	-29.3	-56.99
4250	1.14	1.17	1.11	-0.17	-30.36	-49.69
4700	1.04	1.03	1.22	-0.16	-29.64	-51.82
5150	1.14	1.16	1.09	-0.22	-30.27	-51.15
5600	1.04	1.05	1.32	-0.29	-30.43	-50.35
6050	1.18	1.16	1.21	-0.32	-31.74	-61.72
6500	1.03	1.02	1.13	-0.32	-54.96	-52.85

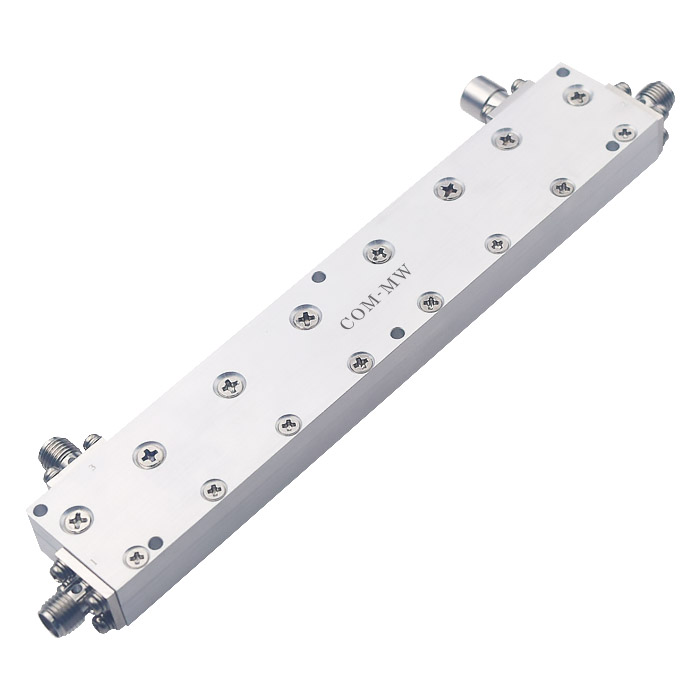

Reference picture

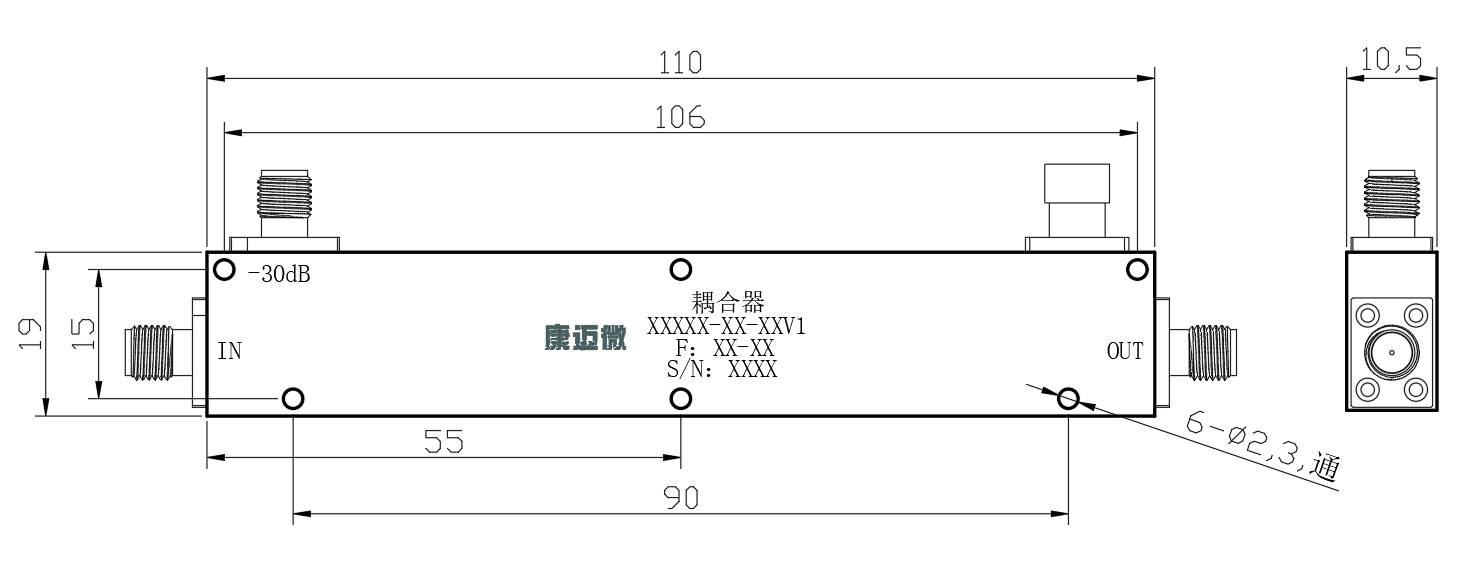

Configuration(mm)

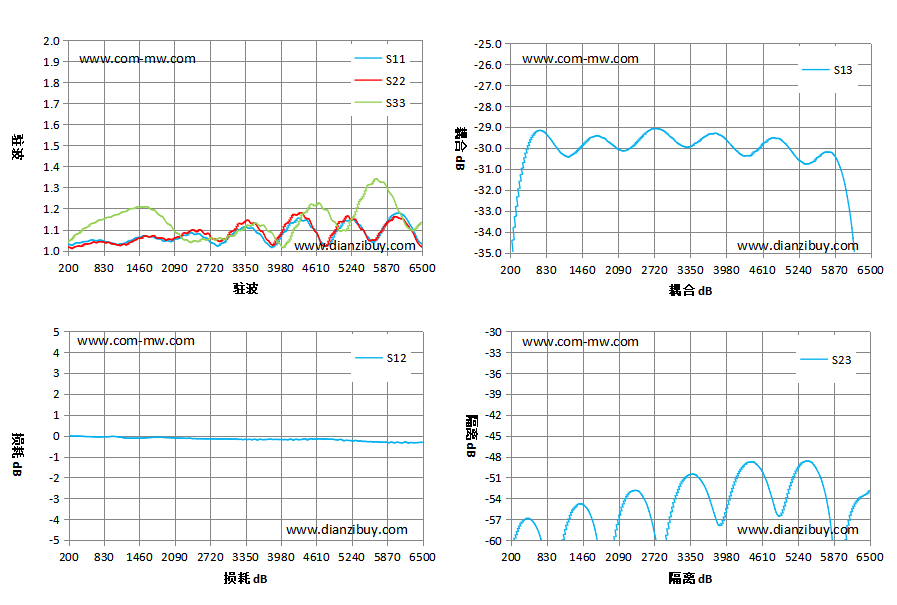

Typical test curve

Note

1	Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
2	If the temperature is higher than 125℃, consult with us before ordering.

Coupler ZDC8-30M0.5-6G-2093
