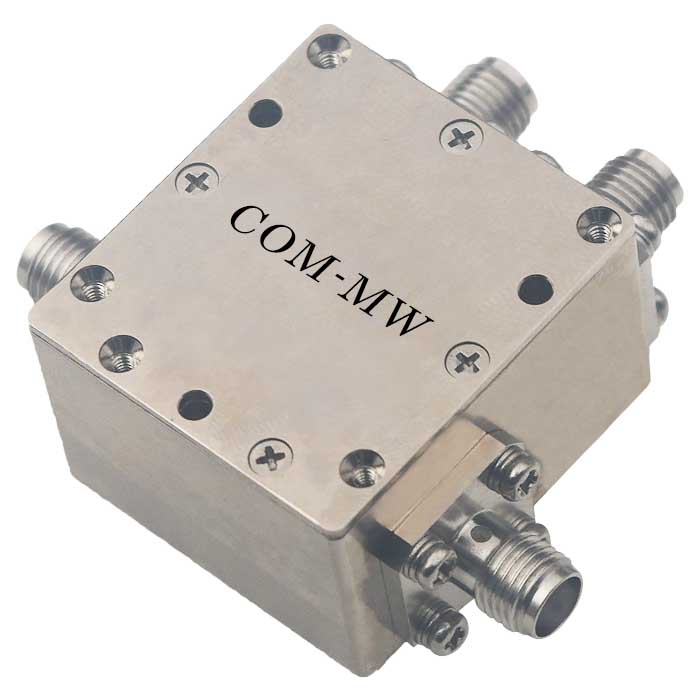

30~540MHz, Coupling25dB, SMA, 40W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 540 | MHz |
| IL | 0.3 | dB | ||
| Coupling | 24 | 25 | 28 | dB |
| Directivity | 20 | 22 | dB | |
| Main line VSWR | 1.3 | 1.5 | ||
| Coupled line VSWR | 1.3 | 1.5 |
| Connector | SMA-F or K |
| Impedance | 50Ω |
| Power Capacity | 40W Design assurance |
| Operation Temp. | -35~+65℃ Design assurance |

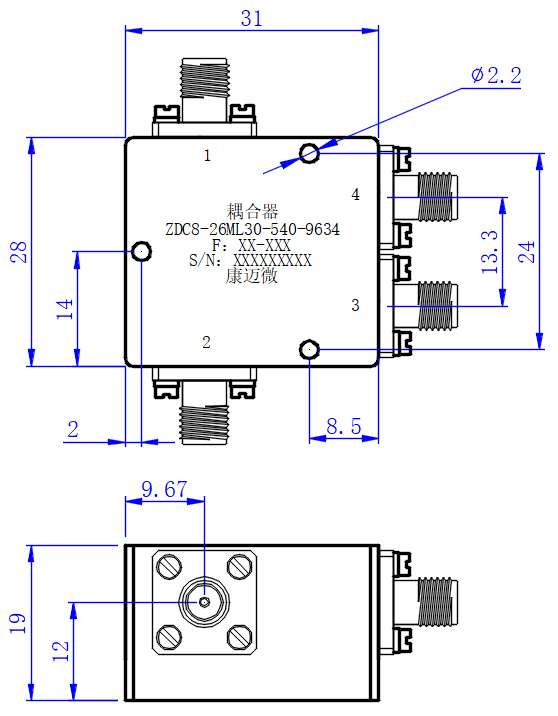

| Output port | 1 | 2 |
|---|---|---|
| Input port | 2 | 1 |
| Coupling port | 3 | 4 |
| Isolated Port | 4 | 3 |

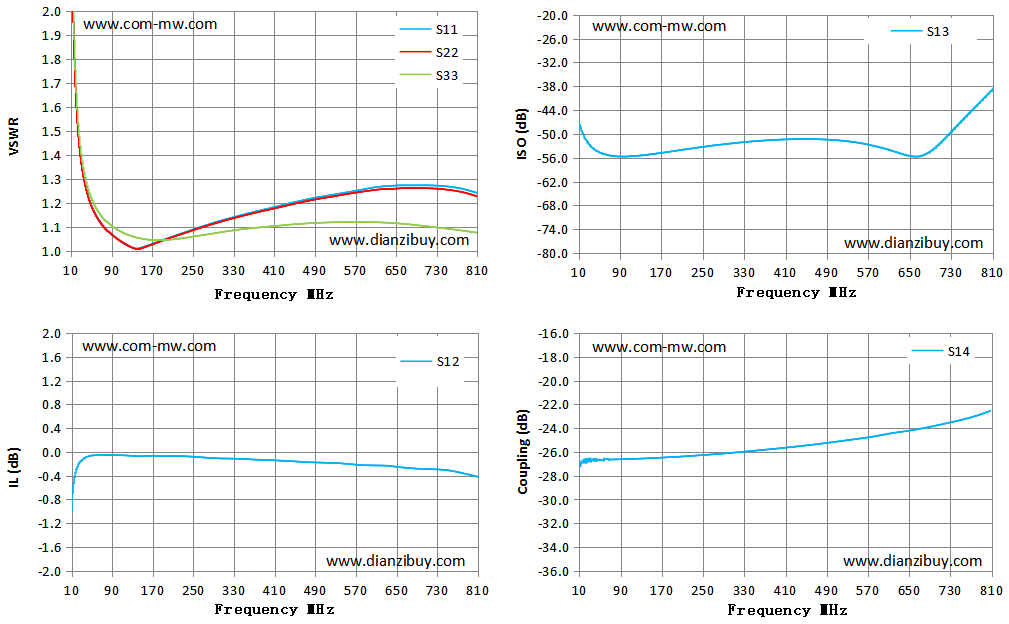

| Frequency MHz | S11 VSWR | S22 VSWR | S33 VSWR | S12 IL dB | S13 ISO dB | S14 coupling |
|---|---|---|---|---|---|---|
| 10.00 | 2.89 | 2.91 | 3.12 | -1.22 | -46.55 | -27.31 |
| 67.00 | 1.12 | 1.12 | 1.15 | -0.05 | -55.39 | -26.62 |
| 124.00 | 1.02 | 1.02 | 1.06 | -0.06 | -55.57 | -26.57 |
| 181.00 | 1.04 | 1.03 | 1.04 | -0.07 | -54.63 | -26.46 |
| 239.00 | 1.08 | 1.08 | 1.06 | -0.08 | -53.49 | -26.30 |
| 296.00 | 1.12 | 1.12 | 1.07 | -0.11 | -52.53 | -26.12 |
| 353.00 | 1.15 | 1.15 | 1.09 | -0.12 | -51.85 | -25.89 |
| 410.00 | 1.18 | 1.18 | 1.10 | -0.14 | -51.43 | -25.65 |
| 467.00 | 1.21 | 1.20 | 1.11 | -0.17 | -51.37 | -25.37 |
| 524.00 | 1.23 | 1.23 | 1.12 | -0.19 | -51.82 | -25.06 |
| 581.00 | 1.25 | 1.25 | 1.12 | -0.22 | -53.09 | -24.71 |
| 639.00 | 1.27 | 1.26 | 1.12 | -0.24 | -55.26 | -24.29 |
| 696.00 | 1.27 | 1.26 | 1.11 | -0.29 | -53.93 | -23.85 |
| 753.00 | 1.27 | 1.25 | 1.09 | -0.31 | -46.45 | -23.29 |
| 810.00 | 1.24 | 1.23 | 1.08 | -0.42 | -38.88 | -22.51 |
