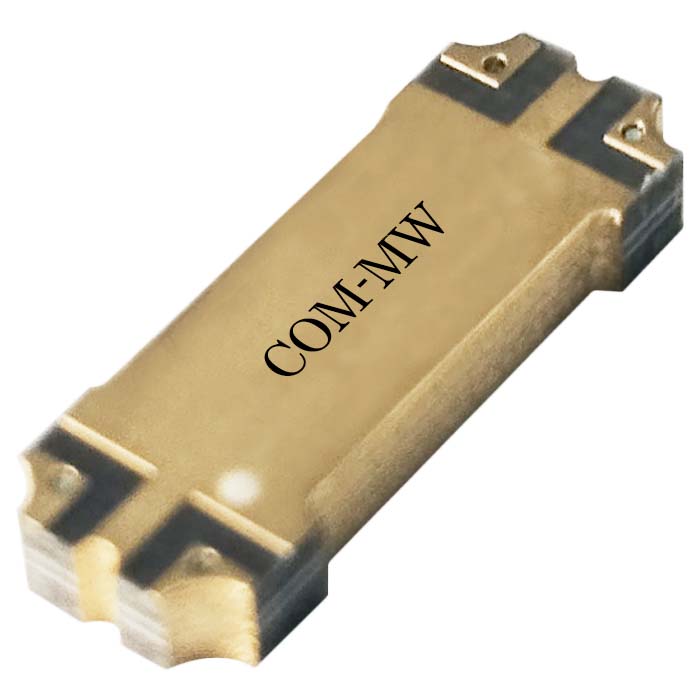

2000~6000MHz, Coupling10dB, SMD, 180W, 替代BDCH-10-63+
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2000 | ~ | 6000 | MHz |
| IL | 0.8 | dB | ||
| Coupling | 8.5 | 10 | 11.5 | dB |
| Directivity | 17 | 19 | dB | |
| Main line VSWR | 1.3 | |||
| Coupled line VSWR | 1.3 |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 180W设计保证 |
| Operation Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 替代BDCH-10-63+ |

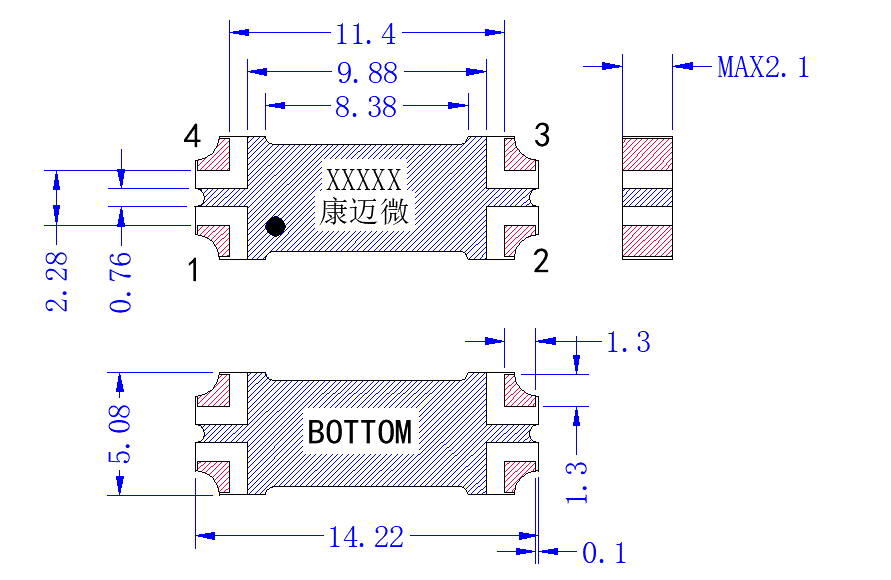

| Input port | 1 | 2 |
|---|---|---|
| Output port | 2 | 1 |
| Coupling port | 4 | 3 |
| Isolated Port | 3 | 4 |

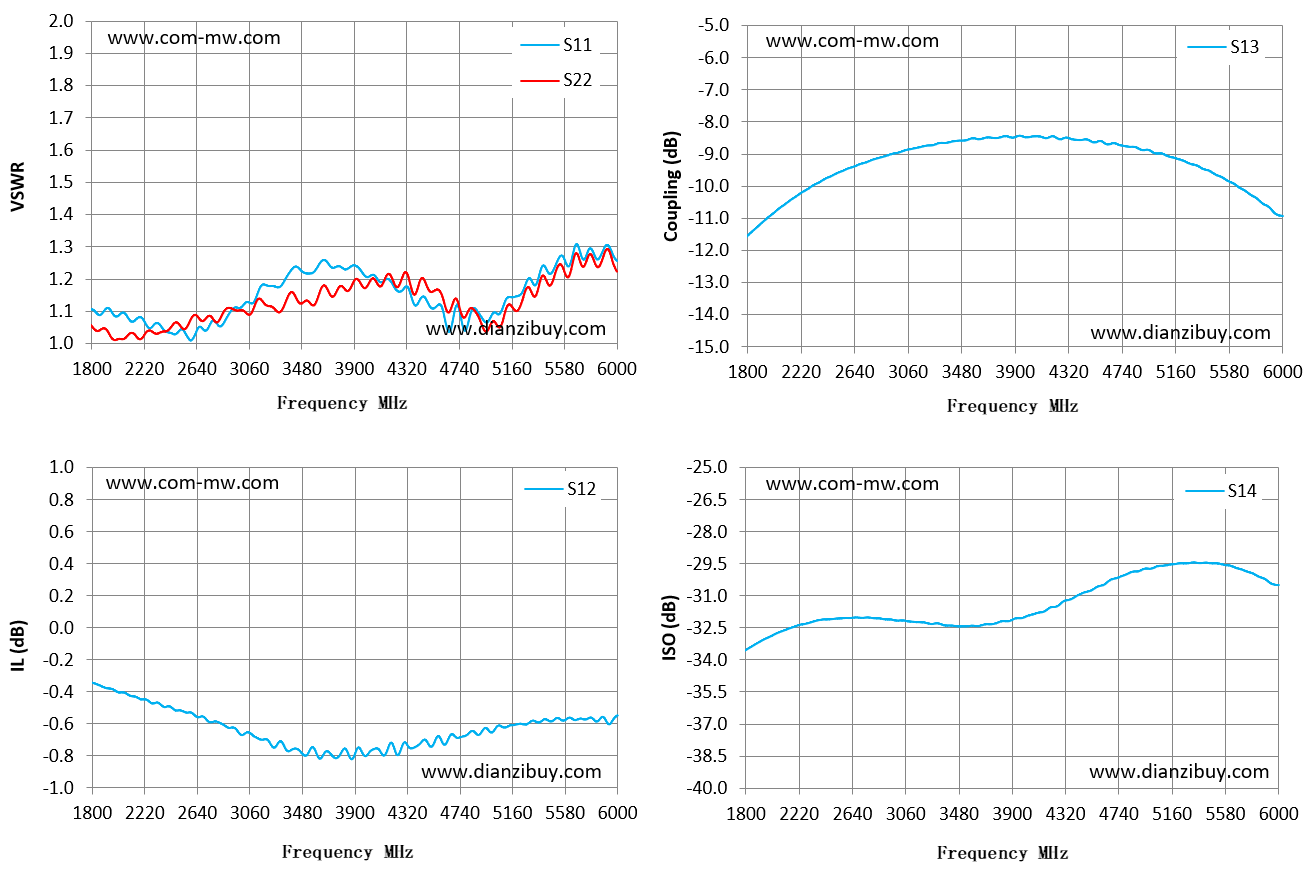

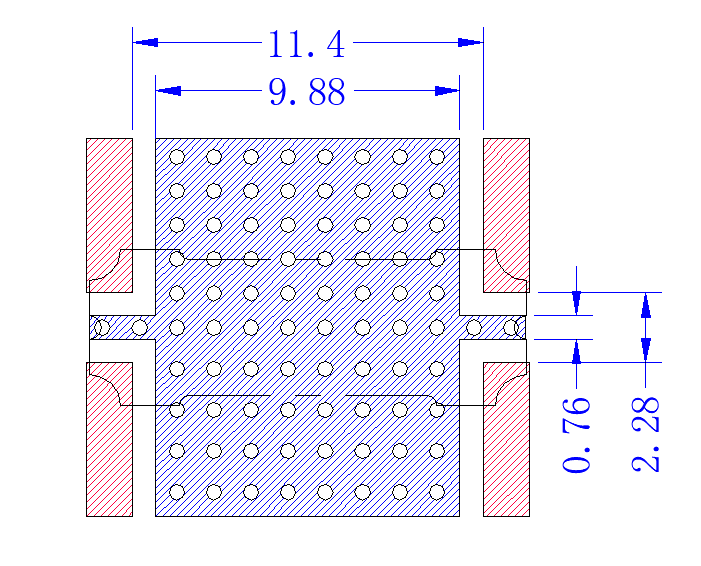

| Frequency MHz | S11 VSWR | S22 VSWR | S12 IL (dB) | S13 Coupling | S12 ISO dB |
|---|---|---|---|---|---|
| 1800 | 1.11 | 1.05 | -0.34 | -11.55 | -33.54 |
| 2100 | 1.07 | 1.03 | -0.42 | -10.55 | -32.63 |
| 2400 | 1.04 | 1.04 | -0.49 | -9.79 | -32.12 |
| 2700 | 1.04 | 1.07 | -0.56 | -9.29 | -32.03 |
| 3000 | 1.11 | 1.1 | -0.67 | -8.94 | -32.17 |
| 3300 | 1.18 | 1.1 | -0.71 | -8.66 | -32.3 |
| 3600 | 1.23 | 1.13 | -0.8 | -8.53 | -32.41 |
| 3900 | 1.24 | 1.2 | -0.79 | -8.48 | -32.13 |
| 4200 | 1.19 | 1.2 | -0.72 | -8.45 | -31.55 |
| 4500 | 1.12 | 1.16 | -0.74 | -8.62 | -30.79 |
| 4800 | 1.05 | 1.09 | -0.67 | -8.78 | -30 |
| 5100 | 1.12 | 1.09 | -0.62 | -9.07 | -29.59 |
| 5400 | 1.24 | 1.21 | -0.58 | -9.5 | -29.46 |
| 5700 | 1.29 | 1.26 | -0.57 | -10.13 | -29.75 |
| 6000 | 1.26 | 1.22 | -0.55 | -10.93 | -30.5 |
| 1 | The product supports 245 ° reflow soldering |
