1350~8500MHz, Coupling insertion loss21dB, N, 2W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1350 | ~ | 8500 | MHz |
| Main path insertion loss | 0.7 | 0.8 | 0.9 | dB |
| Coupling insertion loss | 20 | 21 | 22 | dB |
| Isolation | 35 | dB | ||
| Input VSWR | 1.5（8500MHz） | |||
| Output VSWR | 1.5（8500MHz） |
| Connector | N -F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 2W Design assurance |
| Operation Temp. | -40~+55℃ |
| Storage Temp. | -55~+75℃ |
| Other | 颜色:海灰三防油漆；外壳及接口:户外使用，密闭防水设计。 |

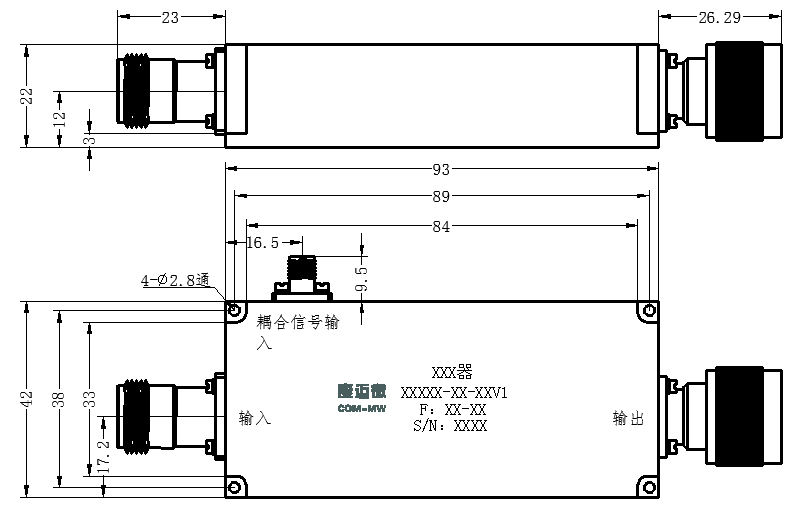

| Signal input interface | N-50K (stainless steel) | |
|---|---|---|
| Signal Onput interface | N-50J (stainless steel) | |
| Coupling signal input interface | SMA-50K (stainless steel) |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
