10~15GHz, Coupling30dB, Waveguide, SMA, 600W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 10 | ~ | 15 | GHz |
| IL | 0.15 | dB | ||
| Coupling | 29 | 30 | 31 | dB |
| Directivity | 12 | 15 | dB | |
| Main line VSWR | 1.1 | |||
| Coupled line VSWR | 1.35 |
| Port 1 | Waveguide |
| Port 2 | SMA-F |
| Waveguide port | WR75 |
| Surface | Conductive oxidation |
| Power Capacity | 600W Design assurance |
| Shell Material | Aluminium |
| Operation Temp. | -40~+85℃ Design assurance |

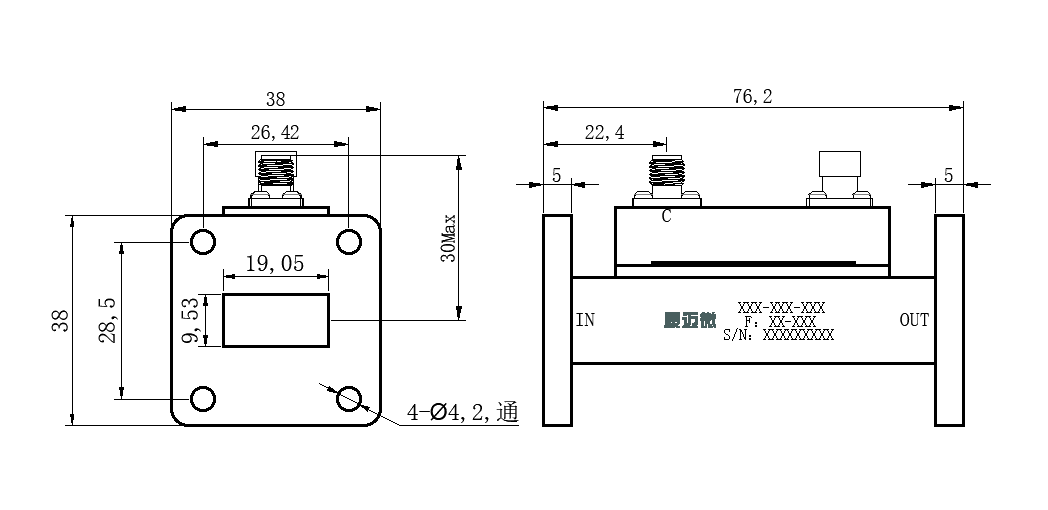

| Input port | IN | --- |
|---|---|---|
| Output port | OUT | --- |
| Coupling port | C | --- |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
