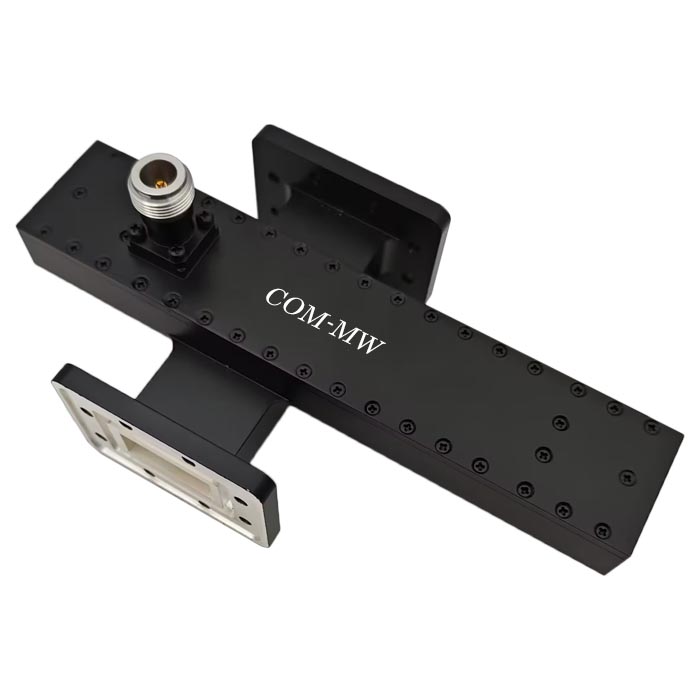

7.5~9GHz, CouplingdB, N, 300W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 7.5 | ~ | 9 | GHz |
| IL | 0.2 | dB | ||
| Coupling | 30±1 | dB | ||
| Directivity | 18dB | dB | ||
| Main line VSWR | ≤1.3 |
| Connector | N -F or K |
| Waveguide port | BJ84 or WR112 |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Power Capacity | 300W Design assurance |
| Operation Temp. | -55~+85℃ Design assurance |
| Input port | 输入：WR112(矩形密) | |
|---|---|---|
| Output port | 输出：WR112(矩形平) | |
| Coupling port | N-K |
