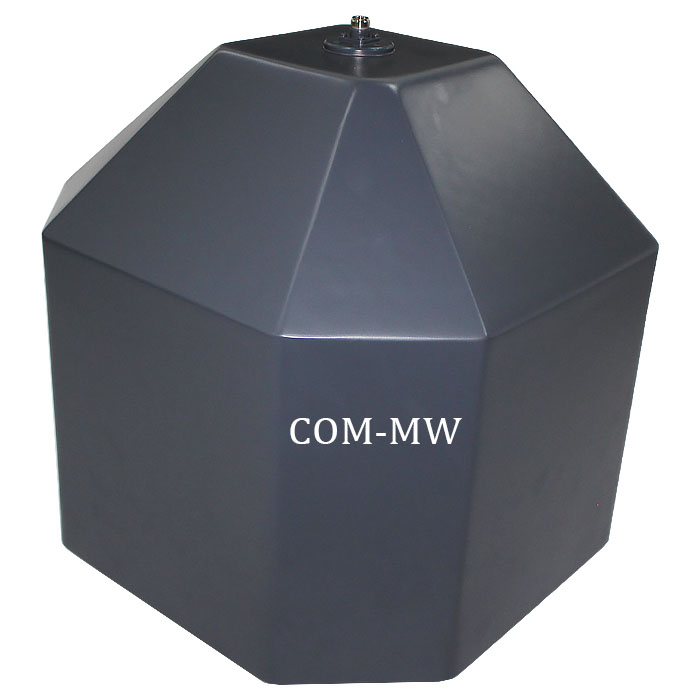

Broadband direction finding array antenna.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency 1 | 300 | ~ | 1600 | MHz |
| Frequency 2 | 1.5 | ~ | 6 | GHz |
| Gain 1 | -5 | dBi | ||
| Gain 2 | -5 | dBi | ||
| 有源驻波比 | 2.5 | |||
| 3dB beamwidth (direction finding antenna E-plane) | 40 | ° | ||
| Switching gain | 8 | dB | ||
| 1.5 | dB | |||
| Thoroughfare ISO | 45 | dB |
| Polarization | Vertical polarization |
| Power Capacity | 0.5W Design assurance |
| Connector | SMA-K测向2个，监测2个，校准1个,GPS1个 |

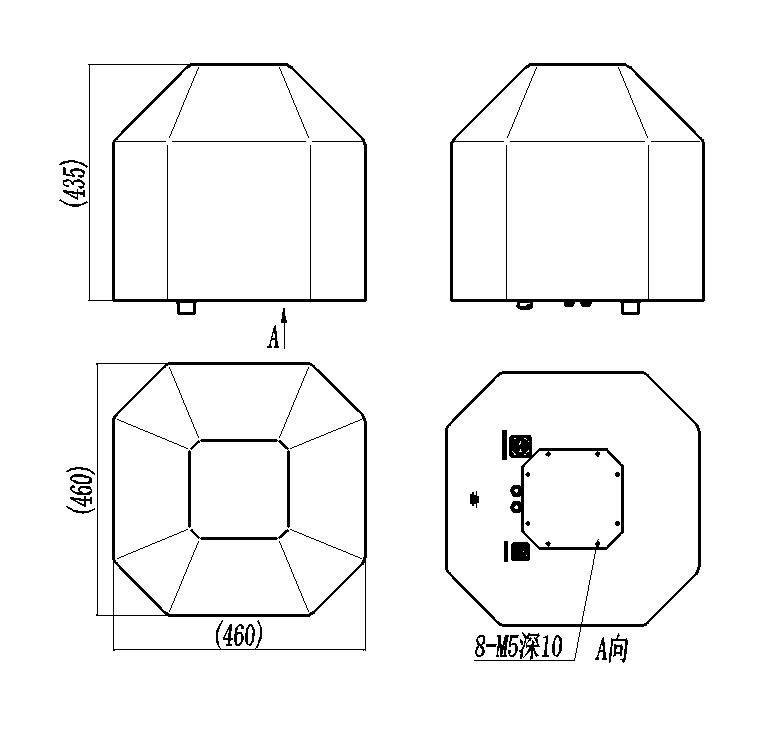

| Outline size | 435*460*460mm without bracket |
| Estimated weight | 7.5Kg |
| Surface | 深灰色（半光），色卡GSB05-1426-2001 71 B01 |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -30~+60℃ Design assurance |
| Other | 供电、控制接口航插，内含电子罗盘 |
