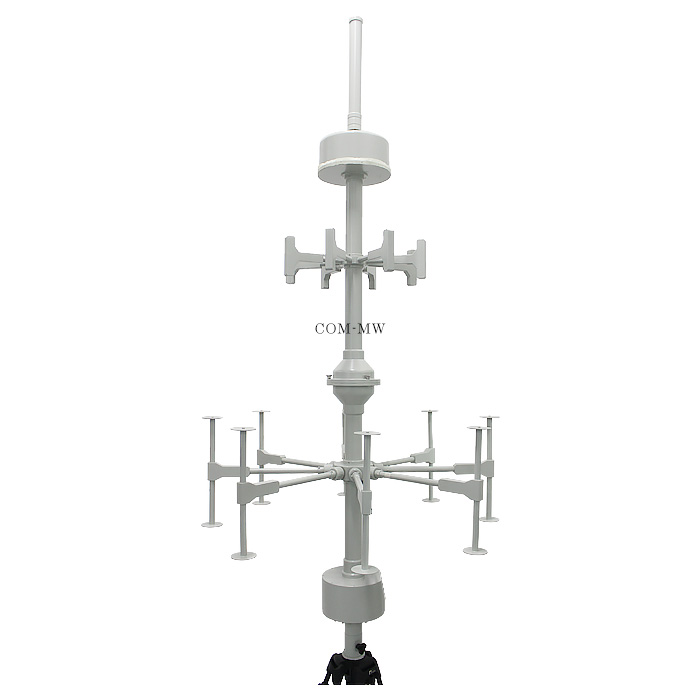

Broadband direction finding array antenna.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency 1 | 300 | ~ | 1000 | MHz @ 8 units |
| Frequency 2 | 1 | ~ | 3 | GHz @ 8 unit |
| Frequency 3 | 3 | ~ | 6 | GHz @ 12 unit |
| Working frequency 4 | 0.3 | ~ | 6 | GHz |
| Gain 1, 2, 3 | -3 | dBi | ||
| Gain 4 | 0 | dBi | ||
| VSWR | 2.5 | |||
| 3dB beamwidth (direction finding antenna E-plane) | 40-80 | ° | ||
| Integrated low noise amplifier gain | 13 | dB | ||
| Integrated low noise amplifier (LNA) noise | 2.5 | dB |
| Polarization | Vertical polarization |
| Connector | SMA-K direction finding 12, transmitting 1 |

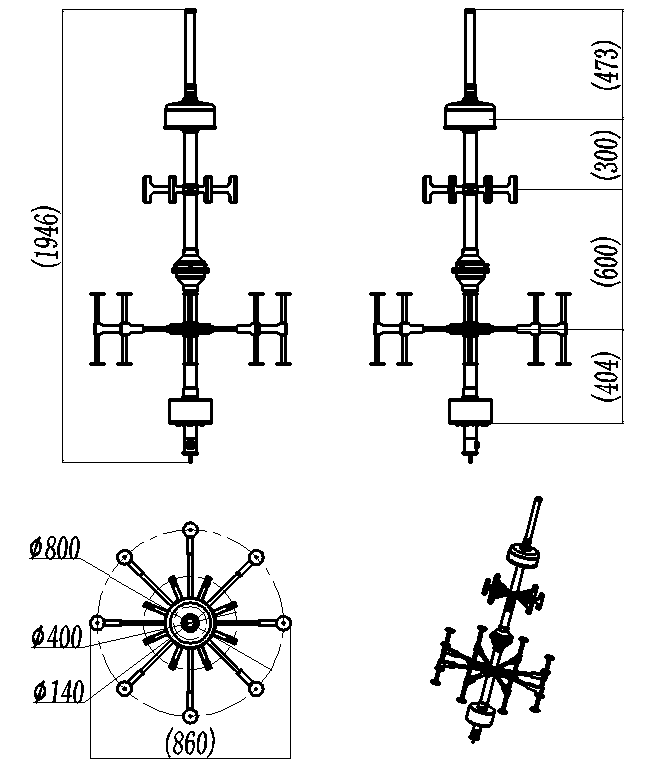

| Outline size | 860*860*1950mm without bracket |
| Estimated weight | 15Kg |
| Surface | RAL7035 Half Light |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -30~+60℃ Design assurance |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
