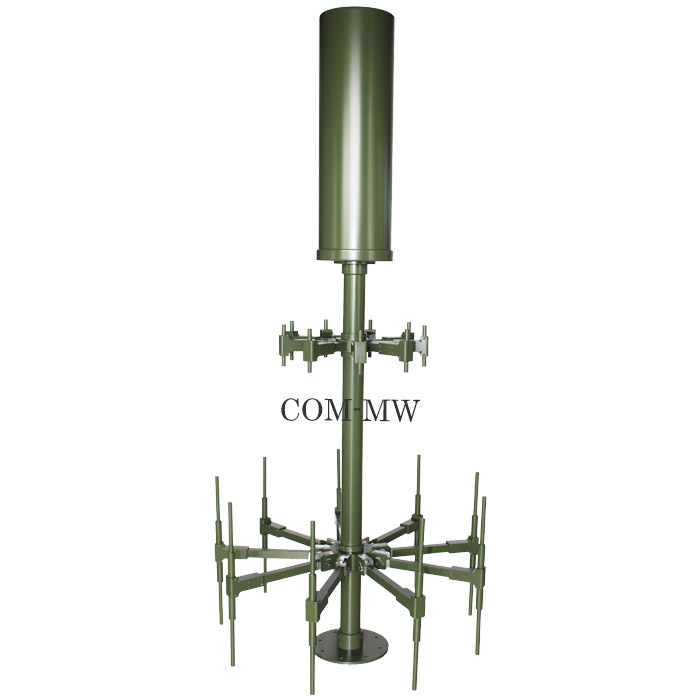

Broadband direction finding array antenna.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Working frequency 1 | 30 | ~ | 700 | MHz |
| Working frequency 2 | 500 | ~ | 3000 | MHz |
| 监测频率 | 30 | ~ | 3000 | MHz |
| Gain 1 | -10 | dBi | ||
| Gain 2 | -5 | dBi | ||
| 监测增益 | -15 | dBi | ||
| VSWR | 3.5 | |||
| 单元幅度一致性 | 1.5 | dB | ||
| 单元相位一致性 | 10 | ° | ||
| Switching gain | 8 | dB | ||
| Noise figure | 5 | dB | ||
| Isolation | 45 | dB | ||
| Switching time | 500 | ns |
| Polarization | Vertical polarization |
| Power Capacity | 0.5W Design assurance |
| Connector | SMA-F @ 4 Way |

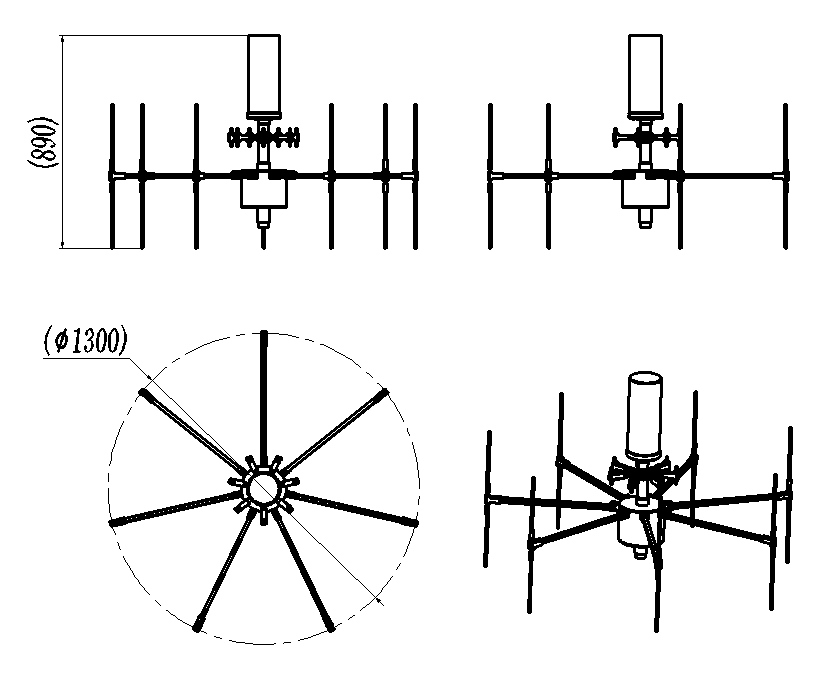

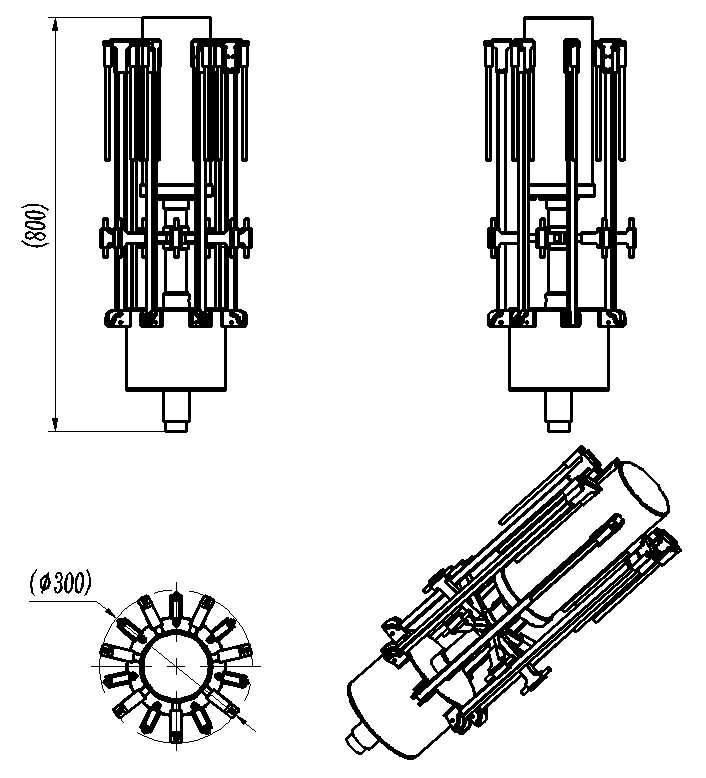

| Expand external dimensions | 1300 * 1300 * 890mm (unfolded) without cable |
| Estimated weight | 8Kg |
| Surface | Green |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+60℃ Design assurance |
| Other | Control mode: RS422 control; Built in electronic compass |
